20A MPPT Solar Charge Controller for LiFePO4 Battery with 300W/12V 600W/24V Power Handling

Name: 20A MPPT Solar Charge Controller for LiFePO4 Battery with 300W/12V 600W/24V Power Handling
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: KF2420
Price: 69.00 USD
Availability: InStock

Brand Name:	KWAFOO
Model Number:	KF2420
MOQ:	1
Price:	USD69.00
Payment Terms:	TT,West Union
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Charging Stage:

6 Stage

Suitable Battery Type:

AGM ,GEL ,WET, Calcium ,Lead Crystal , LTO ,LCO ,LFP ,Customs

Warranty:

2 Years

Maximum Pv Power:

300W/12V , 600W/24V

Color:

Black

Protection:

Overcharging ,short Circuit,reverse Polarity

Dimension:

179X111X58mm

BMS Wake Up:

Yes

Packaging Details:

Brown box

Supply Ability:

5000pcs per month

Highlight:

20A MPPT Solar Charge Controller

LiFePO4 Battery Solar Charge Controller

300W/12V 600W/24V MPPT Solar Charge Controller

Product Description

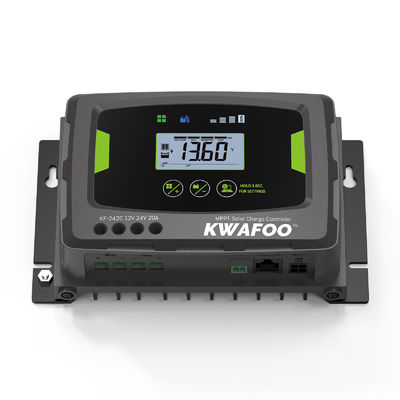

20A MPPT Solar Charge Controller 12V 24V for LiFePO4 Battery

Product Overview

The RV MPPT Solar Charge Controller is a high-efficiency charge controller designed for off-grid solar power systems. With a 20A maximum charging current, it efficiently handles large solar arrays and battery banks while optimizing performance for both Lithium and Lead Acid batteries.

Key Features

Advanced MPPT technology with 99.5% tracking efficiency
Compatible with multiple battery types: AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP
6-stage smart charging algorithm for optimal battery performance
IP43 rated for protection against dust and water splashes
Comprehensive protection: overcharging, undercharging, short circuit, reverse polarity
Wide operating temperature range: -25°C to +50°C
Compact and lightweight design (0.6kg) for easy installation
Optional Bluetooth connectivity available
BMS wake-up function included

Technical Specifications

Display	LCD Display
Maximum Current	20A
System Voltage	12V/24V
Weight	0.6kg
Operating Temperature	-25°C to +50°C
IP Rating	IP43
Charging Stages	6 Stage

Applications

This high-performance solar charge controller is ideal for:

RV and camper solar systems
Marine and boat applications
Off-grid cabins and remote installations
Mobile and portable solar setups

Certifications & Ordering Information

Certified with CE, FCC, and UKCA standards. Available models include KF2420, KF2430, KF2440, and KF2450. Minimum order quantity is 1 unit with delivery within 3 days.

Frequently Asked Questions

What is the brand name of this solar charge controller?

The product is branded as KWAFOO, or available as OEM for bulk orders.

Does it include a temperature sensor cable?

The temperature sensor cable is an optional accessory, similar to the remote display.

What are the available models?

Available models include KF2420 (20A), KF2430 (30A), KF2440 (40A), and KF2450 (50A).
