White Flush Mount RV MPPT Solar Charge Controller with 570W/12V 1140W/24V Power and IP43 Rating

Brand Name:	Melin Sunergy
Model Number:	MT518-40AFM
MOQ:	100
Payment Terms:	TT,West Union
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Color:

White

Mounting:

Flush Mount

Display:

LCD Display

Maximum Pv Power:

570W/12V , 1140W/24V

MPPT Tracking Efficiency:

99.5%

Bluetooth:

Optional

Maximum Current:

40A

Suitable Battery Type:

AGM ,GEL ,WET, Calcium ,Lead Crystal , LTO ,LCO ,LFP ,Customs

Supply Ability:

5000pcs per month

Highlight:

RV MPPT Solar Charge Controller Circuit Diagram

RV MPPT Solar Charge Controller 40A

12V Flush Mount Mppt Solar Charge Controller

Product Description

12V 24V White Flush Mount RV MPPT Solar Charge Controller Circuit Diagram 40A

Product Overview

This efficient and versatile RV Solar Charge Controller features a 40A maximum current, making it compatible with various solar panels and battery types. Its compact design (179×144×76mm, 1.09kg) ensures easy installation in RVs with minimal space requirements.

Key Features

MPPT Tracking Efficiency: 99.5%
LCD + Fashion LED display
BMS Wake Up functionality
Optional Bluetooth connectivity for remote monitoring
Supports lithium battery charging (30A-40A)
Advanced MPPT solar charge controller circuit

Technical Specifications

Product Type	Intelligent MPPT solar controller
Charging Stage	5 Stage
Rated Current	40A
Maximum Input PV Power	580W @ 12V system, 1160W @24V system
System Voltage	12V/24V Auto working
Maximum Input Voltage	100V Voc
Charging Conversion Efficiency	98%
Suitable Battery Types	Lead Acid (AGM, GEL, WET, Calcium, Lead Crystal) and Lithium (LiFePO4, LTO, LCO)
IP Rating	IP43
Dimensions	195×130×70mm
Weight	1090g
Warranty	2 Years

Applications

This CE, FCC, and UKCA certified controller is ideal for:

RV solar power systems
Marine applications
Cabins and off-grid installations
Other solar power systems requiring reliable charge control

Operating temperature range: -25°C to +50°C, making it suitable for various environments.

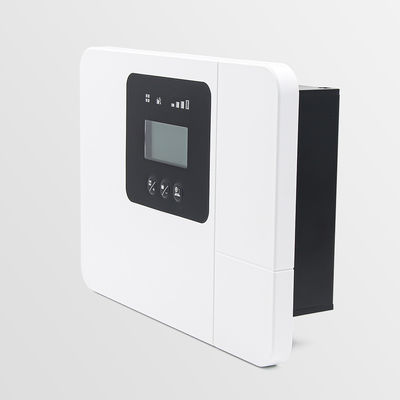

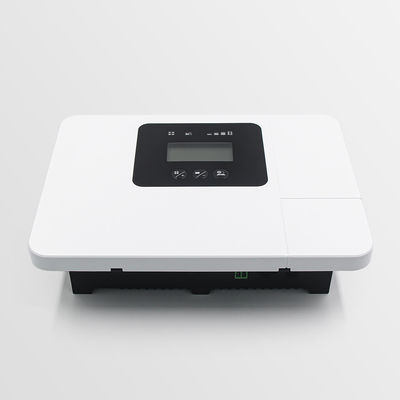

Product Image

Manufactured in China with minimum order quantity of 100 units. Delivery time: 15 days. Payment terms: TT and West Union. Monthly supply capacity: 5000 units.
