RV MPPT Solar Charge Controller
Created with Pixso.

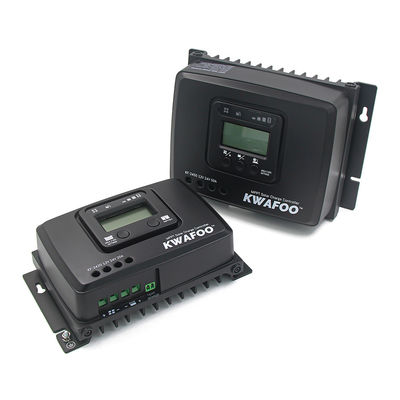

IP43 Small Size 12V 24V 40A MPPT Solar Charge Controller with 9 Types of Battery Setting and 5 Stage Charging

Name

IP43 Small Size 12V 24V 40A MPPT Solar Charge Controller with 9 Types of Battery Setting and 5 Stage Charging

Brand Name: Melin Sunergy
Model Number: MT518-40A
MOQ: 100
Payment Terms: TT,West Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Maximum Input Voltage:
100V
Protection:
Overcharging ,undercharging,shor T Circuit,reverse Polarity
Maximum Pv Power:
570W/12V , 1140W/24V
Warranty:
2 Years
Color:
Black
Dimension:
195X130X70mm
Charging Stage:
5 Stage
Suitable Battery Type:
AGM ,GEL ,WET, Calcium ,Lead Crystal , LTO ,LCO ,LFP ,Customs
Rated Current:
40A
Supply Ability:
5000pcs per month
Highlight:

IP43 RV MPPT Solar Charge Controller

,

40A RV MPPT Solar Charge Controller

,

24V Small MPPT Solar Charge Controller

Product Description
IP43 12V 24V 40A Small RV MPPT Solar Charge Controller With 9 Types Of Battery Setting
Product Description
This compact RV Solar Charge Controller features a maximum PV power of 570W/12V and 1140W/24V, making it ideal for various solar panel systems. Utilizing MPPT technology, this 40A regulator maximizes solar panel performance and system efficiency by extracting optimal power and transferring it to batteries - perfect for off-grid applications.
Designed for durability in temperatures ranging from -25°C to +50°C with temperature compensation, this controller automatically adjusts charging voltage based on battery temperature to enhance performance and extend battery life. Its surface mount design allows flexible installation in multiple locations, including walls or solar panel backs, while the compact size fits easily in tight spaces.
Key Features
  • Product Name: RV Solar Charge Controller
  • Weight: 1.09Kgs
  • System Voltage: 12V/24V Auto working
  • Color: Black
  • Optional Bluetooth connectivity
  • Surface Mount design
  • Solar Voltage Regulator with 40 Amp capacity
Technical Specifications
Product Type Intelligent MPPT solar controller
Charging Stage 5 Stage
Rated Current 40A
Maximum Input PV Power 580W @ 12V system, 1160W @24V system
Maximum Input Voltage 100V Voc
MPPT Tracking Efficiency 99.5%
Charging Conversion Efficiency 98%
Suitable Battery Types Lead Acid (AGM, GEL, WET, Calcium, Lead Crystal) and Lithium (LiFePO4, LTO, LCO) with custom settings
Display LCD + LED display
BMS Wake Up Yes
IP Rating IP43
Dimensions 195×130×70mm
Warranty 2 Years
Applications
The MT518-40A's 40A capacity and 100V input voltage capability make it perfect for larger solar systems in RVs, boats, cabins, and other off-grid applications. Its 5-stage charging ensures safe, rapid battery charging, while the compact 195×130×70mm design fits easily in confined spaces. With simple setup and operation, this controller is an efficient solution for various solar power needs.
