| Brand Name: | Melin Sunergy |
| Model Number: | MT515 |
| MOQ: | 100 |
| Supply Ability: | 5000pcs per month |

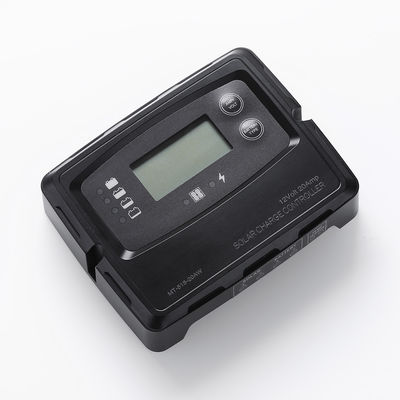

LCD 12V 24V 15A PWM Digital Electric Voltage Solar Regulator For Lead Acid And Lithium Batteries
Measuring at 130X102.6X35mm, this smart solar regulator is compact and easy to install. It can be mounted on a wall or placed on a flat surface, giving you the flexibility to set up your solar panel system wherever you like.
The BMS Wake Up feature of the Digital Solar Charge Controller is a great addition to the product. It allows the controller to automatically wake up the battery management system when it's time to charge, ensuring that your batteries are always ready to go.
With a maximum PV power of 285W at 12V and 570W at 24V, this solar power voltage regulator can handle a decent amount of solar panel power. This makes it suitable for small to medium-sized solar power systems, whether you're using it for your RV, boat, or cabin.
The Digital Solar Charge Controller is a reliable and efficient way to regulate the power coming from your solar panels. It ensures that your batteries are charged safely and efficiently, prolonging their lifespan and keeping your solar power system running smoothly.
| Item No. | MT515-15A |
| Rated Current | 15A |
| Max. Solar Power Input | 285W@12V system , 570W @24 |
| Norminal Solar Input Voltage | 15~44V DC |
| Max. Solar Input Voltage | 50V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP22 or IP67 |
| Mounting method | Wall mount |
| Size | 130X102.6X35mm |
| Weight | 250g |
| Operation Temperature | -25~50℃/-13~122℉ |
| Storage Temperature | -40~85℃/-40~185℉ |
Melin Sunergy MT515 Digital Solar Charge Controller is a smart solar regulator that is designed to efficiently charge a wide range of batteries, including AGM, GEL, WET, Calcium, LiFePO4, and LTO. This electric voltage solar regulator is manufactured in China and comes with CE, FCC, and UKCA certifications, ensuring its quality and safety.
With a rated current of 15A, this smart solar regulator can handle a maximum PV power of 285W at 12V and 570W at 24V, making it suitable for a variety of solar applications. The BMS Wake Up feature ensures that the charge controller can wake up the battery from sleep mode, making it even more efficient.
The MT515 Digital Solar Charge Controller has an IP22 or IP67 rating, which makes it resistant to dust and water ingress, allowing it to be used in harsh environments. It is a perfect choice for off-grid applications such as cabins, RVs, and boats.
Whether you need a solar charge controller for a small or large solar power system, the MT515 Digital Solar Charge Controller is an excellent choice. It is available for a minimum order quantity of 100 and has a delivery time of 25 days. With a supply ability of 5000pcs per month, you can be sure that you will always have access to this high-quality solar charge controller.
Overall, the Melin Sunergy MT515 Digital Solar Charge Controller is a reliable and efficient smart solar regulator that can handle a wide range of batteries and solar applications. Its IP rating, BMS Wake Up feature, and certifications make it an excellent choice for anyone looking for a high-quality solar charge controller.
