| Brand Name: | Melin Sunergy |
| Model Number: | MT505 |
| MOQ: | 100 |
| Price: | USD85~USD105 per piece |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 5000pcs per month |
60A 12V 24V PWM Digital Solar Charge Controller With Remote Display
【Introduction】
MT505-60A pwm solar charge controller is a 12v 24v auto working solar charge controller with digital LCD display . It can protect
the battery from over charging and block the reverse charging from battery to solar panel at night time . With 5 stage charging technology, can help to maintain the battery with longer life . Suits for AGM , Gel , WET , Calcium Lead acid batteries , LTO & LiFePO4 lithium battery on Marine ,Boat and Caravan etc..
【Features】
【Suits for lead acid batteries AGM /GEL/WET and Lithium battery LiFePO4】
【Compact small size and Weight 980g only】
【Specification 】
| Item No. | MT505-60A |
| Rated Current | 60A |
| Max. Solar Power Input | 2280W |
| Norminal Solar Input Voltage | 15~50V DC |
| Max. Solar Input Voltage | 50V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP65 |
| Mounting method | Wall mount |
| Size | 182X103X50mm |
| Weight | 980g |
| Operation Temperature | -25~50℃/-13~122℉
|
| Storage Temperature | -40~85℃/-40~185℉ |

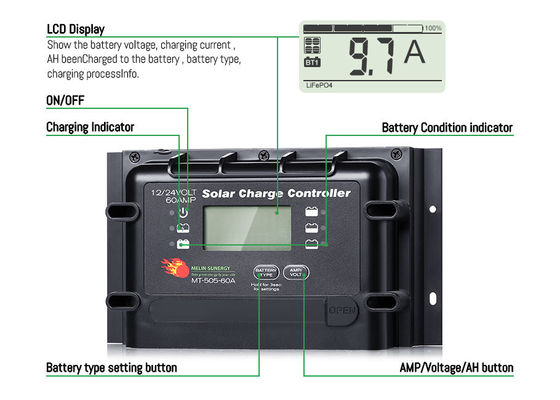

【LCD + LED Display 】
