products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

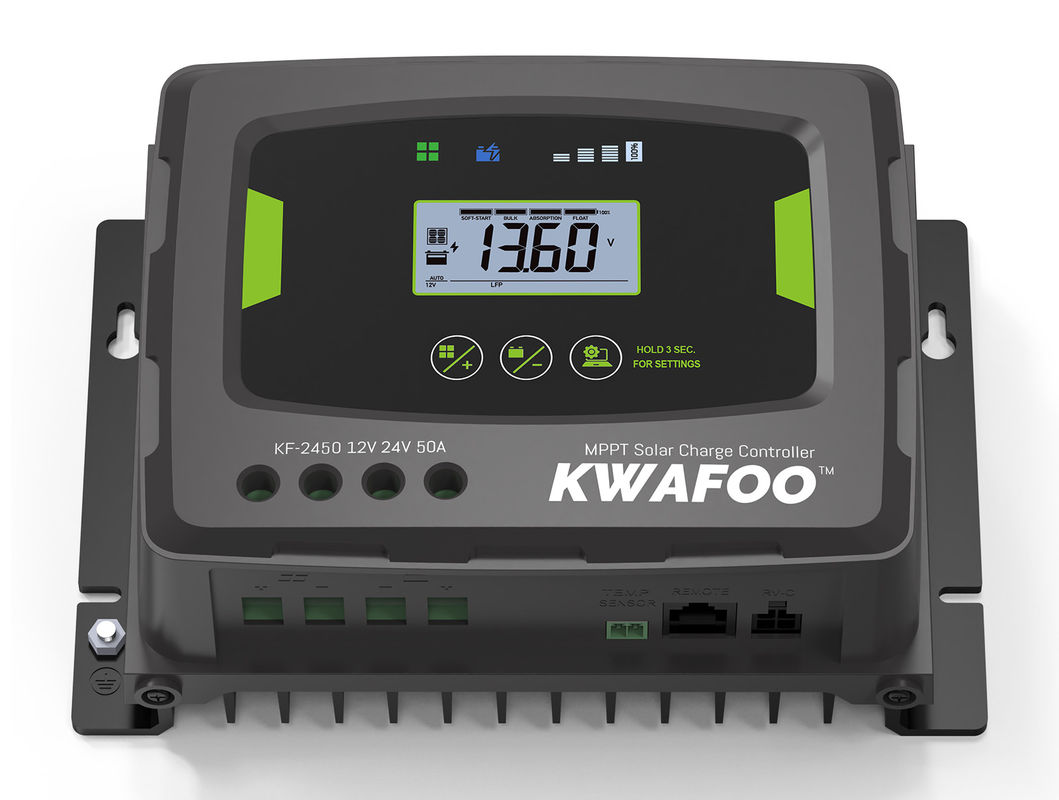

Black MPPT Solar Charge Controller with 99.5% Tracking Efficiency and Temperature Compensation for RVs

Name

Black MPPT Solar Charge Controller with 99.5% Tracking Efficiency and Temperature Compensation for RVs

Brand Name: Melin Sunergy
Model Number: KF2450
MOQ: 1PC
Price: USD119.90
Payment Terms: TT,West Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Mounting:
Wall Mount
Display:
LCD Display
Charging Stage:
6 Stage
Maximum Input Voltage:
100V
Dimension:
179X144X76mm
Weight:
1.09Kgs
Ip Level:
IP43
Color:
Black
Packaging Details:
Brown box
Supply Ability:
5000pcs per month
Highlight:

Black MPPT Solar Charge Controller

,

99.5% Tracking Efficiency Solar Charge Controller

,

Temperature Compensation Solar Charge Controller

Product Description
24V/12V 50A MPPT Solar Charge Controller with Max. Solar Input 100V
Product Overview

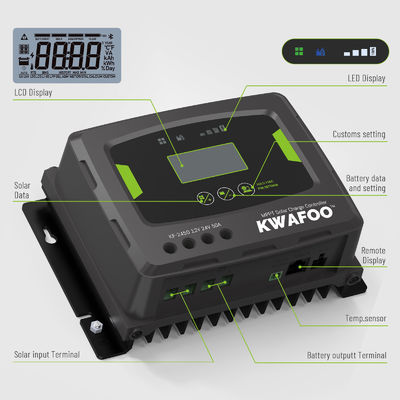

The RV MPPT Solar Charge Controller is a high-performance 50A MPPT solar controller designed for efficient solar power management in RVs, off-grid systems, and other solar applications. Featuring temperature compensation (optional sensor cable required), this controller ensures optimal charging performance across varying environmental conditions.
Key Features
  • Advanced MPPT technology with 99.5% tracking efficiency
  • Maximum PV input: 700W/12V or 1400W/24V systems
  • 6-stage smart charging algorithm for battery longevity
  • BMS wake-up capability included
  • Wide operating temperature range: -25°C to +50°C
  • Compact and lightweight design (1.29kg)
  • Clear LCD display for real-time system monitoring
Technical Specifications
Parameter Specification
Maximum Current 50A
Mounting Type Wall Mount
Protection Features Overcharging, short circuit, reverse polarity, reverse charging at night
Temperature Compensation Yes (sensor cable optional)
Dimensions 179 × 144 × 76mm
Maximum Input Voltage 100V
Battery Compatibility AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP, Custom
Applications
This versatile MPPT solar charge controller is ideal for:
  • RV and marine power systems
  • Off-grid solar installations
  • Cabin and remote power solutions
  • Solar-powered backup systems
Product Models & Specifications
Available in multiple configurations to suit different system requirements:
  • KF2420 (20A 12V/24V)
  • KF2430 (30A 12V/24V)
  • KF2440 (40A 12V/24V)
  • KF2450 (50A 12V/24V)
Certifications & Order Information
Certifications: CE, FCC, UKCA
Manufacturing Origin: China
Minimum Order Quantity: 1 unit
Packaging: Sturdy brown box
Delivery Time: Typically 15 days
Payment Terms: TT, West Union
Monthly Supply Capacity: 5000 units
Frequently Asked Questions
Q: What is the brand of this solar charge controller?
A: The brand is KWAFOO. OEM services are available for bulk orders.
Q: What battery types are compatible?
A: Compatible with AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP, and custom battery types.
Q: What protection features does it include?
A: Comprehensive protection against overcharging, undercharging, short circuits, and reverse polarity.
