products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

6 Stage Charging MPPT Solar Charge Controller with 99.5% Tracking Efficiency and Maximum PV Power 440W/12V 880W/24V

Name

6 Stage Charging MPPT Solar Charge Controller with 99.5% Tracking Efficiency and Maximum PV Power 440W/12V 880W/24V

Brand Name: KWAFOO
Model Number: KF2430
MOQ: 1
Price: USD78.00
Payment Terms: TT,West Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Temperature Compensation:
Yes
Warranty:
2 Years
Weight:
1.09Kgs
Maximum Pv Power:
440W/12V , 880W/24V
BMS Wake Up:
Yes
Mounting:
Wall Mount
Charging Stage:
6 Stage
Ip Level:
IP43
Packaging Details:
Brown box
Supply Ability:
5000pcs per month
Highlight:

6 Stage Charging MPPT Solar Charge Controller

,

99.5% Tracking Efficiency Solar Charge Controller

,

Maximum PV Power 440W/12V 880W/24V Solar Charge Controller

Product Description

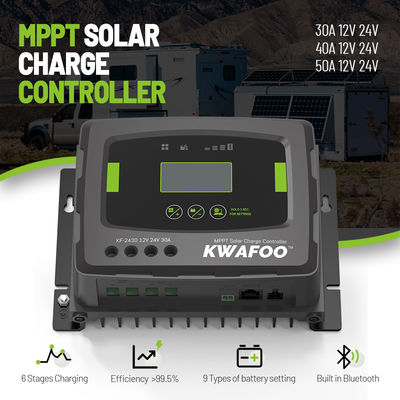

6 Stage Charging MPPT 30A Solar Charge Controller
Product Overview
The RV MPPT Solar Charge Controller is a high-performance 12V/24V solar power management solution. With 99.5% MPPT tracking efficiency, it maximizes power conversion from solar panels while offering advanced battery protection and management.
Key Features
  • 30A MPPT solar controller with 6-stage charging
  • 99.5% MPPT tracking efficiency for optimal performance
  • BMS wake-up function for battery management

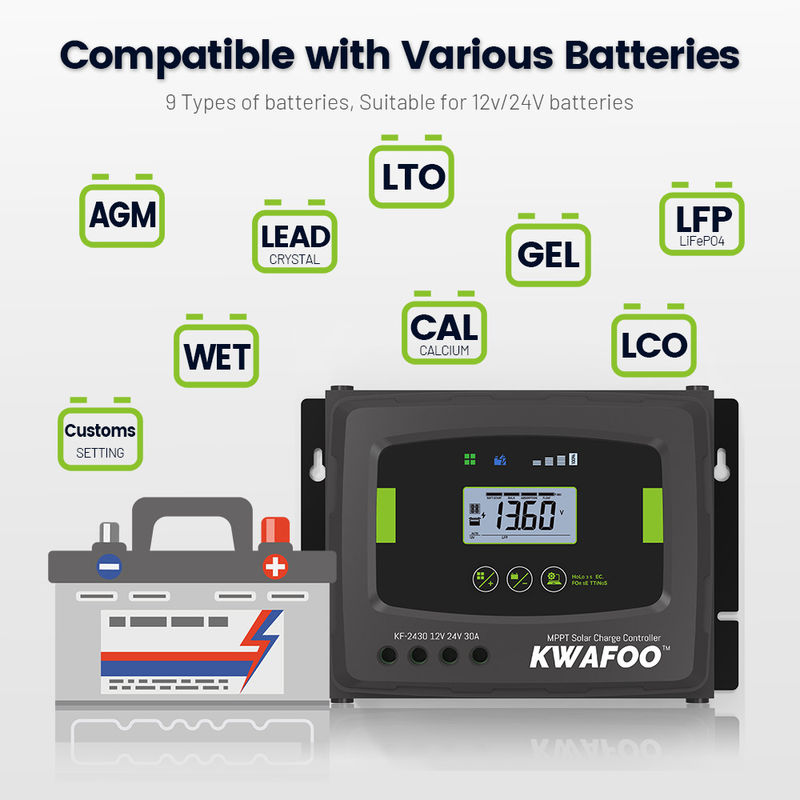

  • Supports multiple battery types: AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP
  • IP43 rated for dust and water resistance
  • LCD display with real-time monitoring
  • Built-in Bluetooth connectivity
  • Robust protection: overcharging, short circuit, reverse polarity
Technical Specifications
Parameter Specification
Charging Stage 6 Stage
Mounting Wall Mount
MPPT Tracking Efficiency 99.5%
Display LCD Display
Protection Overcharging, short circuit, reverse polarity
Maximum PV Power 440W/12V, 880W/24V
Dimensions 179×144×76mm
Temperature Compensation Yes
Weight 1.09kg
Maximum Current 30A
Operating Temperature -25°C to +50°C
Applications
Ideal for RV, camper, boat, and off-grid solar power systems. Available in models KF2420, KF2430, KF2440, and KF2450 to suit various power requirements.
Certifications & Ordering
Certified with CE, FCC, and UKCA standards. Minimum order quantity of 1 unit with delivery in 3 days for small orders. Payment options include TT and West Union.
Frequently Asked Questions
Q: What is the brand of this RV MPPT Solar Charge Controller?
A: The brand is KWAFOO or available for OEM Branding.
Q: What data is displayed on the LCD?
A: The LCD displays solar input data (wattage, voltage, current), battery voltage, charging current, amp-hour data, and charging status information.
Q: What certifications does this product have?
A: This product is certified with CE, FCC, and UKCA standards.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 unit.
