products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

40A RV MPPT Solar Charge Controller with 570W/12V 1140W/24V Output and 2 Years Warranty

Name

40A RV MPPT Solar Charge Controller with 570W/12V 1140W/24V Output and 2 Years Warranty

Brand Name: KWAFOO
Model Number: KF2440
MOQ: 1
Price: USD99.00
Payment Terms: TT,West Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Suitable Battery Type:
AGM ,GEL ,WET, Calcium ,Lead Crystal , LTO ,LCO ,LFP ,Customs
Maximum Pv Power:
570W/12V , 1140W/24V
Warranty:
2 Years
Bluetooth:
Optional
Mounting:
Wall Mount
Maximum Input Voltage:
100V
Weight:
1.09Kgs
BMS Wake Up:
Yes
Packaging Details:
Brown box
Supply Ability:
5000pcs per month
Highlight:

570W/12V RV MPPT Solar Charge Controller

,

1140W/24V MPPT Solar Charge Controller

,

2 Years Warranty Solar Charge Controller

Product Description

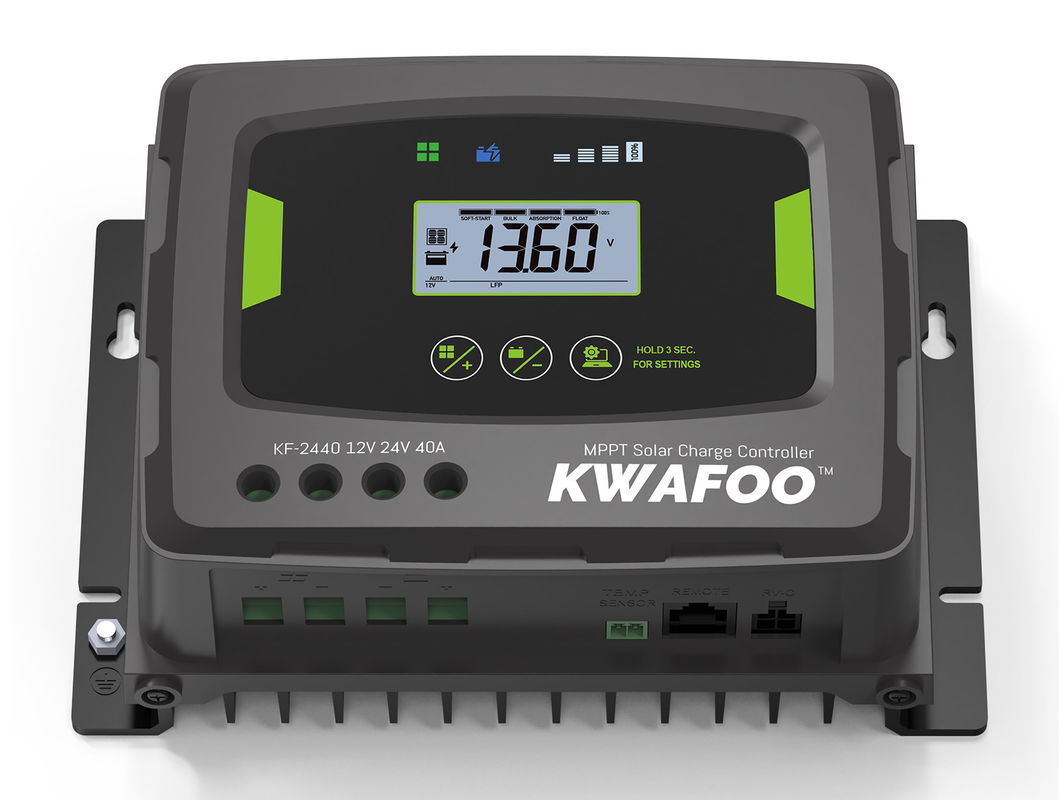

RV 40A MPPT Solar Charge Controller for Lead Acid and Lithium Batteries
Product Description
The KWAFOO 40A MPPT solar controller features a wall-mount design for easy installation and space efficiency. Engineered with comprehensive protection mechanisms including overcharging, short circuit, and reverse polarity protection, it ensures solar system safety.
Operating in temperatures from -25°C to +50°C, this controller delivers consistent performance in varying weather conditions. The integrated LCD display provides real-time monitoring of critical system parameters for optimal solar system management.
Utilizing advanced Maximum Power Point Tracking (MPPT) technology, this controller maximizes solar panel efficiency for superior energy harvest and overall system performance. Available in multiple amperage ratings to meet diverse power requirements.
Key Features
  • Product Name: 40A Digital MPPT Solar Charge Controller
  • Weight: 1.09 kg
  • System Voltage: 12V/24V
  • Dimensions: 179 × 144 × 76 mm
  • Charging Stage: 6 Stage
  • Maximum Input Voltage: 100V
Technical Specifications
Parameter Value
Charging Stage 6 Stage
IP Level IP43
Color Black
System Voltage 12V/24V
Maximum Current 40A
Temperature Compensation Yes
BMS Wake Up Yes
Protection Features Overcharging, short circuit, reverse polarity
Warranty 2 Years
Display LCD
Applications
The Melin Sunergy KWAFOO RV MPPT Solar Charge Controller is designed for various applications including RVs, campers, and off-grid cabins. Available in models KF2420, KF2430, KF2440, and KF2450 to suit different solar power system requirements.
Manufactured in China with CE, FCC, and UKCA certifications, this controller meets international safety and performance standards. The wall-mount design and IP43 protection level make it ideal for outdoor installations.
Minimum order quantity is 1 unit, packaged in protective brown boxes. Delivery time is approximately 15 days with flexible payment options including TT and West Union. Monthly production capacity of 5000 units ensures reliable supply.
Frequently Asked Questions
Q: Could you make this controller with other logo?
A: Yes, we accept OEM branding for bulk orders.
Q: What are the available models for the RV MPPT Solar Charge Controller?
A: Available models are KF2420, KF2430, KF2440, and KF2450.

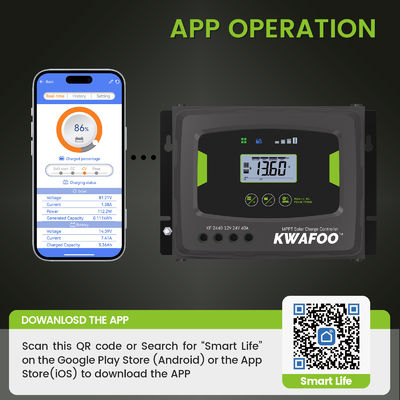

Q: Does it have built-in Bluetooth?
A: Yes, the KWAFOO MPPT Solar Charge Controller includes Bluetooth functionality.
Q: What certifications does the RV MPPT Solar Charge Controller have?
A: The product is certified with CE, FCC, and UKCA.
Q: What are the payment terms for purchasing the RV MPPT Solar Charge Controller?
A: Accepted payment methods include TT (Telegraphic Transfer) and West Union.
