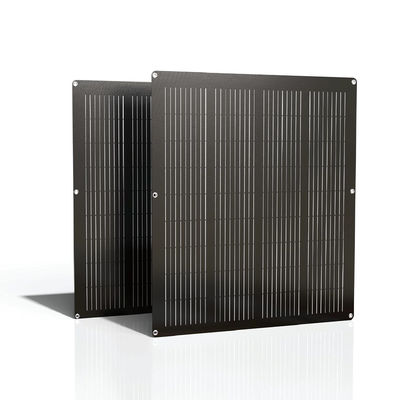

Bendable Up To 30 Degrees Semi Flexible Solar Panel with 5 Years Warranty and 20W~500W Power Output

Brand Name:	Melin Sunergy
Model Number:	MTSF-105
MOQ:	100
Payment Terms:	TT,West Union
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Power Output:

20W~500W

Weight:

Lightweight

Other Name:

Bendable PV Modules

Warranty:

5 Years

Box:

IP 67

Coating Material:

ETFE

Output Terminal:

MC4

Solar Cell:

Monocrystalline Silicon Cells

Packaging Details:

1pc/box

Supply Ability:

5000pcs per month

Highlight:

Marine Semi Flexible Solar Panel

Semi Flexible Solar Panel 120W

Bendable PV Flexible Solar Panels

Product Description

Marine Semi Flexible Solar Panel 120W IP67 Bendable PV Flexible Solar Panels

Product Description

Featuring a unique design that makes it both lightweight and highly flexible, this walkable semi-flexible solar panel offers a convenient and easy-to-install solution for all your energy needs. With power output ranging from 20W to 500W, this versatile solar panel delivers reliable performance in challenging environments including extreme temperatures, high winds, and heavy rain.

Key Features

Product Name: Semi Flexible Solar Panel
Protection Rating: IP67
Power Output: 20W~500W
Flexibility: Bendable up to 30 degrees
Solar Cell: High-efficiency monocrystalline silicon cells
Application: Suitable for curved surfaces and irregular shapes
Output Terminal: MC4 connectors

Technical Specifications

Model #	MTSF-100W	MTSF-120W	MTSF-200W
Pmax	100W	120W	200W
Vmax	20V	20V	20V
Imax	5A	6A	10A
Voc	24V	24V	24V
Isc	5.25A	6.30A	10.5A
Solar Cell Type	High Efficiency A Grade Monocrystalline solar cell
Cell Efficiency	22%
Size	900×595×3mm	700×900×3mm	900×1130×3mm
Weight	3.8kg	4.3kg	7.0kg

Applications

The MTSF series semi-flexible solar panels are ideal for marine, RV, and vehicle applications. Their lightweight design (3.8-7.0kg) and 30-degree bendability make them perfect for installation on curved surfaces like boat decks, vehicle roofs, and irregular structures. The IP67 rating ensures protection against harsh marine environments.

Certifications: CE, FCC, UKCA
Warranty: 5 years
Standard Test Conditions: 1000W/m², 25℃, AM1.5
