20W~500W Power Output IP67 Waterproof MC4 Output Terminal Semi Flexible Solar Panel Bendable PV Modules

20W~500W Power Output IP67 Waterproof MC4 Output Terminal Semi Flexible Solar Panel Bendable PV Modules

Brand Name:	Melin Sunergy
Model Number:	MTSF-105
MOQ:	100
Payment Terms:	TT,West Union
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Cell Number:

36 Pcs

Installation:

Belt Fixing Or Glue Fixing

Flexibility:

Bendable Up To 30 Degrees

Warranty:

5 Years

Power Output:

20W~500W

Coating Material:

ETFE

Weight:

Lightweight

Output Terminal:

MC4

Packaging Details:

1pc/box

Supply Ability:

5000pcs per month

Highlight:

120 Watt Flexible Solar Panel Sheets

Lightweight Flexible Solar Panel Sheets

Product Description

120 Watt Lightweight Flexible Solar Panel Sheets 20W - 500W Flexible Solar Charger

Product Description

Our Semi Flexible Solar Panel comes with a 5-year warranty, ensuring your investment in high-quality renewable energy technology. Available in power outputs ranging from 20W to 500W to match various energy requirements.

The ETFE coating material provides superior durability and weather resistance, making these panels ideal for outdoor applications. The self-cleaning ETFE surface reduces maintenance needs while maintaining optimal performance.

These lightweight, flexible panels are perfect for RVs, boats, and off-grid installations, combining sleek design with advanced solar technology for efficient energy harvesting.

Key Features

Product Name: Semi Flexible Solar Panel
Flexibility: Bendable Up To 30 Degrees
Other Name: Bendable PV Modules
Box: IP 67 Protection
Warranty: 5 Years
Installation Options: Belt Fixing or Glue Fixing

Technical Specifications

Model #	MTSF-100W	MTSF-120W	MTSF-200W
Pmax	100W	120W	200W
Vmax	20V	20V	20V
Imax	5A	6A	10A
Voc	24V	24V	24V
Isc	5.25A	6.30A	10.5A
Common Specifications:
Solar Cell Type	High Efficiency A Grade Mono Crystalline solar cell
Cell Efficiency	22%
Size	900×595×3mm	700×900×3mm	900×1130×3mm
Material	ETFE +EVA+Composite Film+EVA+Solar Cell+EVA+Composite Film+EVA+TPT
Output Port	MC4 connect
Water Proof Rate	IP67
Warranty	5 Years
STC	1000W/m², 25℃, AM1.5
Weight	3.8Kgs	4.3Kgs	7.0Kgs

Applications

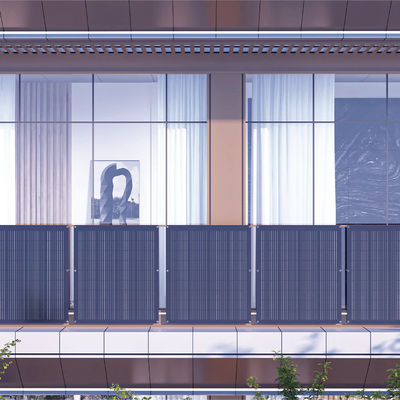

Balcony solar systems with easy installation
Caravan/Car roof solar charging systems
Marine and boat battery charging applications
