30 Degree Curvature IP67 Waterproof 5-Year Warranty Semi Flexible Solar Panel for Caravans

30 Degree Curvature IP67 Waterproof 5-Year Warranty Semi Flexible Solar Panel for Caravans

Brand Name:	Melin Sunergy
Model Number:	MTSF-105
MOQ:	100
Payment Terms:	TT,West Union
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Installation:

Belt Fixing Or Glue Fixing

Application:

Suitable For Curved Surfaces And Irregular Shapes

Output Terminal:

MC4

Curvature:

30 Degree

Power Output:

20W~500W

Box:

IP 67

Cell Number:

36 Pcs

Solar Cell:

Monocrystalline Silicon Cells

Packaging Details:

1pc/box

Supply Ability:

5000pcs per month

Highlight:

100w Semi Flexible Solar Panel

Semi Flexible Solar Panel 12V

MC4 Flexible Solar Panels For Caravans

Product Description

100W Semi Flexible Solar Panel 12V MC4 Output Flexible Solar Panels For Caravans

Product Overview

Our semi-flexible solar panel features a 9-layer construction for enhanced durability and longevity. The ETFE material coating provides superior sunlight absorption, delivering higher efficiency than traditional solar panels. With a 120W power output, this panel is ideal for powering devices and appliances during outdoor activities. Backed by a 5-year warranty, it offers reliable renewable energy while reducing electricity costs and environmental impact.

Key Features

Product Type: Semi Flexible Solar Panel
Maximum Curvature: 30 Degrees
Lightweight Design for Easy Transport
Power Output Range: 20W-500W
MC4 Output Terminal for Easy Connectivity
Durable ETFE Coating Material
Ideal for camping, hiking, RV, and marine applications

Technical Specifications

Model #	MTSF-100W	MTSF-120W	MTSF-200W
Pmax	100W	120W	200W
Vmax	20V	20V	20V
Imax	5A	6A	10A
Voc	24V	24V	24V
Isc	5.25A	6.30A	10.5A
Solar Cell Type	High Efficiency A Grade Mono Crystalline solar cell
Cell Efficiency	22%

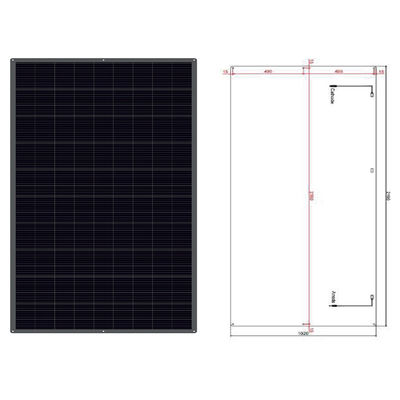

Size	900×595×3mm	700×900×3mm	900×1130×3mm
Material Composition	ETFE +EVA+Composite Film+EVA+Solar Cell+EVA+Composite Film+EVA+TPT
Output Port	MC4 connector
Waterproof Rating	IP67
Warranty	5 Years
STC	1000W/m², 25℃, AM1.5
Weight	3.8Kgs	4.3Kgs	7.0Kgs

Applications

Our high-efficiency monocrystalline solar panels with durable ETFE coating are perfect for marine environments, RVs, and outdoor applications. The IP67 waterproof rating ensures reliable performance in harsh conditions. Certified with CE, FCC, and UKCA standards, these panels meet international safety requirements.

Available for bulk orders with flexible payment options and fast delivery. Contact us for purchasing information or to learn more about our product line.
