products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

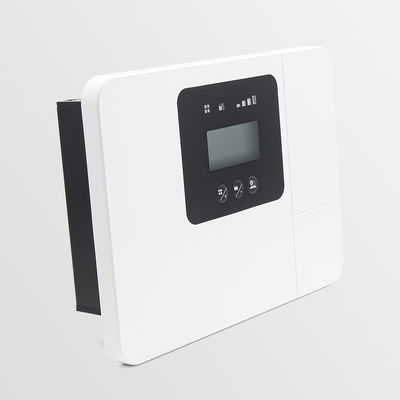

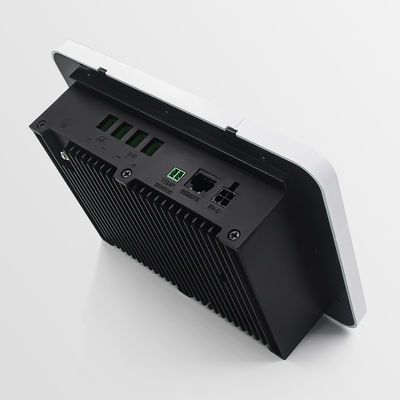

White RV MPPT Solar Charge Controller with 99.5% Tracking Efficiency and 570W/12V 1140W/24V Maximum PV Power

Name

White RV MPPT Solar Charge Controller with 99.5% Tracking Efficiency and 570W/12V 1140W/24V Maximum PV Power

Brand Name: Melin Sunergy
Model Number: MT518-40AFM
MOQ: 100
Payment Terms: TT,West Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Temperature Compensation:
Yes
Maximum Pv Power:
570W/12V , 1140W/24V
Color:
White
Bluetooth:
Optional
MPPT Tracking Efficiency:
99.5%
Maximum Current:
40A
Display:
LCD Display
Maximum Input Voltage:
100V
Supply Ability:
5000pcs per month
Highlight:

30A RV MPPT Solar Charge Controller

,

Bluetooth RV MPPT Solar Charge Controller

,

40A MPPT Solar Controller For Lithium Battery

Product Description
White 30A - 40A Bluetooth RV MPPT Solar Charge Controller For Lithium Battery
Product Description

This high-efficiency white RV MPPT solar charge controller features advanced Maximum Power Point Tracking (MPPT) technology to extract maximum power from solar panels, even in low-light conditions. Designed for systems up to 40A, it provides reliable power for most RV setups.

The controller supports multiple battery types including AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP, and custom configurations. Its compatibility with both 12V and 24V systems makes it versatile for various RV applications.

Built with durable components and backed by a 2-year warranty, this controller withstands demanding RV travel conditions while providing efficient solar charging through its optional Bluetooth module.

Key Features
  • Product Name: RV Solar Charge Controller
  • Color: White
  • System Voltage: 12V/24V
  • Dimension: 179×144×76mm
  • Maximum Input Voltage: 100V
  • Charging Stage: 5 Stage
Technical Specifications
Product Name Flush Mount Lithium battery charging 30A-40A solar charge controller
Product Type Intelligent MPPT solar controller
Charging Stage 5 Stage
Rated Current 40A
Maximum Input PV Power 580W @ 12V system, 1160W @24V system
System Voltage 12V/24V Auto working
Maximum Input Voltage 100V Voc
MPPT Tracking Efficiency 99.5%
Charging Conversion Efficiency 98%
Suitable Battery Type Lead Acid Batteries: AGM, GEL, WET, Calcium, Lead Crystal
Lithium Batteries: LiFePO4, LTO, LCO
Customs setting
Display LCD + Fashion LED display
BMS Wake Up Yes
Bluetooth Included
IP Level IP43
Size 195×130×70mm
Weight 1090g
Warranty 2 Years
Applications

This controller features temperature compensation for optimal battery charging and comprehensive protection against overcharging, undercharging, short circuits, and reverse polarity. The Melin Sunergy MT518-40AFM model provides efficient 30A-40A charging with reliable MPPT technology for maximum power utilization.
