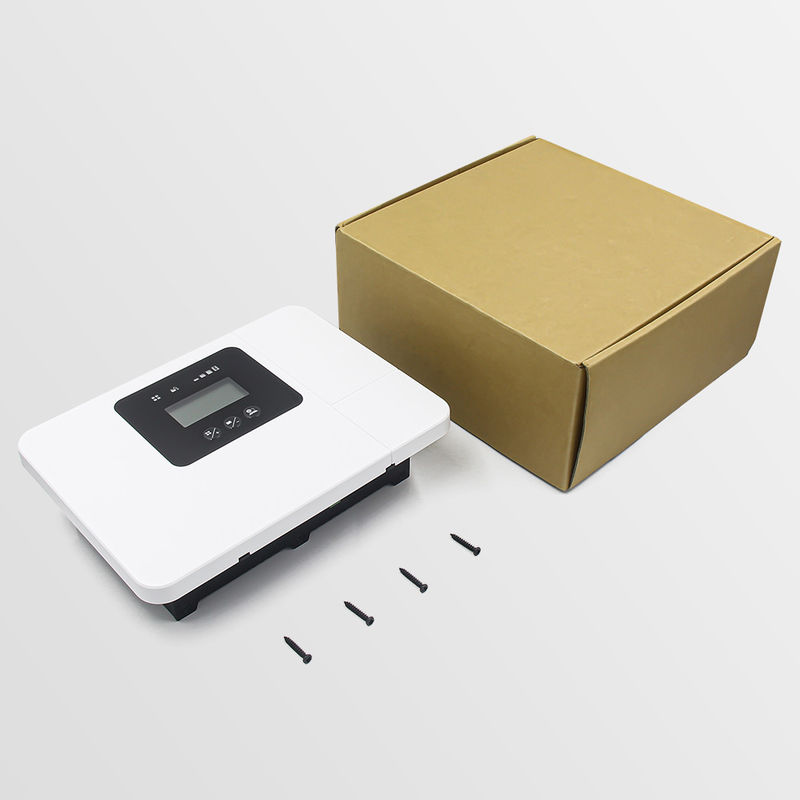

Flush Mount MPPT Solar Charge Controller 40A 12V/24V Auto with 1140W Max PV Input for RV

Name

Flush Mount MPPT Solar Charge Controller 40A 12V/24V Auto with 1140W Max PV Input for RV

Brand Name: Melin Sunergy
Model Number: MT518-40AFM
MOQ: 100
Payment Terms: TT,West Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Work Temperature:
-25~+50 Degree
Suitable Battery Type:
AGM ,GEL ,WET, Calcium ,Lead Crystal , LTO ,LCO ,LFP ,Customs
Dimension:
179X144X76mm
Weight:
1.09Kgs
Color:
White
Display:
LCD Display
Maximum Pv Power:
570W/12V , 1140W/24V
Maximum Input Voltage:
100V
Rated Current:
40A
Supply Ability:
5000pcs per month
Highlight:

12V MPPT Charge Controller For RV

,

24V MPPT Charge Controller For RV

,

Flush Mount 40A Solar Charge Controller

Product Description
Flush Mount 12V 24V 40A MPPT Charge Controller For RV Max. PV Input 1140W
Product Description
Featuring an LCD display, this RV Solar Charge Controller allows easy monitoring of charging status with critical information like battery voltage, input voltage, and charging current. The 40A MPPT controller uses advanced technology for maximum power point tracking, extracting optimal power from solar panels even in low-light conditions.
With a maximum input voltage of 100V, it supports various solar panel configurations. The optional Bluetooth feature enables remote monitoring and adjustment via smartphone or tablet. Backed by a 2-year warranty, this durable controller delivers reliable performance for solar charging systems.
Key Features
  • MPPT Tracking Efficiency: 99.5%
  • Operating Temperature: -25°C to +50°C
  • 5-Stage Charging Process
  • Clear LCD Display
  • Comprehensive Protection: Overcharging, undercharging, short circuit, reverse polarity
  • Bluetooth Connectivity (Included)
Technical Specifications
Parameter Specification
Product Type Intelligent MPPT Solar Controller
Rated Current 40A
Max PV Input Power 580W @12V, 1160W @24V
System Voltage 12V/24V Auto
Max Input Voltage 100V Voc
Charging Efficiency 98%
Battery Compatibility Lead Acid (AGM, GEL, WET, Calcium, Lead Crystal) and Lithium (LiFePO4, LTO, LCO)
Display LCD + LED
BMS Wake Up Yes
IP Rating IP43
Dimensions 195×130×70mm
Weight 1090g
Warranty 2 Years
Applications
Ideal for RVs, caravans, and mobile homes, the MT518-40AFM controller efficiently manages solar charging systems. With temperature compensation and 5-stage charging, it protects batteries while delivering maximum power. Suitable for small to medium solar installations with PV configurations up to 570W (12V) or 1140W (24V).
