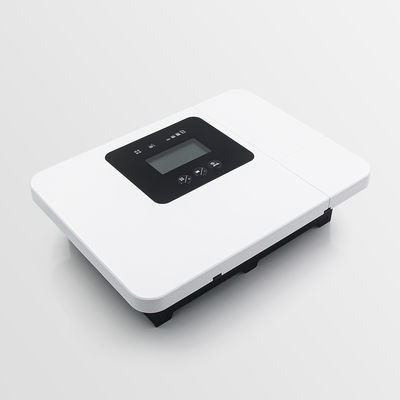

40 Amp RV MPPT Solar Charge Controller with 1140W 24V PV Power and 5-Stage Charging

Name: 40 Amp RV MPPT Solar Charge Controller with 1140W 24V PV Power and 5-Stage Charging
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT518-40AFM
Price: 82.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT518-40AFM
MOQ:	100
Payment Terms:	TT,West Union
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Maximum Pv Power:

570W/12V , 1140W/24V

Maximum Input Voltage:

100V

Work Temperature:

-25~+50 Degree

Bluetooth:

Optional

MPPT Tracking Efficiency:

99.5%

Temperature Compensation:

Yes

Dimension:

179X144X76mm

Display:

LCD Display

Rated Current:

40A

Supply Ability:

5000pcs per month

Highlight:

RV MPPT Charge Controller Bluetooth

RV MPPT Charge Controller 24V

RV 40 Amp MPPT Charge Controller

Product Description

40 Amp RV MPPT Charge Controller For 1140W 24V PV Power Bluetooth LCD Display

Advanced MPPT Solar Charge Controller

This high-performance RV solar charge controller features lithium battery charging capability (30A-40A), ensuring safe and efficient battery charging to extend lifespan and improve performance. Operating at 12V/24V system voltage, it's compatible with most RV solar panel systems.

Key Features

5-stage charging: bulk, absorption, float, equalization, and temperature compensation
Automatic temperature compensation adjusts charging voltage based on ambient conditions
Prevents overcharging and undercharging to protect battery health
Maximum PV Power: 570W/12V, 1140W/24V
Compatible with multiple battery types: AGM, GEL, WET, Calcium, Lead Crystal, LTO, LCO, LFP
Bluetooth connectivity and LCD display
2-year warranty included

Technical Specifications

Product Name	Flush Mount 40A MPPT Controller for RV
Product Type	Intelligent MPPT solar controller
Charging Stage	5 Stage
Rated Current	40A
Maximum Input PV Power	580W @ 12V system, 1160W @24V system
System Voltage	12V/24V Auto working
Maximum Input Voltage	100V Voc
MPPT Tracking Efficiency	99.5%
Charging Conversion Efficiency	98%
Display	LCD + Fashion LED display
Bluetooth	Included
IP Rating	IP43
Dimensions	195×130×70mm
Weight	1090g

Applications

The Melin Sunergy MT518-40AFM RV Solar Charge Controller is ideal for camping, road trips, and boondocking. Its flush mount design and wide battery compatibility make it perfect for RV owners looking to switch to solar power. Features include BMS Wake Up function to prevent overcharging/over-discharging and extend battery life.
