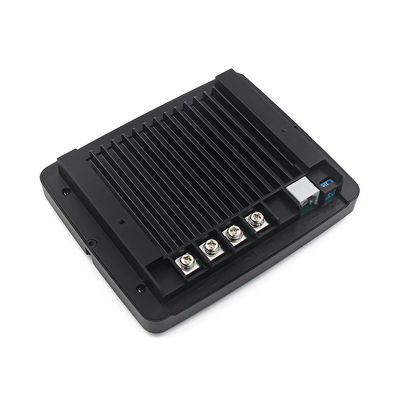

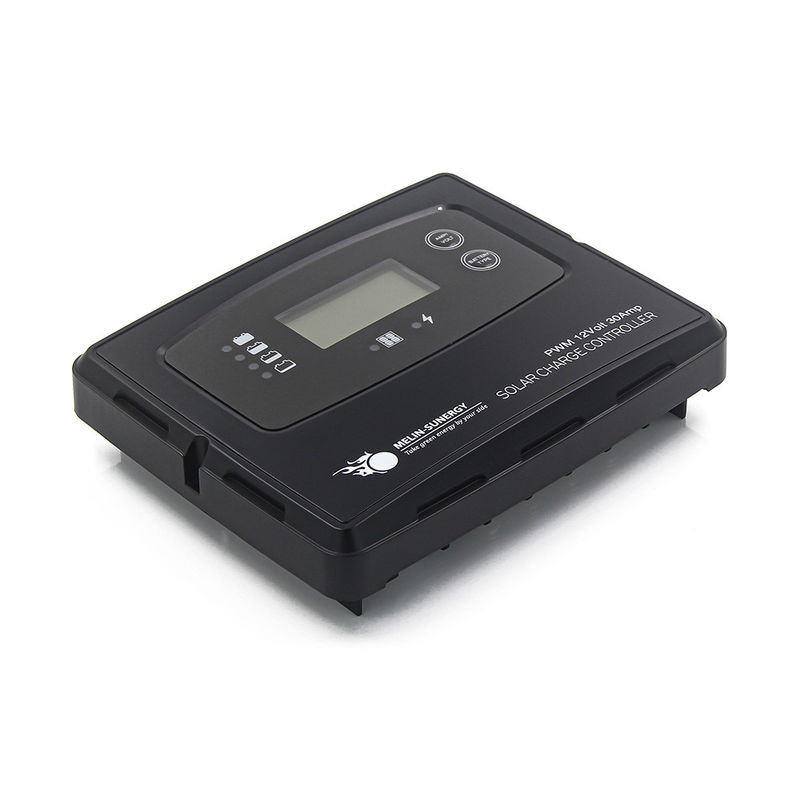

24V 12 Volt Digital Solar Charge Controller with Max PV Power 760W @ 12V and PWM Technology

24V 12 Volt Digital Solar Charge Controller with Max PV Power 760W @ 12V and PWM Technology

Brand Name:	Melin Sunergy
Model Number:	MT515-40A
MOQ:	100
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Temperature Compensation:

Yes

Battery Type:

AGM ,GEL ,WET,Calcium ,LiFePO4 ,LTO

Type:

PWM Controller

Remote Display:

Optional

Max. PV Power.:

760W @ 12V ,1520W @ 24V

Display:

LCD+LED

Charging Stage:

5 Stage Charging

Dimensions:

182X103X50mm

Charging Current:

40A

Supply Ability:

5000pcs per month

Highlight:

40A 12 Volt Solar Panel Charge Controller

LCD 12 Volt Solar Panel Charge Controller

40A 24 Volt Solar Panel Charge Controller

Product Description

LCD LED Display 40A 24V 12 Volt Solar Panel Charge Controller For AGM Battery

Product Overview

This compact PWM solar charge controller (182*103*50mm) efficiently manages energy flow from solar panels to batteries, ensuring optimal charging while protecting against overcharging or undercharging. Designed for durability in harsh environments, it includes an optional remote display for convenient system monitoring.

Key Features

40A rated current with PWM charging technology
Compatible with multiple battery types: AGM, GEL, WET, Calcium, LiFePO4, LTO
Compact dimensions: 182*103*50mm
Maximum PV power: 760W @12V or 1520W @24V
50V maximum input voltage
Optional remote monitoring display
2-year warranty for guaranteed reliability

Technical Specifications

Item No.	MT515-40A
Rated Current	40A
Max. Solar Power Input	760W@12V system, 1520W@24V
Nominal Solar Input Voltage	15-22V DC
Max. Solar Input Voltage	25V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Protection Features	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP22
Operation Temperature	-25°C to 50°C (-13°F to 122°F)
Dimensions	15512538mm
Weight	460g

Applications

Ideal for 12V solar panel systems with AGM, GEL, or LiFePO4 batteries
Perfect for medium to large solar systems requiring 40A charging capacity
Temperature compensation adjusts charging voltage for optimal performance
Suitable for off-grid solar systems, solar-powered water pumps, and lighting systems
Optional remote display for monitoring remote installations

Certifications: CE, FCC, UKCA
Manufacturing Origin: China
Minimum Order Quantity: 100 units
Delivery Time: 25 days
Monthly Supply Capacity: 5000 units
