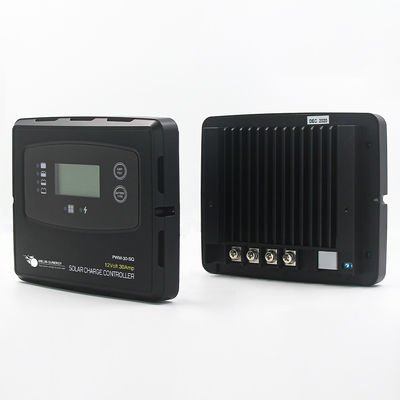

PWM Digital Solar Charge Controller with 760W PV Power 12V Temperature Compensation and 40A Charging Current

PWM Digital Solar Charge Controller with 760W PV Power 12V Temperature Compensation and 40A Charging Current

Brand Name:	Melin Sunergy
Model Number:	MT515-40A
MOQ:	100
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Dimensions:

182X103X50mm

Max. PV Power.:

760W @ 12V ,1520W @ 24V

Remote Display:

Optional

BMS Wake Up:

Yes

Maximum Input Voltage:

50V

Temperature Compensation:

Yes

Type:

PWM Controller

System Voltage:

12V 24V

Chargnig Current:

40A

Supply Ability:

5000pcs per month

Highlight:

PWM Digital Solar Charge Controller

Digital Solar Charge Controller 760W

PWM Solar Charge Controller 12V

Product Description

PWM Digital Solar Charge Controller 760W PV Power 12V Temperature Compensation

Product Overview

The Digital Solar Charge Controller is a PWM-based controller with comprehensive protection features including overcharge, short circuit, reverse polarity, and over-temperature protection. Its IP22 rating makes it suitable for indoor use, while the compact design (182×103×50mm) ensures easy installation and portability.

Key Features

5-stage charging process (Soft Start-Bulk-Absorption-Equalization-Float)
IP22 protection rating against solids and dripping water
Maximum input voltage: 50V
Compatible with 12V/24V systems

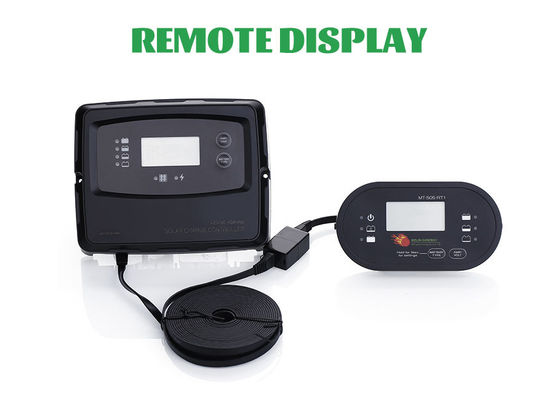

Optional remote display available
Supports multiple battery types including AGM, GEL, WET, Calcium, LTO & LiFePO4
LCD+LED display for real-time system monitoring
2-year warranty included

Technical Specifications

Item No.	MT515-30A
Rated Current	30A
Max. Solar Power Input	760W@12V system, 1520W @24V
Nominal Solar Input Voltage	15~22V DC
Max. Solar Input Voltage	25V DC
Lowest Operation Voltage	9V DC
Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Min. Battery Voltage	3V DC
Protections	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
Mounting Method	Wall mount
Dimensions	155×125×38mm
Weight	460g
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉

Applications

Ideal for off-grid solar systems including cabins, RVs, boats, and remote homes. Also suitable for grid-tied systems with battery backup. Certified with CE, FCC, and UKCA standards for quality assurance.

Additional Information

Minimum order quantity: 100 units
Delivery time: 25 days
Monthly supply capacity: 5000 units
