products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

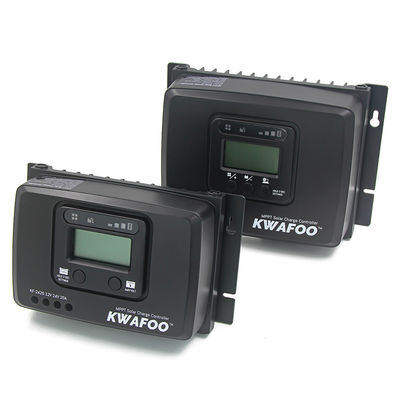

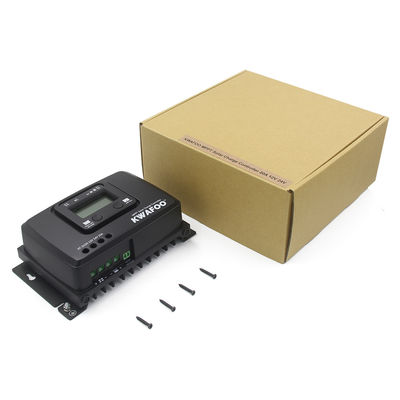

Surface Mount 40A RV MPPT Solar Charge Controller with 1160W Maximum PV Power and 5 Stage Charging

Surface Mount 40A RV MPPT Solar Charge Controller with 1160W Maximum PV Power and 5 Stage Charging

Surface Mount 40A RV MPPT Solar Charge Controller with 1160W Maximum PV Power and 5 Stage Charging

Brand Name: Melin Sunergy
Model Number: MT518-40A
MOQ: 100
Payment Terms: TT,West Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Ip Level:
IP43
Mounting:
Surface Mount
Maximum Pv Power:
570W/12V , 1140W/24V
Maximum Input Voltage:
100V
Warranty:
2 Years
BMS Wake Up:
Yes
Protection:
Overcharging ,undercharging,shor T Circuit,reverse Polarity
Display:
LCD Display
Rated Current:
40A
Supply Ability:
5000pcs per month
Highlight:

RV MPPT Solar Charge Controller 1160W

,

RV MPPT Solar Charge Controller IP43

,

Surface Mount 40a MPPT Charge Controller

Product Description
Surface Mount 40A RV MPPT Solar Charge Controller IP43 With 1160W Maximum PV Power
Product Overview
The RV Solar Charge Controller features an LCD display for monitoring charging process and battery status, showing vital information like battery voltage, charging current, and status. This 40A MPPT solar charge controller efficiently handles up to 1160W PV power, maximizing solar panel output for faster charging and higher efficiency.
Surface Mount 40A RV MPPT Solar Charge Controller with 1160W Maximum PV Power and 5 Stage Charging 0
Key Features
  • 40A MPPT solar charge controller with 1160W maximum PV power
  • LCD display for real-time monitoring
  • 5-stage charging system with temperature compensation
  • Surface mount design with IP43 weather resistance
  • Compatible with various battery types (Lead Acid and Lithium)
  • Includes BMS Wake Up feature and Bluetooth connectivity
  • Compact dimensions: 195×130×70mm
Technical Specifications
Product Type Intelligent MPPT solar controller
Rated Current 40A
Maximum PV Power 580W @12V, 1160W @24V
System Voltage 12V/24V Auto working
Maximum Input Voltage 100V Voc
MPPT Efficiency 99.5%
Charging Efficiency 98%
Battery Compatibility Lead Acid (AGM, GEL, WET) and Lithium (LiFePO4, LTO)
IP Rating IP43
Dimensions 195×130×70mm
Weight 1090g
Warranty 2 Years
Product Attributes
  • Brand: Melin Sunergy
  • Model: MT518-40A
  • Certifications: CE, FCC, UKCA
  • Minimum Order: 100 units
  • Delivery Time: 15 days
  • Supply Capacity: 5000 units/month
Applications
  • RV and camper solar systems
  • Camping and off-grid power solutions
  • Marine and boat solar installations
  • Emergency backup power systems
  • Remote monitoring systems
Keywords: 40A MPPT solar charge controller, MPPT regulator 40A, solar charge controller 40 amp, RV solar controller
