| Brand Name: | Melin Sunergy |
| Model Number: | MT515 |
| MOQ: | 100 |
| Supply Ability: | 5000pcs per month |

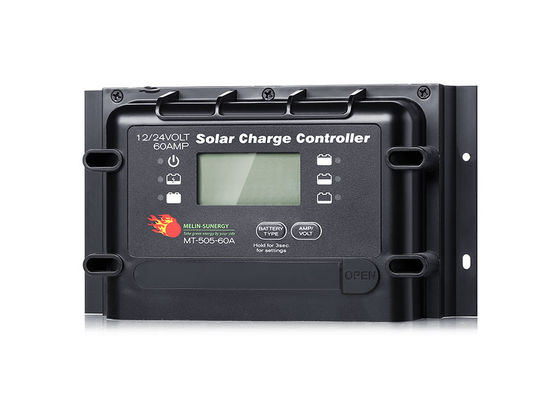

The Digital Solar Charge Controller is equipped with BMS Wake Up technology, which means that it can automatically activate and deactivate the battery management system of your solar power system. This feature is important because it helps to prolong the life of your battery and ensures that it is always charged to its maximum capacity.
Another important feature of the Digital Solar Charge Controller is its temperature compensation function. This feature allows the regulator to adjust the charging voltage of your battery depending on the temperature of the environment. This helps to prevent overcharging or undercharging of the battery, which can lead to damage or reduced performance.
The Digital Solar Charge Controller has a sleek and modern design with a black color finish, which makes it a great addition to any solar power system. This product is compatible with a range of battery types, including AGM, GEL, WET, Calcium, LiFePO4, and LTO. This means that you can use the Digital Solar Charge Controller with a wide variety of solar power systems.
The Digital Solar Charge Controller is a 50A PWM solar regulator, which means that it uses pulse width modulation technology to regulate the power output of your solar panels. This technology helps to reduce the amount of power wasted during the charging process, which in turn helps to prolong the life of your battery and improve the overall efficiency of your solar power system.
| Item No. | MT515-60A |
| Rated Current | 60A |
| Max. Solar Power Input | 1140W@12V system , 2280W @24 |
| Norminal Solar Input Voltage | 15~44V DC |
| Max. Solar Input Voltage | 50V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP22 |
| Mounting method | Wall mount |
| Size | 182X103X50mm |
| Weight | 980g |
| Operation Temperature | -25~50℃/-13~122℉ |
| Storage Temperature | -40~85℃/-40~185℉ |
The MT515 offers 5-stage charging, making it a top-of-the-line choice for those looking for a solar automatic voltage regulator. It can handle up to 60A of current, making it perfect for larger solar systems. Additionally, it offers protection against overcharge, short circuit, reverse polarity, and over-temperature, ensuring your solar panels are always safe and secure.
Whether you're looking to power your home or business with solar energy, the MT515 is an excellent choice. It can be used in a variety of scenarios, including off-grid systems, RVs, boats, and more. The IP22 rating ensures it can withstand a variety of weather conditions, making it durable and long-lasting.
If you're in need of a remote display, the MT515 offers that as an optional feature. This allows you to monitor your solar panel system from a distance, giving you greater flexibility and convenience. With a minimum order quantity of 100 and a delivery time of 25 days, you can rest assured that you'll receive your product in a timely manner.
With a supply ability of 5000pcs per month, the MT515 is a popular choice for those in the market for a solar automatic voltage regulator. Don't settle for a 50A PWM solar regulator when you can upgrade to the MT515 and enjoy its many benefits. Order yours today!
