Intelligent Digital Solar Charge Controller with Remote Display and 2 Years Warranty

Name: Intelligent Digital Solar Charge Controller with Remote Display and 2 Years Warranty
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT515
Price: 58.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT515
MOQ:	100
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Battery Type:

AGM ,GEL ,WET,Calcium ,LiFePO4 ,LTO

Color:

Black

Dimensions:

182X103X50mm

Protection:

Overcharge/Short Circuit/Reverse Polarity/Over Temperature

Remote Display:

Optional

IP Level:

IP22

Warranty:

2 Years

Rated Current:

60A

Supply Ability:

5000pcs per month

Highlight:

PWM Solar Regulator 60A

Intelligent Solar Regulator 60A

Product Description

Intelligent Black PWM Solar Regulator 60A IP22 With Remote Display

Product Description

This advanced black solar charge controller features an LCD+LED display for real-time monitoring of your solar system, including battery voltage and charging current. Engineered with comprehensive protection systems including overcharge, short circuit, reverse polarity, and over temperature protection to ensure system safety and reliability.

The optional remote display provides convenient monitoring from any location, allowing you to maintain optimal system performance whether at home or away.

Key Features

Digital Solar Charge Controller with PWM technology
Optional remote monitoring display
BMS Wake Up functionality for battery longevity
Compact dimensions: 182*103*50mm
Clear LCD+LED display interface
Advanced 5-stage charging process (Soft Start-Bulk-Absorption-Equalization-Float)
Compatible with multiple regulator types: PWM Solar Regulator / Solar System Regulator / 50A PWM Solar Regulator

Technical Specifications

Item No.	MT515-60A
Rated Current	60A
Max. Solar Power Input	1140W@12V system, 2280W @24V
Nominal Solar Input Voltage	15~44V DC
Max. Solar Input Voltage	50V DC
Lowest Operation Voltage	9V DC

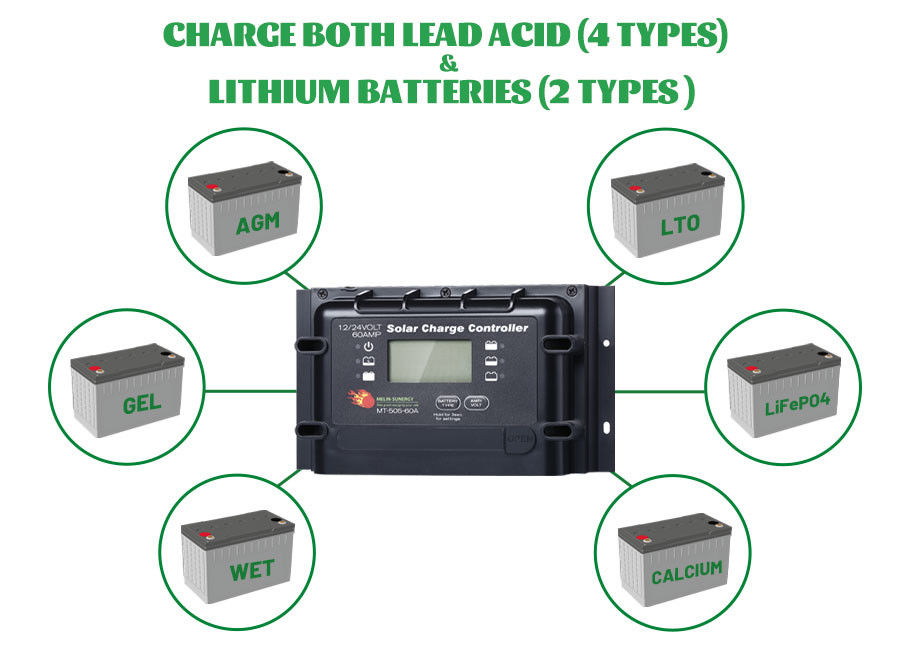

Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Min. Battery voltage	3V DC
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP22
Mounting Method	Wall mount
Size	18210350mm
Weight	980g
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉

Applications & Certifications

The MT515 PWM solar regulator is CE, FCC and UKCA certified, making it suitable for residential, commercial, and industrial solar installations. With a minimum order quantity of 100 units and delivery time of 25 days, it's ideal for large-scale projects.

The BMS Wake Up feature automatically activates battery management systems, extending battery life. Backed by a 2-year warranty, this compact and versatile controller works with various solar panels and battery types for reliable performance.
