| Brand Name: | Melin Sunergy |
| Model Number: | MT515 |
| MOQ: | 100 |
| Supply Ability: | 5000pcs per month |
Intelligent Black 60A Pwm Solar Regulator For Various Battery Types With Remote Display
This black solar charge controller is equipped with an LCD+LED display that shows important information about your solar system, such as battery voltage, charging current, and more. Additionally, the controller features overcharge protection, short circuit protection, reverse polarity protection, and over temperature protection, so you can rest assured that your solar system is safe and secure.
For added convenience, this digital solar charge controller also comes with an optional remote display that allows you to monitor your solar system from a distance. Whether you're at home or on the go, you can easily check on your solar system and make sure everything is running smoothly.
| Item No. | MT515-60A |
| Rated Current | 60A |
| Max. Solar Power Input | 1140W@12V system , 2280W @24 |
| Norminal Solar Input Voltage | 15~44V DC |
| Max. Solar Input Voltage | 50V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |

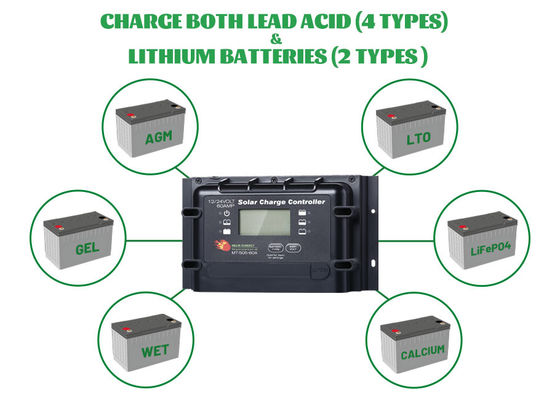

| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP22 |
| Mounting method | Wall mount |
| Size | 182X103X50mm |
| Weight | 980g |
| Operation Temperature | -25~50℃/-13~122℉ |
| Storage Temperature | -40~85℃/-40~185℉ |
The MT515 is a 50a PWM solar regulator that is manufactured in China and comes with CE, FCC and UKCA certifications. The product is sold with a minimum order quantity of 100 units and has a delivery time of 25 days. With a supply ability of 5000pcs per month, this product is ideal for large-scale solar installations.
The MT515 has BMS Wake Up feature which enables the charge controller to wake up the battery management system automatically, thus prolonging the life of your batteries. With dimensions of 182X103X50mm, this product is compact and easy to install.
The Melin Sunergy MT515 is suitable for a wide range of applications and scenarios including residential, commercial and industrial solar installations. It can be used with a variety of solar panels and batteries, making it a versatile and reliable product.
The MT515 charge controller comes with a 2-year warranty, providing customers with peace of mind and assurance. It is a high-quality product that is built to last and is perfect for anyone looking for a reliable and efficient 50a PWM solar regulator.
