Intelligent 50V Input IP22 Wall Mount Digital Solar Charge Controller with 182X103X50mm Dimensions

Name: Intelligent 50V Input IP22 Wall Mount Digital Solar Charge Controller with 182X103X50mm Dimensions
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT515
Price: 58.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT515
MOQ:	100
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Color:

Black

Maximum Input Voltage:

50V

Dimensions:

182X103X50mm

BMS Wake Up:

Yes

System Voltage:

12V 24V

Remote Display:

Optional

Display:

LCD+LED

Max. PV Power.:

1140W @ 12V ,2280W @ 24V

Rated Cirremt:

60Amp

Supply Ability:

5000pcs per month

Highlight:

Intelligent Digital Solar Charge Controller

24V Digital Solar Charge Controller

Product Description

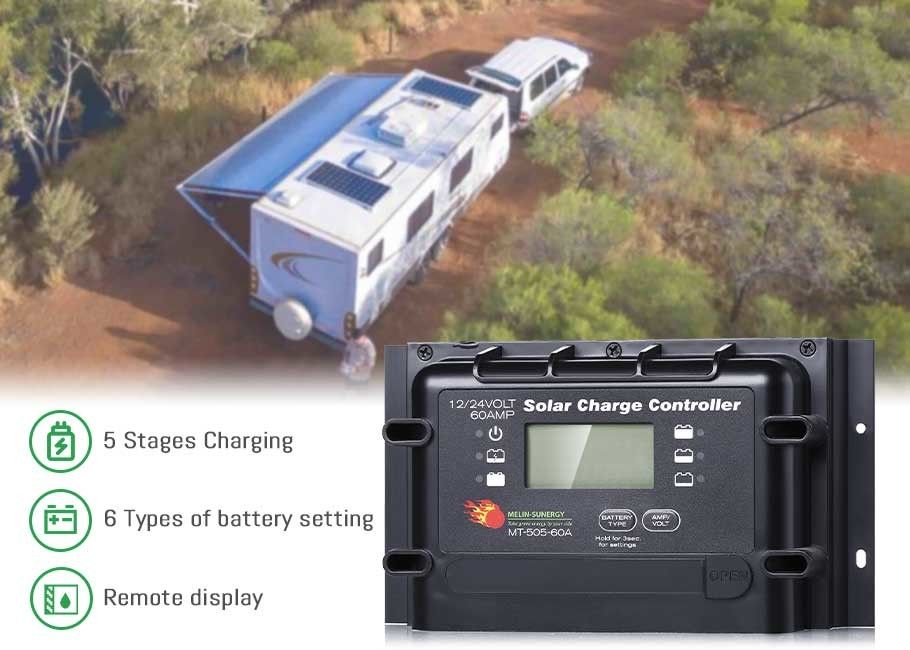

Intelligent 12V 24V PWM Digital Solar Charge Controller With BMS Wake Up

Product Description

The 50A PWM solar regulator handles up to 50 volts input voltage, making it ideal for larger solar systems. Its PWM (Pulse Width Modulation) technology ensures efficient and safe battery charging by adjusting voltage and current according to the battery's state of charge.

This sleek black controller features comprehensive protection including overcharge, short circuit, reverse polarity, and over-temperature protection to safeguard your battery and solar system.

Key Features

Max. PV Power: 1140W @ 12V, 2280W @ 24V
System Voltage: 12V, 24V
Battery Type Compatibility: AGM, GEL, WET, Calcium, LiFePO4, LTO
2-Year Warranty
Black color design

Technical Specifications

Item No.	MT515-60A
Rated Current	60A
Max. Solar Power Input	1140W@12V system, 2280W @24V
Nominal Solar Input Voltage	15~44V DC
Max. Solar Input Voltage	50V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Min. Battery voltage	3V DC
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP22
Dimensions	18210350mm
Weight	980g
Operation Temperature	-25~50℃/-13~122℉

Applications

The Melin Sunergy MT515 60A solar charge controller is compatible with various battery types and features 5-stage charging with temperature compensation. Certified by CE, FCC, and UKCA, it's suitable for off-grid cabins, RVs, and residential solar systems.
