| Brand Name: | Melin Sunergy |
| Model Number: | MT515 |
| MOQ: | 100 |
| Supply Ability: | 5000pcs per month |

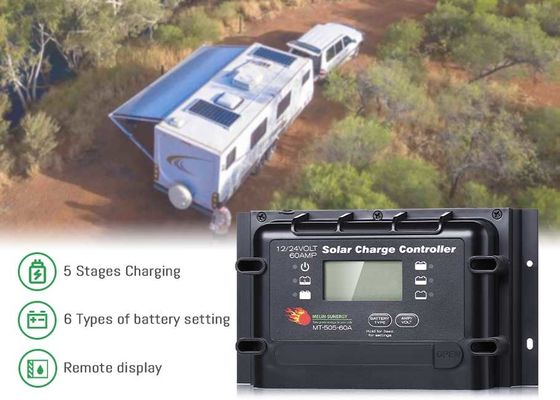

Intelligent Black Solar Charge Controller For 12V 24V Systems With BMS Wake Up And LCD LED Display
The 50a PWM solar regulator is capable of handling up to 50 volts of input voltage, making it ideal for larger solar systems. The PWM (Pulse Width Modulation) technology used in this controller ensures that your battery is charged efficiently and safely. This technology adjusts the charging voltage and current according to the battery's state of charge, ensuring that it is not overcharged or undercharged.
The Digital Solar Charge Controller comes in a sleek black color, making it a stylish addition to any solar system. It is equipped with a range of protection features, including overcharge protection, short circuit protection, reverse polarity protection, and over-temperature protection. These features ensure that your battery is protected from damage and that your solar system operates safely and efficiently.
| Item No. | MT515-60A |
| Rated Current | 60A |
| Max. Solar Power Input | 1140W@12V system , 2280W @24 |
| Norminal Solar Input Voltage | 15~44V DC |
| Max. Solar Input Voltage | 50V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP22 |
| Mounting method | Wall mount |
| Size | 182X103X50mm |
| Weight | 980g |
| Operation Temperature | -25~50℃/-13~122℉ |
| Storage Temperature | -40~85℃/-40~185℉ |
The Melin Sunergy MT515 is a 60 amp solar charge controller that can handle a wide range of battery types, including AGM, GEL, WET, Calcium, LiFePO4, and LTO. With 5-stage charging and temperature compensation, this solar charge controller ensures that your batteries are charged quickly and efficiently, while also protecting them from overcharging and other types of damage.
The Melin Sunergy MT515 is also certified by CE, FCC, and UKCA, so you can trust that it meets the highest standards for safety and quality. And with a minimum order quantity of just 100, you can easily purchase this solar charge controller for your home or business.
Whether you are looking to power your off-grid cabin, your RV, or your entire home with solar energy, the Melin Sunergy MT515 is the perfect solution. Its compact dimensions (182X103X50mm) and IP22 rating make it easy to install and use in a variety of settings, and its supply ability of 5000pcs per month ensures that you can always get the solar charge controllers you need when you need them.
So why wait? Invest in the Melin Sunergy MT515 digital solar charge controller today and start enjoying the many benefits of solar power!
