12V/24V Compatible IP22 Rated Digital Solar Charge Controller with 2 Years Warranty

Name: 12V/24V Compatible IP22 Rated Digital Solar Charge Controller with 2 Years Warranty
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT515
Price: 58.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT515
MOQ:	100
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Display:

LCD+LED

Temperature Compensation:

Yes

Maximum Input Voltage:

50V

BMS Wake Up:

Yes

Warranty:

2 Years

Rated Current:

60A

Charging Stage:

5 Stage Charging

Protection:

Overcharge/Short Circuit/Reverse Polarity/Over Temperature

Supply Ability:

5000pcs per month

Highlight:

LCD Digital Solar Charge Controller

LED Digital Solar Charge Controller

Digital 60 Amp Solar Charge Controller

Product Description

LCD LED 60 Amp Digital Solar Charge Controller With Optional Remote Display

The LCD LED 60 Amp Solar Charge Controller features 5-stage charging technology for efficient battery charging and extended lifespan. With a 60A rated current, this PWM solar regulator handles demanding solar power systems while being compatible with both 12V and 24V systems.

Key Features

Advanced 5-stage charging technology (Soft Start-Bulk-Absorption-Equalization-Float)
60A rated current for high-power applications
Compatible with 12V and 24V solar power systems
Built-in temperature compensation for optimal charging

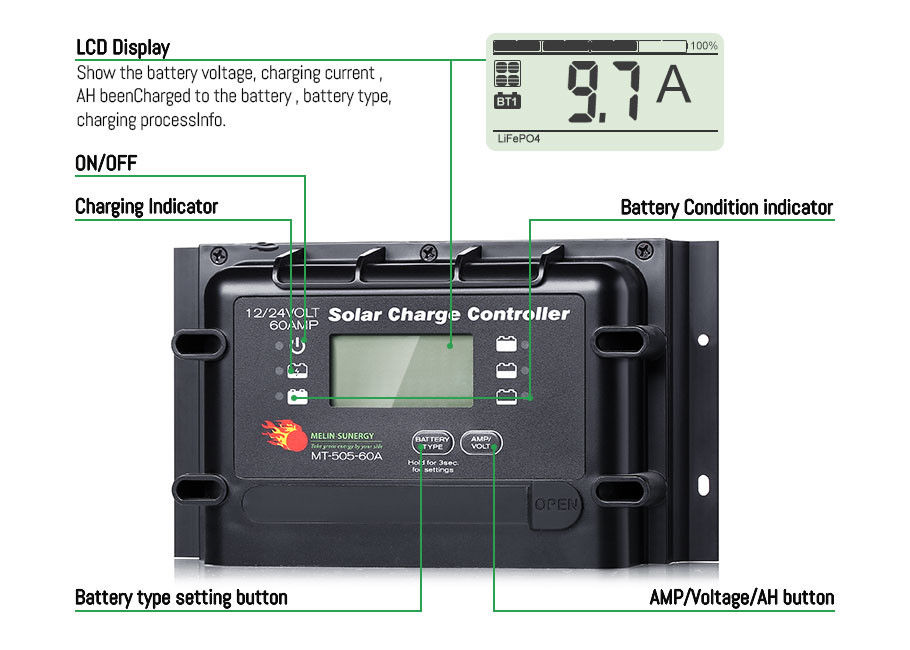

Clear LCD+LED display for real-time system monitoring
Optional remote display available
Supports 6 battery types: AGM, GEL, WET, Calcium, LTO & LiFePO4
Multiple protection features: Over Charge, Reverse Polarity, Short Circuit, Over temperature

Technical Specifications

Item No.	MT515-60A
Rated Current	60A
Max. Solar Power Input	1140W@12V system, 2280W @24V
Nominal Solar Input Voltage	15~44V DC
Max. Solar Input Voltage	50V DC
Lowest Operation Voltage	9V DC
Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Min. Battery voltage	3V DC
IP Rating	IP22
Mounting method	Wall mount
Size	18210350mm
Weight	980g
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉

Applications

Ideal for residential solar panel systems, RVs, boats, and commercial renewable energy applications. The MT515 is CE, FCC, and UKCA certified, meeting the highest safety and performance standards. With BMS wake-up technology and robust construction (IP22 rated), it's perfect for outdoor installations in various environments.

Minimum Order Quantity: 100 units
Delivery Time: 25 days
Supply Ability: 5000pcs per month
Origin: Made in China
