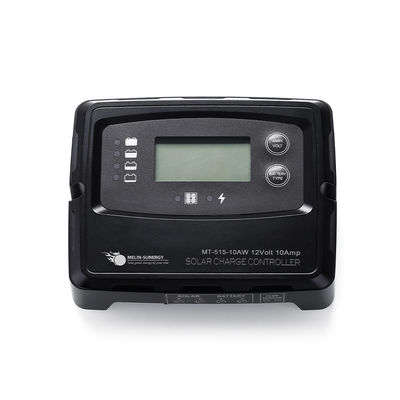

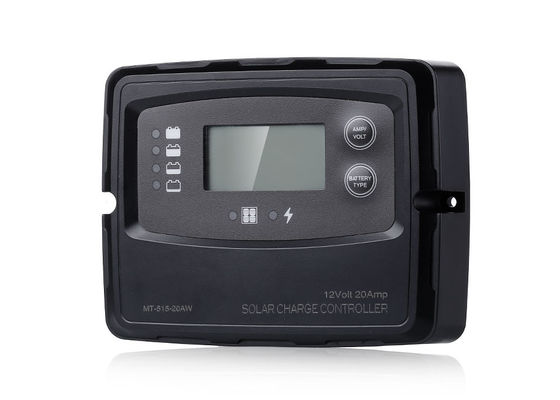

Digital Solar Charge Controller with LCD+LED Display Temperature Compensation and Wall Mount 5 Stage Charging IP67

Digital Solar Charge Controller with LCD+LED Display Temperature Compensation and Wall Mount 5 Stage Charging IP67

Brand Name:	Melin Sunergy
Model Number:	MT515
MOQ:	100
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Battery Type:

AGM ,GEL ,WET,Calcium ,LiFePO4 ,LTO

Maximum Input Voltage:

50V

Dimensions:

130X102.6X35mm

BMS Wake Up:

Yes

Charging Stage:

5 Stage Charging

Color:

Black

IP Level:

IP22 Or IP67

Type:

PWM Controller

Supply Ability:

5000pcs per month

Highlight:

Lithium Battery Solar Regulator IP67

LFPLithium Battery Solar Regulator

Digital Solar Charging Regulator

Product Description

5 Stage LFP Lithium Battery Solar Regulator IP67 Smart Digital Solar Charging Regulator

This 5 Stage LFP Lithium Battery Solar Regulator features a sleek black design with both LCD and LED displays for real-time system monitoring. Equipped with BMS wake-up function, it automatically detects low battery levels to ensure efficient charging.

Key Features

Smart voltage regulator for solar panels with 190W @ 12V / 380W @ 24V max PV power
BMS Wake Up function for automatic battery charging activation
Temperature compensation for optimal charging in all weather conditions
Supports 12V/24V system voltage
Clear LCD+LED display for easy monitoring
Compatible with multiple battery types: AGM, GEL, WET, Calcium, LiFePO4, and LTO

Technical Specifications

Item No.	MT515-10A
Rated Current	10A
Max. Solar Power Input	190W@12V system, 380W @24V
Nominal Solar Input Voltage	15~44V DC
Max. Solar Input Voltage	50V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP22 or IP67
Dimensions	130×102.6×35mm
Weight	250g
Operation Temperature	-25~50℃/-13~122℉

Applications

Ideal for off-grid cabins, RVs, campers, and various solar power systems. The compact design (130×102.6×35mm) fits in tight spaces while delivering reliable 10A current with 5-stage charging. Temperature compensation ensures optimal battery charging in all weather conditions.
