60A Alternator 50A MPPT Solar DC DC Charger with 700W PV Input Power for 12V/24V Batteries

60A Alternator 50A MPPT Solar DC DC Charger with 700W PV Input Power for 12V/24V Batteries

Brand Name:	Melin Sunergy
Model Number:	MD1250N05
MOQ:	10
Payment Terms:	TT,West Union
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Max.Alternator Charging Current:

60A

Battery Voltage Range:

9~16Vdc

Max.Alternator Input Voltage:

13.2~16Vdc / 26.4~32Vdc Or 12~16Vdc / 24~32Vdc

Max.MPPT Charging Current:

50A

Starter Battery Rated Voltage:

12/24Vdc

Rated Battery Voltage:

12Vdc

Max.PV Input Power:

700W

Weight:

2.15kg（4.73lb

Supply Ability:

5000pcs per month

Highlight:

60A DC DC Charger

DC DC Charger 700W

50A MPPT Solar Charger

Product Description

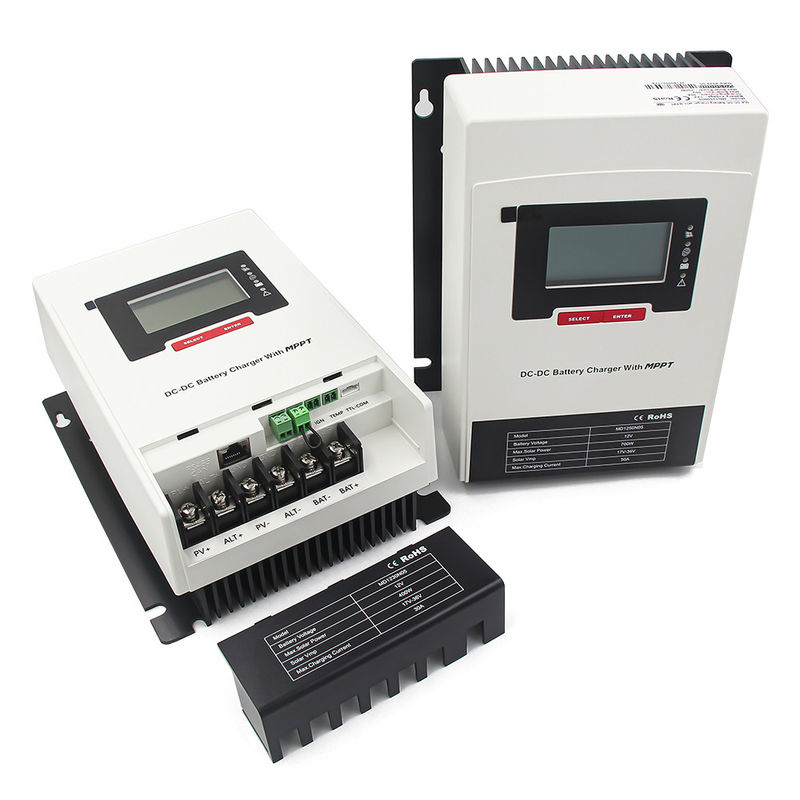

60A 12Vdc Max Alternator DC DC Charger with 50A MPPT Solar Charger

This advanced DC DC Charger combines alternator charging with MPPT solar technology, delivering up to 60A alternator charging current and 50A MPPT solar charging with 700W PV input power. Backed by a 3-year warranty, it's designed for reliable performance in demanding environments.

Product Overview

The DC DC Charger features versatile alternator charging modes including buck, boost, and buck-boost operation, making it compatible with various battery types and charging scenarios. Its solar input capability allows integration with solar panels for continuous power supply, while the lightweight design (2.15kg) ensures easy installation and portability.

Operating within a wide temperature range of -35°C to 65°C (-31°F to 149°F), this charger performs reliably in diverse climate conditions. It's compatible with 12/24Vdc starter batteries, providing a comprehensive charging solution for automotive and mobile applications.

Key Features

Dual charging capability: 60A alternator charging and 50A MPPT solar charging
700W maximum PV input power for efficient solar charging
Buck, boost, and buck-boost alternator charging modes
Compact dimensions: 221×175.8×92.4mm (8.7×6.9×3.63in)
IP32 protection rating for dust and water resistance
Battery voltage range: 9-16Vdc
Communication options: TTL, Remote Switch, Bluetooth with APP
Supports Lead-acid, Li-ion, and User Defined battery types
Lightweight design: 2.15kg (4.73lb)
3-year manufacturer warranty

Technical Specifications

Parameter	Specification
Model	MD1230N05 / MD1250N05
Max. PV Voltage (Open Circuit)	55V
MPPT Voltage Range	17-36Vdc
Max. PV Input Current	27A
Max. PV Input Power	400W-700W
Leisure Battery Type	Lead-acid / Li-ion / User Defined
Rated Leisure Battery Voltage	12Vdc
Leisure Battery Voltage Range	9-16Vdc
Max. MPPT Charging Current	30A-50A
Max. Alternator Charging Current	35A-60A
Starter Battery Type	Lead Acid
Rated Starter Battery Voltage	12/24Vdc
MPPT Tracking Efficiency	>99%
Max. Charging Conversion Efficiency	98%
Operating Temperature Range	-35°C to 65°C (-31°F to 149°F)

Applications

Ideal for automotive, marine, RV, and off-grid applications where reliable battery charging is essential. Perfect for lithium battery systems and solar-powered setups, this charger ensures optimal performance across various scenarios including:

Vehicle and automotive battery charging systems
Solar-powered charging stations
Marine and RV power systems
Off-grid power solutions
Backup power systems

With a supply capacity of 5000 units per month, 15-day delivery time, and payment terms including TT and Western Union, this product offers both performance and purchasing convenience.
