10KW LiFePO4 Solar Energy Storage System With 120A AC Charge And IP20 Protection For Home Solar Power

Name: 10KW LiFePO4 Solar Energy Storage System With 120A AC Charge And IP20 Protection For Home Solar Power
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: EOH10C
Price: 1,650.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	EOH10C
MOQ:	1
Payment Terms:	TT,West Union
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Max. Solar Input Power:

5,500W+5,500W

Battery Type:

LiFePO4

Power Module Size:

655*353*328mm

Maximum AC Charge Current:

120A

Rated Output Power:

10KW

Storage Temperature Range:

-25℃ ～ 60℃

Ingress Protection Rating:

IP20

Designed Battery Life-span:

6000 Recycles

Supply Ability:

1000pcs per month

Highlight:

10KW Solar Energy Storage System

Solar Energy Storage System IP20

Product Description

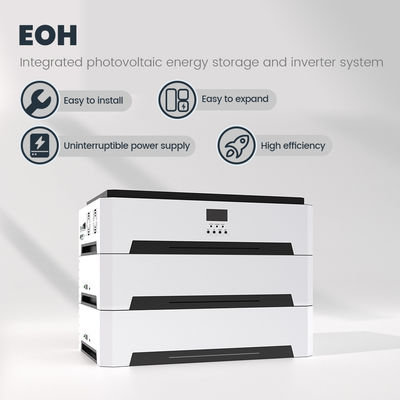

10KW LiFePO4 Solar Energy Storage System

This advanced solar energy storage system features a 100Ah/51.2V battery module capacity, providing a total storage capacity of 5.12kWh. Designed to power your entire household during nighttime hours or cloudy conditions, the system offers reliable energy independence with a long-lasting 6000-cycle battery lifespan.

Key Features

Solar Energy Storage System with 120A AC Charge
GRID/GENERATOR INPUT Voltage Range: 90~280Vac
Compact power module size: 655×353×328mm
Wide storage temperature range: -25℃ to 60℃
Maximum solar input power: 5,500W + 5,500W
Rated output voltage: 230V AC
IP20 protection rating

Technical Specifications

Inverter Specifications

Item No.	EOH05C
Rated Output Power	10000W
Max. Peak Power	20000VA
Load Capacity of Motor	6HP
Wave Form	Pure Sine Wave
Rated Output Voltage	230Vac (single phase)
Solar Charge Type	MPPT
Max. Input Solar Power	5500W + 5500W
Max. Solar Open Circuit Voltage	500V + 500V
Max. Solar Charging Current to Battery	200A
Max. Grid/Generator Charging Current	120A
Gross Weight	33.1kg (72.97lb)
Dimension	655×353×210mm (2.14×1.15×0.69ft)
Cooling Mode	Natural cooling
Safety Standards	EN61000, C2, CE(EN62109-1)

Battery Specifications

Battery Power	5.12KWH
Rated Voltage	51.2V
Rated Capacity	100Ah
Battery Type	LiFePO4
Cycling Lifespan	6000 cycles
Max. Parallel Capacity	9 units (up to 46.08kWh)
Gross Weight	46.6kg (102.735lb)
Dimension	655×353×210mm (2.14×1.15×0.69ft)

Certifications & Applications

The Melin Sunergy EOH10C is certified with CE, FCC, and UKCA standards, ensuring international compliance and quality assurance. This complete home solar power system is ideal for reducing grid dependence and lowering electricity costs. With a 15-day delivery timeframe and flexible payment options, this system provides a reliable and efficient energy solution for residential applications.
