Home LiFePO4 Battery Solar Energy Storage System with 10KW Pure Sine Wave Inverter and 6000 Recycles

Name: Home LiFePO4 Battery Solar Energy Storage System with 10KW Pure Sine Wave Inverter and 6000 Recycles
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: EOH10C
Price: 1,650.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	EOH10C
MOQ:	1
Payment Terms:	TT,West Union
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Power Module Gross Weight:

33.1Kgs

Max. Solar Input Power:

5,500W+5,500W

Battery Module Gross Weight:

46.6Kgs

Battery Module Size:

655*353*205mm

Battery Module Capacity:

100Ah/51.2V Of Each

Output Frequency:

50HZ/60HZ

Ingress Protection Rating:

IP20

Battery Type:

LiFePO4

Supply Ability:

1000pcs per month

Highlight:

Home Solar Energy Storage System

LiFePO4 Solar Energy Storage System

home Lifepo4 Energy Storage Battery

Product Description

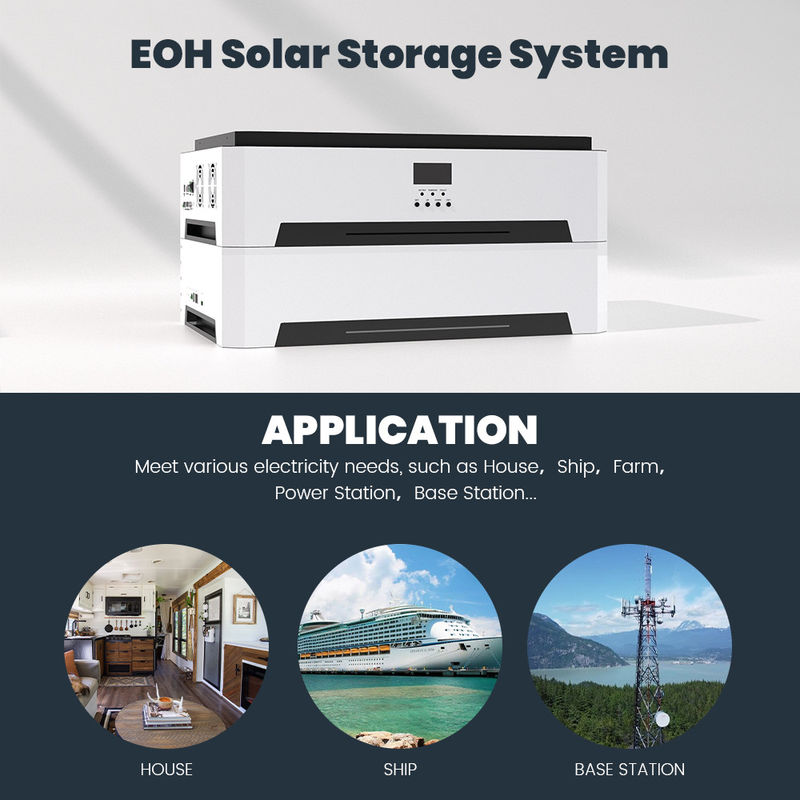

EOH10C Solar Energy Storage System

High-power solar home system with 10KW pure sine wave inverter and long-life LFP lithium battery technology. Capable of parallel connection with up to 9 battery units for maximum storage capacity of 460.8KWH.

System Features

Product Name: Solar Energy Storage System
Storage Temperature Range: -25℃ to 60℃
Parallel Capacity: Up to 9 units

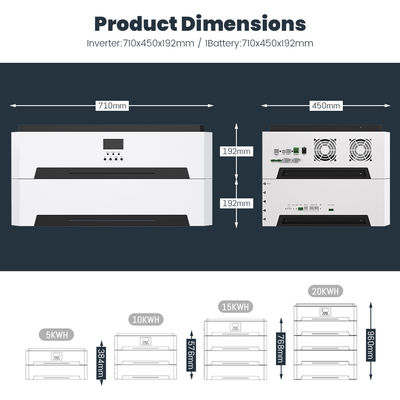

Power Module Dimensions: 655×353×328mm
Designed Battery Lifespan: 6000 cycles
Maximum Peak Power: 20KVA

Inverter Technical Specifications

Model Number	EOH05C
Rated Output Power	10000W
Maximum Peak Power	20000KVA
Motor Load Capacity	6HP
Wave Form	Pure Sine Wave
Rated Output Voltage	230Vac (single phase)
Solar Charge Type	MPPT
Maximum Input Solar Power	5500W+5500W
Maximum Solar Open Circuit Voltage	500V+500V
Grid/Generator Input Voltage Range	90-280Vac
Maximum Solar Charging Current	200A
Maximum Grid/Generator Charging Current	120A
Gross Weight	33.1kg (72.97lb)
Dimensions	655×353×210mm
Protection Degree	IP20
Cooling Mode	Natural cooling
Safety Certifications	EN61000, C2, CE(EN62109-1)

Battery Specifications

Battery Power	5.12KWH
Rated Voltage	51.2V
Rated Capacity	100Ah
Battery Type	LiFePO4
Cycling Lifespan	6000 cycles
Maximum Parallel Capacity	9 units (up to 46.08kWh)
Gross Weight	46.6kg (102.735lb)
Dimensions	655×353×210mm

Applications

Ideal for 10kW solar systems, residential solar installations, and backup power solutions. Perfect for homes and businesses requiring reliable energy storage with grid independence. Suitable for areas with frequent power outages and for reducing grid dependency.
