| Brand Name: | Melin Sunergy |
| Model Number: | MD1230N05 |
| MOQ: | 10 |
| Payment Terms: | TT ,West Union |
| Supply Ability: | 5000pcs per month |

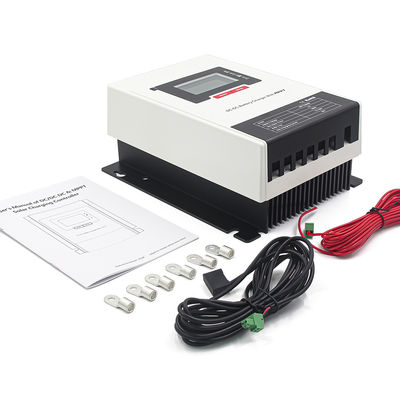

17~36Vdc 30A MPPT Charger 12/24Vdc Rated Battery Voltage IP32 Protection DC DC Chargr
The DC DC Charger is a compact and lightweight device, weighing only 1.92kg (4.23 Lb), making it easy to transport and install. The charger is designed to operate with a battery voltage range of 9~16Vdc, making it compatible with a wide range of batteries. The device is also equipped with a powerful MPPT (Maximum Power Point Tracking) function, which allows it to efficiently capture and utilize solar energy, providing a more efficient charging solution for your batteries.
The DC DC Charger with MPPT is capable of handling a maximum PV input power of 400W, ensuring that it can efficiently charge your batteries, even in low-light conditions. The device is also compatible with a range of battery types, including lead-acid, Li-ion, and user-defined batteries, making it a versatile charging solution for a range of applications.
The DC DC Charger with MPPT is particularly well-suited for use with LiFePO4 batteries, providing a safe and efficient charging solution for these high-performance batteries. The device is designed to operate with a maximum voltage of open circuit of 55v, ensuring that it is fully compatible with these advanced batteries.
The DC DC Charger is a reliable and efficient charging solution that is designed to meet the needs of a wide range of applications. Whether you are looking for a charging solution for your solar power system, electric vehicle, or off-grid power system, the DC DC Charger with MPPT is the perfect device for the job.
| MODEL | MD1230N05 |
| Max. PV Voltage of Open Circuit | 55V |
| MPPT Voltage Range | 17～36Vdc |
| Max.PV Input Current | 27A |
| Max.PV Input Power | 400W |
| LEISURE BATTERY Type | Lead-acid / Li-ion / User Defined |
| Rated Leisure Battery Voltage | 12Vdc |
| Leisure Battery Voltage Range | 9~16Vdc |
| Max.MPPT Charging Current | 30A |
| Max.Alternator Charging Current | 35A |
| STARTER BATTERY TYPE | Lead Acid |
| Rated Starter Battery Voltage | 12/24Vdc |
| Max.Alternator Input Voltage-Conventional Alternator | 13.2~16Vdc / 26.4~32Vdc |
| Max.Alternator Input Voltage-Euro 6 Standard Alternator | 12~16Vdc / 24~32Vdc |
| Alternator Charging Mode | Buck,Boost,Buck-Boost |
| MPPT Tracking Efficiency | >99% |
| Max. Charging Conversion Efficiency | 98% |
| COMMUNICATION | TTL,Remote Switch,Bluetooth (with APP) |
| Weight | 1.92kg(4.23 lb) |
| Dimension | 221*175.8*92.4mm(8.7*6.9*3.63in) |
| Protection Degree | IP32 |
| Operating Temperature Range | -35°C~65°C(-31℉～149℉) |
| Warranty | 3 Years |
The DC DC Charger is perfect for use in a variety of scenarios, including but not limited to:
The Melin Sunergy MD1230N05 DC DC Charger has a minimum order quantity of 10 units and can be delivered in 15 days. Payment terms include TT and West Union, and the supply ability is 5000pcs per month. The charger weighs 1.92kg(4.23 Lb), making it portable and easy to install.
The DC DC Charger can communicate via TTL, remote switch, or Bluetooth with an app. This makes it easy to monitor and control the charging process, even from a remote location. The charger uses Buck, Boost, and Buck-Boost alternator charging modes, making it efficient and effective for a variety of battery types.
The Melin Sunergy MD1230N05 DC DC Charger has a battery voltage range of 9~16Vdc and an MPPT voltage range of 17～36Vdc. This makes it a versatile product that can be used in a variety of applications.
Overall, the Melin Sunergy MD1230N05 DC DC Charger is a reliable and efficient product that is perfect for a variety of battery charging applications. Whether you need to charge batteries in a caravan, boat, or off-grid solar system, the DC DC Charger is an ideal solution.
