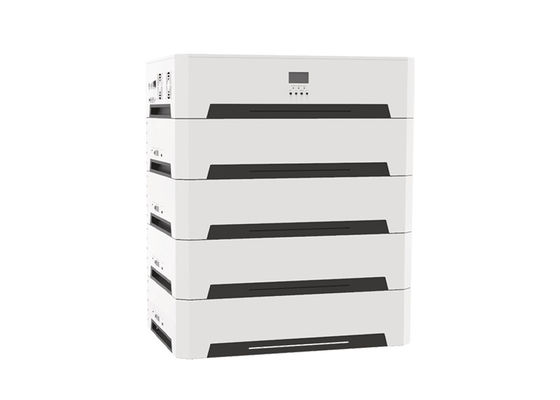

5KW 20KWH Home Solar Battery Storage System with LiFePO4 Battery for Efficient Renewable Energy

5KW 20KWH Home Solar Battery Storage System with LiFePO4 Battery for Efficient Renewable Energy

Brand Name:	Melin Sunergy
Model Number:	EOH05C
MOQ:	1
Payment Terms:	TT,West Union
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

PV Charging Current Range:

0～80A

Maximum AC Charge Power:

3150W

Storage Temperature Range:

-25℃ ～ 60℃

MPPT Voltage Range:

120～450V

Rated Output Power:

5KW

Ingress Protection Rating:

IP20

Rated Output Voltage (Vac):

230V

Power Module Gross Weight:

27Kgs

Supply Ability:

1000pcs per month

Highlight:

Home Solar PV Battery Storage Systems

5KW Solar PV Battery Storage Systems

20KWH Solar Energy Storage Battery System

Product Description

5KW Home Solar PV Battery Storage Systems

20KWH Solar Energy Storage Battery System with Max. 5000W Solar Panel Capacity

System Overview

Our Solar Energy Storage System offers a reliable, efficient, and cost-effective solution for off-grid solar power needs. Featuring long-lasting battery lifespan of up to 6000 cycles, this system provides years of dependable performance without frequent battery replacements.

Key Features

Product Name: Solar Energy Storage System
PV Operating Voltage Range: 120～500V
Parallel Quantity: 4 units
Maximum AC Charge Power: 3150W
Battery Type: LiFePO4 (Lithium Iron Phosphate)
MPPT Voltage Range: 120～450V
Battery Module Size: 710×450×192mm
Gross Weight: 53kg (easy transport and installation)
PV Charging Current Range: 0～80A for efficient charging

Technical Specifications

Inverter Specifications

Item No.	EOH05C
Rated Output Power	5000W
Max. Peak Power	10000VA
Load Capacity of Motor	4HP
Wave Form	Pure Sine Wave
Rated Output Voltage	230Vac (single phase)
Solar Charge Type	MPPT
Max. Input Solar Power	5500W
Max. Solar Open Circuit Voltage	500V
GRID/GENERATOR INPUT Voltage Range	90~280Vac
Max. Solar Charging Current to battery	100A
Max. Grid/Generator Charging Current to battery	60A
Gross Weight	19.6kg (43.2lb)
Dimension	655×353×210mm (2.14×1.15×0.69ft)
Protection Degree	IP20
Cooling Mode	Natural cooling
Safety Standards	EN61000, C2, CE(EN62109-1)

Battery Specifications

Battery Power	5.12KWH
Rated Voltage	51.2V
Rated Capacity	100Ah
Battery Type	LiFePO4
Cycling Lifespan	6000 cycles
Max. Parallel Capacity	9 units (up to 46.08kWh)
Gross Weight	46.6kg (102.735lb)
Dimension	655×353×210mm (2.14×1.15×0.69ft)

Applications & Performance

The Melin Sunergy EOH48-5.0 is designed for reliable power in homes, businesses, and essential settings. With maximum power output of 5kW, it can power most household appliances and electronics, delivering daily production of 20-25 kWh.

The complete system includes both power and battery modules. The power module operates within -15℃ to 55℃ temperature range, while the battery module (using high-density LiFePO4 batteries) stores energy efficiently from -25℃ to 60℃.

Advanced safety features include overcharge protection, over-discharge protection, and short-circuit protection for reliable operation.
