5KW 230V Solar Energy Storage System with 100Ah Battery Capacity for Efficient Home Power

5KW 230V Solar Energy Storage System with 100Ah Battery Capacity for Efficient Home Power

Brand Name:	Melin Sunergy
Model Number:	EOH05C
MOQ:	1
Payment Terms:	TT,West Union
Supply Ability:	1000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Battery Module Capacity:

100Ah/51.2V Of Each

Rated Output Power:

5KW

Power Module Size:

710×450×192mm

Rated Output Voltage (Vac):

230V

PV Charging Type:

MPPT

Operating Temperature Range:

-15℃ ～ 55℃

PV Operating Voltage Range:

120～500V

Designed Battery Life-span:

6000 Recycles

Supply Ability:

1000pcs per month

Highlight:

230V Solar Power Storage System

5KW Solar Power Storage System

Product Description

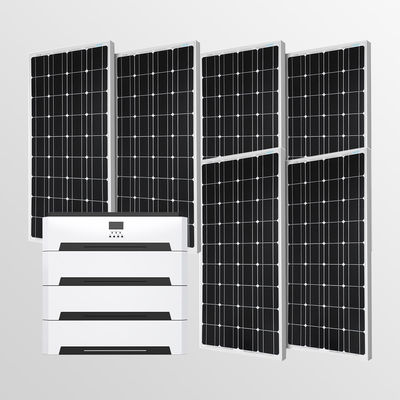

5KW 230V Solar Power Storage System With 100Ah Battery Capacity

The 5KW 230V Solar Energy Storage System is an efficient solution for reducing energy costs and carbon footprint. This system harnesses solar power to operate household appliances, providing reliable electricity while minimizing dependence on traditional energy sources.

Key Features

Product Name: Solar Energy Storage System
Parallel Quantity: 4 units
PV Charging Type: MPPT technology
Ingress Protection Rating: IP20
PV Operating Voltage Range: 120-500V
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Compact battery module size: 710×450×192mm
Maximum AC Charge Power: 3150W

Daily Energy Production

The 5KW solar power system generates 20-30 kWh daily, depending on location and weather conditions, providing ample energy for household needs and potential grid feedback.

Technical Specifications

Inverter Specifications

Parameter	Specification
Item No.	EOH05C
Rated Output Power	5000W
Max. Peak Power	10000VA
Load Capacity of Motor	4HP
Wave Form	Pure Sine Wave
Rated Output Voltage	230Vac (single phase)
Solar Charge Type	MPPT
Max. Input Solar Power	5500W
Max. Solar Open Circuit Voltage	500V
Grid/Generator Input Voltage Range	90-280Vac
Max. Solar Charging Current to Battery	100A
Max. Grid/Generator Charging Current	60A
Gross Weight	19.6kg (43.2lb)
Dimension	655×353×210mm (2.14×1.15×0.69ft)
Protection Degree	IP20
Cooling Mode	Natural cooling
Safety Standards	EN61000, C2, CE(EN62109-1)

Battery Specifications

Parameter	Specification
Battery Power	5.12KWH
Rated Voltage	51.2V
Rated Capacity	100Ah
Battery Type	LiFePO4
Cycling Lifespan	6000 cycles
Max. Parallel Capacity	9 units (up to 46.08kWh)
Gross Weight	46.6kg (102.735lb)
Dimension	655×353×210mm (2.14×1.15×0.69ft)

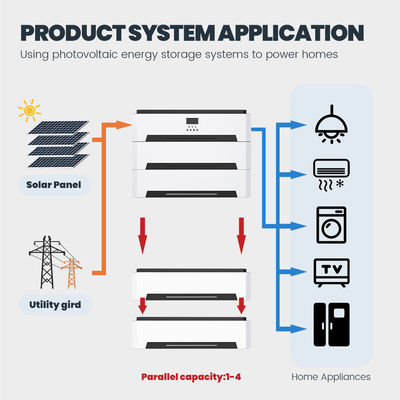

Applications

The EOH48-5.0 Solar Energy Storage System is ideal for residential homes, small businesses, and off-grid installations. Certified with CE, FCC, and UKCA standards, it ensures international safety and quality compliance.

Residential homes implementing 5KW solar power systems
Small businesses requiring reliable, cost-effective power solutions
Off-grid installations in cabins and remote locations
Carbon footprint reduction initiatives

With compact dimensions and easy installation, the system features a power module weight of 27kg and supports monthly production of 1000 units with 15-day delivery. Minimum order quantity is 1 unit with flexible payment terms.
