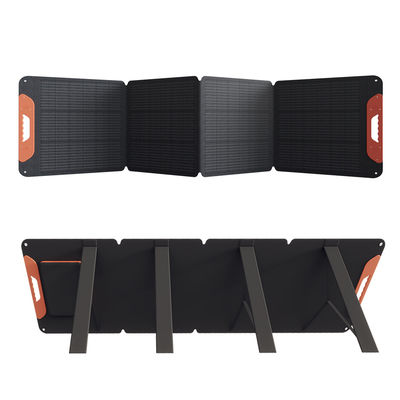

Compact 300W Portable Folding Solar Panels with 22% Efficiency and 36V Output

Compact 300W Portable Folding Solar Panels with 22% Efficiency and 36V Output

Brand Name:	Melin Sunergy
Model Number:	CB-300W
MOQ:	10
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC

Open Size:

2430X812mm

Solar Cell:

Mono Crystalline

Output:

1.5m Cable With MC4 Or DC5521

IP Rate:

IP65

Front Cover Material:

ETFE

Im:

8.33A

Solar Cell Efficiency:

22%

Solar Panel Number:

4X75W

Packaging Details:

1pc/box

Supply Ability:

5000pcs per month

Highlight:

Compact Small Portable Solar Panels

IP65 Small Portable Solar Panels

300W Portable Power Station Solar Panels

Product Description

Compact ETFE Cover IP65 Small Portable Solar Panels 300W Power Station Solar Panels

Product Description

Our folding solar panels for RV are designed to be compact, lightweight, and easy to set up. With a packing box size of 50*85*865mm and an open size of 2430X812mm, they are exceptionally portable for outdoor use. The panels can be quickly deployed to provide immediate solar power access in any location.

Built with premium materials, these solar panels withstand extreme conditions with a working temperature range of -40℃ to 85℃. The system features a 36V working voltage and 4X75W solar panel configuration, delivering reliable power for your devices and appliances.

These environmentally-friendly panels harness solar energy to reduce your carbon footprint while providing convenient off-grid power solutions for outdoor enthusiasts, campers, and RV travelers.

Key Features

Product Name: Portable Folding Solar Panels
Open Size: 2430X812mm
Front Cover Material: ETFE
Solar Cell Efficiency: 22%
Working Voltage: 36V
Folded Size: 812X608mm
Waterproof Rating: IP65
Working Temperature: -40℃ to 85℃

Technical Specifications

Model #	CB-100W	CB-120W	CB-200W	CB-300W	CB-400W
Pmax	100W	120W	200W	300W	400W
Vmax	20V	20V	20V	36V	40V
Imax	5A	6A	10A	8.33A	10A
Voc	24V	24V	24V	43.2V	48V
Isc	5.25A	6.30A	10.5A	8.75A	10.5A
Solar Cell Type	High Efficiency A Grade Mono Crystalline solar cell
Cell Efficiency	22%
Folded Size	615X560mm	494X480mm	635X564mm	812X608mm	1074X631mm
Open Size	1230X560mm	1848X480mm	2390X564mm	2430X812mm	2370X1074mm
Front Cover Material	ETFE or PET Lamination
Weight	4.5Kgs	5.4Kgs	8.4Kgs	12.0Kgs	16.6Kgs

Additional Specifications

Solar Panel base board material: PCB board

Output Port: MC4 connect, DC5521, or USB Port Optional

Magnets Handle: Included

Power Co-Efficiency: -0.35%/℃

Voltage Co-Efficiency: -0.272%/℃

Current Co-Efficiency: +0.044%/℃

Warranty / Life Time: 3 Years /10 Years

STC: 1000W/m², 25℃, AM1.5

Applications

These CE and FCC certified solar panels are ideal for camping, RV travel, outdoor events, and emergency power situations. The durable ETFE cover withstands harsh weather conditions while the included 1.5m cable with MC4 or DC5521 output ensures easy connectivity.
