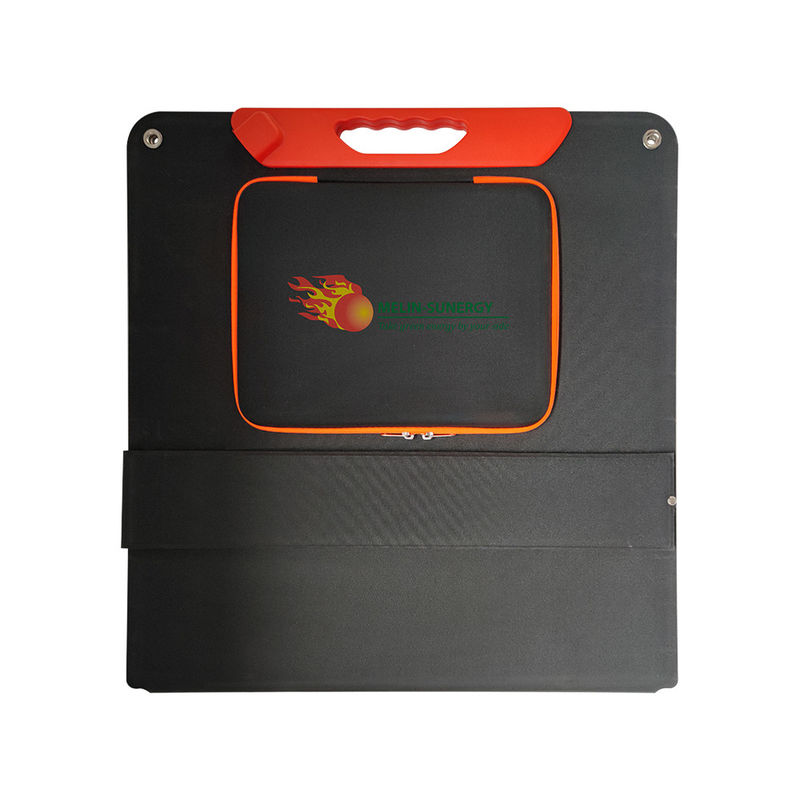

120W Portable Folding Solar Panel with 22% Efficiency and ETFE Front Cover

Name: 120W Portable Folding Solar Panel with 22% Efficiency and ETFE Front Cover
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: CB-120W
Price: 95.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	CB-120W
MOQ:	10
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC

Warranty:

3 Year

Solar Panel Number:

2X60W Or 4X30W

Front Cover Material:

ETFE

Solar Cell Efficiency:

22%

Open Size:

1848X480mm

Im:

Packing Box Size:

520*500*70mm

Solar Cell:

Mono Crystalline

Packaging Details:

1pc/box

Supply Ability:

5000pcs per month

Highlight:

Portable 120W Folding Solar Panel

Mono Crystalline Solar Panel 120W

Mono Crystalline Portable 120W Solar Panel

Product Description

Mono Crystalline Portable 120W Folding Solar Panel With ETFE Front Cover

At only 6.0Kgs, this lightweight and compact portable solar panel kit is easy to store and transport. The folding solar panel for portable power station is built with high-quality Mono Crystalline solar cells that provide a working voltage of 20V, ensuring maximum power output.

Our folding solar panel for portable power station is designed to last, with a 3-year warranty that ensures you're getting a reliable and durable product. The packing box size is 520*500*70mm, making it easy to store and transport.

Whether you're camping, hiking, or simply need a reliable source of power on the go, our Portable Folding Solar Panels are the perfect solution.

Key Features:

Product Name: Portable Folding Solar Panels
Solar Cell: Mono Crystalline
Solar Cell Efficiency: 22%
Output: USB Port Or 1.5m Cable With MC4 Or DC5521
Open Size: 1848X480mm

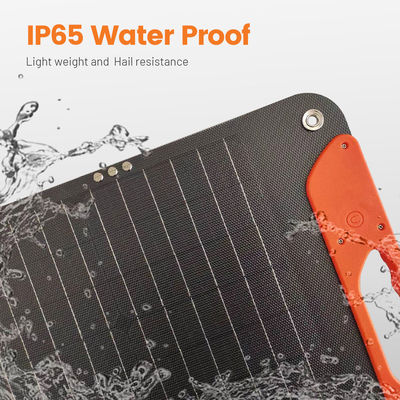

IP Rate: IP65
Can be used as portable solar panels for RV
Comes with a portable solar panel kit
Power output of 120w

Technical Specifications:

Model #	CB-100W	CB-120W	CB-200W	CB-300W	CB-400W
Pmax	100W	120W	200W	300W	400W
Vmax	20V	20V	20V	36V	40V
Imax	5A	6A	10A	8.33A	10A
Voc	24V	24V	24V	43.2V	48V
Isc	5.25A	6.30A	10.5A	8.75A	10.5A
Solar Cell Type	High Efficiency A Grade Mono Crystalline solar cell
Cell Efficiency	22%
Folded Size	615X560mm	494X480mm	635X564mm	812X608mm	1074X631mm
Open Size	1230X560mm	1848X480mm	2390X564mm	2430X812mm	2370X1074mm
Front Cover Material	ETFE or PET Lamination
Solar Panel base board material	PCB board
Output Port	MC4 connect , DC5521 ,or USB Port Optional
Water Proof Rate	IP65
Magnets Handle	Included
Working Temperature	-40 ~85℃
Power Co-Efficiency	-0.35%/℃
Voltage Co-Efficiency	-0.272%/℃
Current Co-Efficiency	+0.044%/℃
Warranty / Life Time	3 Years /10 Years
STC	1000W/m² , 25℃ ,AM1.5
Weight	4.5Kgs	5.4Kgs	8.4Kgs	12.0Kgs	16.6Kgs

Applications:

The CB-120W is a portable solar panel designed for easy use and transport, making it ideal for those needing reliable power on the go. Its durable, lightweight design allows for easy setup wherever needed.

These solar panels feature high-quality Mono Crystalline solar cells designed for maximum power output in various lighting conditions. They are CE and FCC certified, meeting the highest safety and performance standards.

The CB-120W features an ETFE front cover material that's highly durable and resistant to environmental damage, ensuring long-lasting performance even in harsh conditions. It operates in temperatures from -40℃ to 85℃, making it versatile for various applications.
