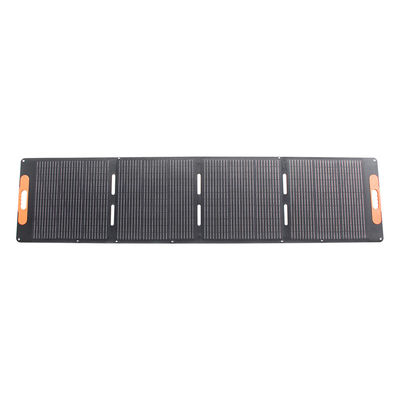

200W Portable Folding Solar Panel Kit with 22% Solar Cell Efficiency and 10A Current for Outdoor Mobile Charging

200W Portable Folding Solar Panel Kit with 22% Solar Cell Efficiency and 10A Current for Outdoor Mobile Charging

Brand Name:	Melin Sunergy
Model Number:	CB-200W
MOQ:	10
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC

Working Temperature:

-40℃ ~ 85℃

Packing Box Size:

670X585X60mm

IP Rate:

IP65

Front Cover Material:

ETFE

Open Size:

2390X564mm

Output:

USB Port Or 1.5m Cable With MC4 Or DC5521

Warranty:

1 Year

Solar Cell Efficiency:

22%

Packaging Details:

1pc/box

Supply Ability:

5000pcs per month

Highlight:

IP65 Portable Folding Solar Panel Kits

200W Folding Solar Panel

Outdoor Mobile Charging Solar Panel

Product Description

IP65 200W Portable Folding Solar Panel Kits Outdoor Mobile Charging Solar Panel

Product Description

The IP65 rated 200W Portable Folding Solar Panel Kit delivers exceptional solar cell efficiency of 22%, converting significant sunlight into energy even on cloudy days. Built with durable mono crystalline solar cells, these panels offer long-lasting performance.

With a maximum current (Im) of 10A, these panels are versatile enough to charge smartphones, tablets, laptops, car batteries, and are compatible with most portable power stations for larger appliances like refrigerators and TVs.

Weighing only 8.5Kgs, these lightweight folding solar panels are easy to transport for outdoor adventures. They feature quick setup with fold/unfold capability in seconds, include a carrying bag, and have a built-in charge controller for protection against overcharging and over-discharging.

Key Features

Product Name: 200W Portable Folding Solar Panel Kit
Working Temperature: -40℃ ~ 85℃
Output: USB Port or 1.5m Cable with MC4 or DC5521
Maximum Current (Im): 10A
Solar Cell Efficiency: 22%
IP Rating: IP65
Green power solution producing electricity anywhere with sunlight
Lightweight and portable design
Ideal for charging portable power stations

Technical Specifications

Model #	CB-100W	CB-120W	CB-200W	CB-300W	CB-400W
Pmax	100W	120W	200W	300W	400W
Vmax	20V	20V	20V	36V	40V
Imax	5A	6A	10A	8.33A	10A
Voc	24V	24V	24V	43.2V	48V
Isc	5.25A	6.30A	10.5A	8.75A	10.5A
Solar Cell Type	High Efficiency A Grade Mono Crystalline solar cell
Cell Efficiency	22%
Folded Size	615X560mm	494X480mm	635X564mm	812X608mm	1074X631mm
Open Size	1230X560mm	1848X480mm	2390X564mm	2430X812mm	2370X1074mm
Front Cover Material	ETFE or PET Lamination
Solar Panel base board material	PCB board
Output Port	MC4 connect, DC5521, or USB Port Optional
Water Proof Rate	IP65
Magnets Handle	Included
Working Temperature	-40 ~85℃
Power Co-Efficiency	-0.35%/℃
Voltage Co-Efficiency	-0.272%/℃
Current Co-Efficiency	+0.044%/℃
Warranty / Life Time	3 Years /10 Years
STC	1000W/m², 25℃, AM1.5
Weight	4.5Kgs	5.4Kgs	8.4Kgs	12.0Kgs	16.6Kgs

Applications

Perfect solar charging kit for RV and caravan batteries when paired with PWM or MPPT solar charge controllers
Ideal for charging portable lithium battery power stations during camping or remote work
Excellent electricity producer for camping or home power supply
