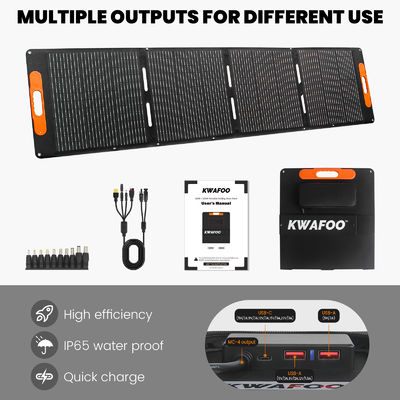

200W 12V Portable Folding Solar Panels with 22% Efficiency for Motorhomes

200W 12V Portable Folding Solar Panels with 22% Efficiency for Motorhomes

Brand Name:	Melin Sunergy
Model Number:	CB-200W
MOQ:	10
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC

Power:

200W

Packing Box Size:

670X585X60mm

Solar Cell Efficiency:

22%

Front Cover Material:

ETFE

Solar Cell:

Mono Crystalline

Im:

10A

Working Voltage:

20V

IP Rate:

IP65

Working Temperature:

-40℃ ~ 85℃

Packaging Details:

1pc/box

Supply Ability:

5000pcs per month

Highlight:

Portable Folding Solar Panels For Motorhomes

200W Portable Folding Solar Panels

IP65 200W Portable Solar Panel

Product Description

IP65 200W Portable Folding Solar Panels For Motorhomes 12V Battery

Product Description

Our 200W folding solar panel features a 10-year lifespan with ETFE high-quality construction, designed specifically for motorhome 12V battery systems. With an impressive 22% solar cell efficiency using Mono Crystalline technology, this panel delivers superior power output in all conditions.

Engineered to withstand extreme environments, this portable solar panel operates within a temperature range of -40℃ to 85℃. The IP65 rating ensures complete protection against dust and water ingress, making it ideal for all outdoor applications.

Weighing just 8.5kg, this 200W folding solar panel combines high power output with exceptional portability. The compact folded design (635×564mm) expands to a full-size panel when deployed, offering flexible placement options on the ground or attached to surfaces.

Key Features

200W 12V folding solar panel system
Compact folded size: 635×564mm
High-efficiency Mono Crystalline solar cells (22% efficiency)
Wide operating temperature range: -40℃ to 85℃
IP65 waterproof and dustproof rating
Lightweight design at just 8.5kg
Includes magnets for secure placement
3-year warranty with 10-year expected lifespan

Technical Specifications

Model #	CB-100W	CB-120W	CB-200W	CB-300W	CB-400W
Pmax	100W	120W	200W	300W	400W
Vmax	20V	20V	20V	36V	40V
Imax	5A	6A	10A	8.33A	10A
Voc	24V	24V	24V	43.2V	48V
Isc	5.25A	6.30A	10.5A	8.75A	10.5A
Solar Cell Type	High Efficiency A Grade Mono Crystalline solar cell
Cell Efficiency	22%
Folded Size	615×560mm	494×480mm	635×564mm	812×608mm	1074×631mm
Open Size	1230×560mm	1848×480mm	2390×564mm	2430×812mm	2370×1074mm
Front Cover Material	ETFE or PET Lamination
Base Board Material	PCB board
Output Port	MC4 connect, DC5521, or USB Port Optional
Water Proof Rate	IP65
Working Temperature	-40℃ to 85℃
Warranty/Life Time	3 Years / 10 Years
Weight	4.5kg	5.4kg	8.4kg	12.0kg	16.6kg

Applications

Ideal for camping, RV travel, and outdoor adventures, these portable solar panels provide reliable off-grid power for charging devices and running small appliances. Perfect for emergency power backup during outages and essential for off-grid living in cabins or remote locations.

The lightweight, foldable design makes these panels exceptionally versatile for mobile power needs, from recreational vehicles to remote work sites. Their durable construction ensures reliable performance in all weather conditions.
