Brand Name: | Melin Sunergy |
Model Number: | CB-200W |
MOQ: | 10 |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 5000pcs per month |
One of the key features of this folding solar panel is its open size, which measures 2390X564mm. This size is perfect for capturing as much sunlight as possible and generating maximum power output. The solar cell used in this panel is mono crystalline, which is known for its high efficiency and durability. With this folding solar panel 12v, you can be sure that you are getting the most out of the sun's energy.
The output options for this folding solar panel 12v are versatile and convenient. You can choose between a USB port or a 1.5m cable with MC4 or DC5521 connectors, making it compatible with a wide range of devices and appliances. This means that you can easily charge your phone, tablet, or laptop, as well as power your camping gear or outdoor lighting.

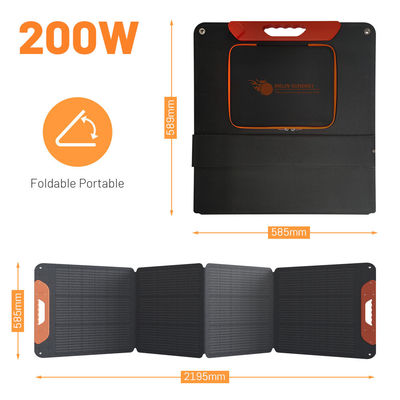

When it comes to portability, this folding solar panel is hard to beat. It can be easily folded down to a compact size of 635X564mm, making it easy to carry and store. Whether you're going on a camping trip, a road trip, or just spending time outdoors, you can easily take this folding solar panel with you and enjoy the convenience of solar power.
The front cover material of this folding solar panel is made of ETFE, which is a highly durable and efficient material that can withstand tough conditions and provide maximum light transmission. This means that you can use this folding solar panel in a variety of environments and weather conditions, without worrying about damage or performance issues.
In summary, the 200W Portable Folding Solar Panel is a reliable and efficient source of power that is perfect for outdoor enthusiasts, campers, and anyone who needs a portable and convenient power solution. With its mono crystalline solar cell, versatile output options, and durable ETFE front cover material, this folding solar panel 12v is sure to provide you with years of reliable performance and power.
Model # | CB-100W | CB-120W | CB-200W | CB-300W | CB-400W |
Pmax | 100W | 120W | 200W | 300W | 400W |
Vmax | 20V | 20V | 20V | 36V | 40V |
Imax | 5A | 6A | 10A | 8.33A | 10A |
Voc | 24V | 24V | 24V | 43.2V | 48V |
Isc | 5.25A | 6.30A | 10.5A | 8.75A | 10.5A |
Solar Cell Type | High Efficiency A Grade Mono Crystalline solar cell | ||||
Cell Efficiency | 22% | ||||
Folded Size | 615X560mm | 494X480mm | 635X564mm | 812X608mm | 1074X631mm |
Open Size | 1230X560mm | 1848X480mm | 2390X564mm | 2430X812mm | 2370X1074mm |
Front Cover Material | ETFE or PET Lamination | ||||
Solar Panel base board material | PCB board | ||||
Output Port | MC4 connect , DC5521 ,or USB Port Optional | ||||
Water Proof Rate | IP65 | ||||
Magnets Handle | Included | ||||
Working Temperature | -40 ~85℃ | ||||
Power Co-Efficiency | -0.35%/℃ | ||||
Voltage Co-Efficiency | -0.272%/℃ | ||||
Current Co-Efficiency | +0.044%/℃ | ||||
Warranty / Life Time | 3 Years /10 Years | ||||
STC | 1000W/m² , 25℃ ,AM1.5 | ||||
Weight | 4.5Kgs | 5.4Kgs | 8.4Kgs | 12.0Kgs | 16.6Kgs |
Melin Sunergy CB-200W Portable Folding Solar Panels are designed to provide clean and renewable energy for outdoor enthusiasts, adventurers, and emergency preparedness. With a power output of 200W, these portable solar panels are perfect for charging portable power stations, smartphones, laptops, cameras, and other USB devices.
The foldable design of the solar panels makes them easy to transport and store, making them ideal for camping, hiking, and other outdoor activities. The panels can be folded down to a compact size of 560 x 510 x 75 mm and weigh only 8.5Kgs, making them easy to carry on the go.
The Melin Sunergy CB-200W Portable Folding Solar Panels are compatible with most portable power stations, including the Goal Zero Yeti series, Jackery Explorer series, and the Bluetti power stations. They can also be used to charge 12V batteries, making them ideal for RVs, boats, and other off-grid applications.

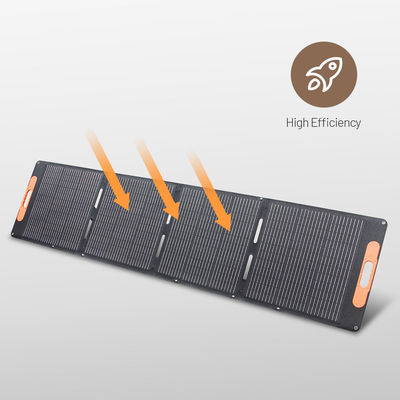

These foldable solar panels are equipped with high-efficiency solar cells that can convert up to 23% of solar energy into usable power. They are also built with durable and weather-resistant materials, making them suitable for use in harsh outdoor environments.
The Melin Sunergy CB-200W Portable Folding Solar Panels are CE and FCC certified, ensuring their quality and safety. They come with a 1-year warranty and have a working temperature range of -40℃ ~ 85℃.
These portable solar panels have a minimum order quantity of 10 and are packaged in 1pc/box. They have a delivery time of 10 days and a supply ability of 5000pcs per month, making them ideal for retailers, wholesalers, and distributors.
In summary, the Melin Sunergy CB-200W Portable Folding Solar Panels are an excellent choice for anyone looking for a foldable solar panel for portable power station, camping, hiking, and other outdoor activities. They are reliable, durable, and efficient, making them an essential tool for off-grid living and emergency preparedness.
