products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

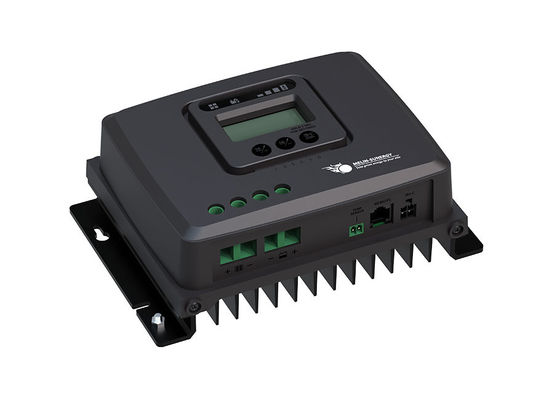

30A MPPT Solar Charge Controller with 9 Types of Battery Setting and Maximum PV Power 440W/12V 880W/24V

Name

30A MPPT Solar Charge Controller with 9 Types of Battery Setting and Maximum PV Power 440W/12V 880W/24V

Brand Name: Melin Sunergy
Model Number: MT518-30A
MOQ: 100
Payment Terms: T/T,Western Union,L/C
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
BMS Wake Up:
Yes
MPPT Tracking Efficiency:
99.5%
Ip Level:
IP43
Maximum Current:
30A
Display:
LCD Display
Mounting:
Surface Mount
Maximum Pv Power:
440W/12V , 880W/24V
Maximum Input Voltage:
100V
Packaging Details:
brown box + our carton
Supply Ability:
5000pcs per month
Highlight:

30 amp mppt solar charge controller

,

IP43 mppt solar charge controller

Product Description
LCD Display Digital 30 Amp MPPT Solar Charge Controller
The 30 amp MPPT solar charge controller efficiently manages solar systems with advanced MPPT technology and user-friendly features. This compact, IP43-rated controller ensures maximum solar panel performance with reliable digital operation.
Key Features
  • 99.5% MPPT tracking efficiency maximizes solar panel power output
  • Built-in Bluetooth for remote monitoring via smartphone app
  • BMS Wake Up function for automatic LiFePO4 battery charging
  • 5-stage charging technology (soft start, bulk, absorption, equalization, float)
  • 9 battery type settings including AGM, GEL, WET, LiFePO4, and custom options
  • IP43 rated for protection against dust and water splashes
  • Temperature compensation prolongs battery life
Technical Specifications
Product Type Intelligent MPPT solar controller
Rated Current 30A
Max Input Power 440W @12V, 880W @24V
System Voltage 12V/24V Auto
Max Input Voltage 100V Voc
MPPT Efficiency 99.5%
Conversion Efficiency 98%
Battery Types AGM, GEL, WET, Calcium, Lead Crystal, LiFePO4, LTO, LCO, Custom
Display LCD + LED
Dimensions 195×130×70mm
Weight 1090g
Warranty 2 Years
Applications
Ideal for off-grid solar systems in homes, RVs, marine applications, and remote locations. Perfect for camping, hiking, road trips, and sustainable living solutions where reliable solar power management is essential.
Customization Options
  • OEM labeling and manual customization
  • Product color variations
  • Special battery type configurations
  • Custom charging curves
  • ODM design services for special requirements
Frequently Asked Questions
Q: What is the delivery time for sample?
A: Sample delivery normally within 7 days, official orders within 25 days.
Q: What is the warranty period?
A: 2 years warranty.
Q: Does this controller have FCC or UL certificates?
A: Yes, we have CE and FCC certificates with UL compliance.
Q: What is the minimum order quantity?
A: Minimum order quantity is 100 units.
30A MPPT Solar Charge Controller with 9 Types of Battery Setting and Maximum PV Power 440W/12V 880W/24V 0
Tags:

Intelligent Solar Charge Controller

Lifepo4 Solar Charge Controller MPPT

Solar MPPT Charge Controller
