products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RV MPPT Solar Charge Controller
Created with Pixso.

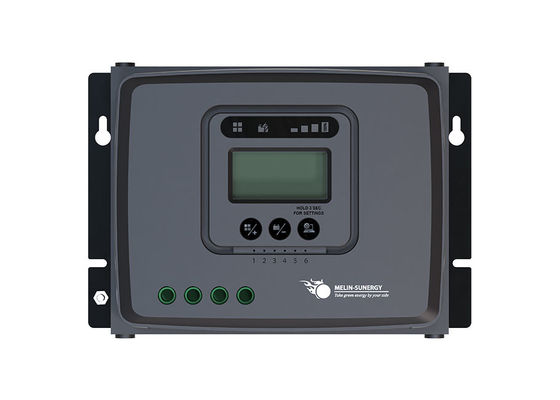

5 Stage Charging 100V Maximum Input Voltage 99.5% Tracking Efficiency MPPT Solar Charge Controller for RV

Name

5 Stage Charging 100V Maximum Input Voltage 99.5% Tracking Efficiency MPPT Solar Charge Controller for RV

Brand Name: Melin Sunergy
Model Number: MT518-30A
MOQ: 100
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
Work Temperature:
-25~+50 Degree
Maximum Input Voltage:
100V
BMS Wake Up:
Yes
Bluetooth:
Optional
Protection:
Overcharging ,undercharging,shor T Circuit,reverse Polarity
Ip Level:
IP43
Display:
LCD Display
Suitable Battery Type:
AGM ,GEL ,WET, Calcium ,Lead Crystal , LTO ,LCO ,LFP ,Customs
Rate Current:
30Amp
Packaging Details:
brown box + our carton
Supply Ability:
5000pcs per month
Highlight:

Small 30 amp MPPT Solar Charge Controller

,

IP43 30 amp MPPT Solar Charge Controller

Product Description
IP43 Small Size 30 amp MPPT Solar Charge Controller For Lifepo4 Batteries
This RV Solar Charge Controller is compatible with both 12V and 24V systems, making it suitable for a wide range of travel trailers. With built-in Bluetooth connectivity, you can monitor and manage your solar system conveniently from your smartphone.
Key Features
  • True MPPT with latest algorithm, tracking efficiency: 99.5%
  • Saves 30% more power compared to PWM controllers
  • 2-year warranty for peace of mind
  • Smart 5-stage charging technology for battery longevity
  • Maximum input voltage: 100V
  • Compatible with both lead acid and lithium batteries
  • Real-time digital LCD plus LED display
  • Built-in Bluetooth for remote monitoring
Technical Specifications
Product Name 30A RV MPPT Solar Panel Charge Controller
Product Type Intelligent MPPT solar controller
Charging Stage 5 Stage
Rated Current 30A
Maximum Input PV Power 440W @ 12V system, 880W @24V system
System Voltage 12V/24V Auto working
Maximum Input Voltage 100V Voc
MPPT Tracking Efficiency 99.5%
Charging Conversion Efficiency 98%
Suitable Battery Types Lead Acid: AGM, GEL, WET, Calcium, Lead Crystal
Lithium: LiFePO4, LTO, LCO
Custom settings available
Display LCD + LED display
BMS Wake Up Yes
Bluetooth Included
IP Rating IP43
Dimensions 195×130×70mm
Weight 1090g
Warranty 2 Years
Applications
The MT518-30A MPPT Solar Charge Controller is ideal for RVs, boats, cabins, remote homes, and industrial/commercial applications. It operates in extreme temperatures from -25°C to +50°C and features temperature compensation for optimal performance.
Customization Options
Available with a minimum order quantity of 100 units. Features surface mounting and BMS wake-up functionality for easy installation. The compact design (195×130×70mm, 1.09kg) fits various settings while delivering reliable 5-stage charging.
Frequently Asked Questions
Q: Could you produce this MPPT solar charge controller with our logo?
A: Yes, but requires meeting our OEM minimum order quantity.
Q: How big solar panel does this controller can work with?
A: Works with 440W solar panel in 12V system and 880W solar panel in 24V system.
Q: Where is this RV solar charge controller made?
A: Made in China.
Q: What is the Max. PV input of this controller?
A: Maximum PV input is 100V Voc.
Q: What is the minimum order quantity for this RV solar charge controller?
A: Minimum order quantity is 100 units.
