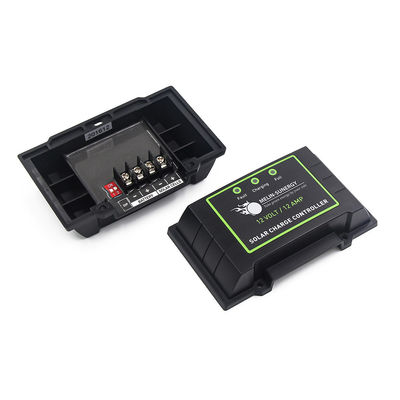

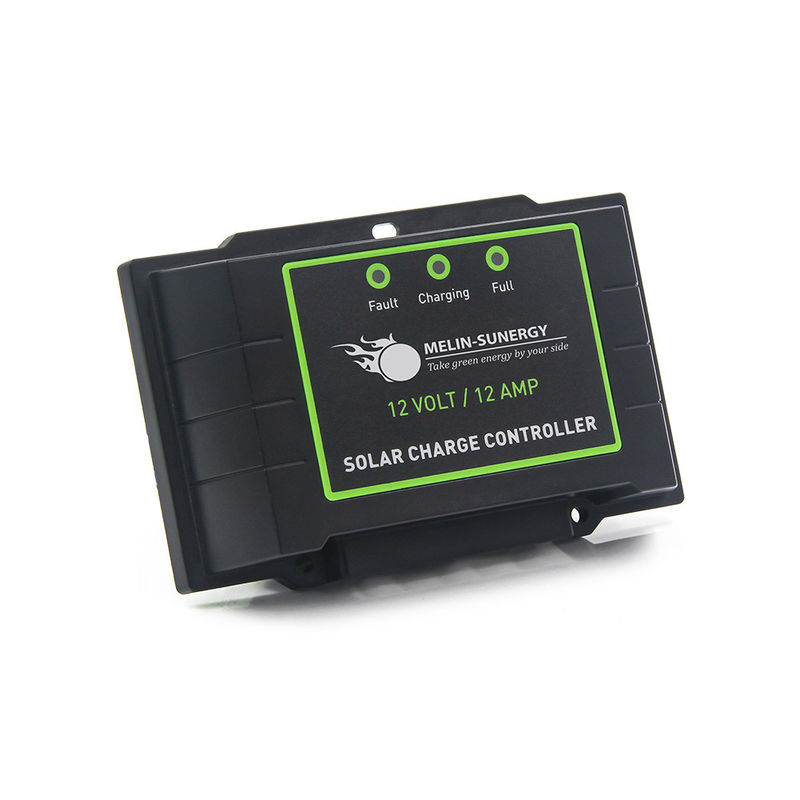

12A PWM Solar Charge Controller with Multiple Protection, PWM Smart Charging and Compact Size for AGM/GEL/WET/LiFePO4 Batteries

Name: 12A PWM Solar Charge Controller with Multiple Protection, PWM Smart Charging and Compact Size for AGM/GEL/WET/LiFePO4 Batteries
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT504-12A
Price: 8.50 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT504-12A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Protection Functions:

Short Circuit, Reverse Polarity, Overcharge, Over-Temperature

Color:

Black

Product Size:

104X65X23mm

Application:

Solar Charge Controller

Control Method:

PWM Smart Charging

Warranty:

2 Years

Charging Stages:

5 Stage Charging

Weight:

120g

Rated Current:

12A

Packaging Details:

Inner box + out carton

Supply Ability:

5000pcs per month

Highlight:

Smart Solar PWM Charge Controller

12A Solar PWM Charge Controller

Product Description

12A Smart Solar PWM Charge Controller With 5 Stage Charging And Multiple Protection

The MT504-8A Solar Charge Controller is a reliable and efficient PWM controller for 12V or 24V solar power systems. Equipped with MCU-controlled PWM technology, it prevents battery overcharging and extends battery life. Compatible with AGM, GEL, WET, and LiFePO4 batteries, this versatile controller is ideal for various applications.

Key Features

Product Name: IP67 12A PWM Solar Charge Controller
System Voltage: 12V/24V Auto
Control Method: PWM Smart Charging
Rated Current: 12A
Charging Stages: 5 Stage Charging
Compatible Battery Types: AGM, GEL, WET, and LiFePO4
Waterproof Rating: IP67
Compact Size: 104x65x23mm
Weight: 120g

Technical Specifications

Item No.	MT504-12A
Rated Current	12A
Max. Solar Power Input	220W@12V System, 440W@24V system
Nominal Solar Input Voltage	15~22V DC
Max. Solar Input Voltage	25V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type	4 Types (AGM, GEL, WET, LiFePO4 or Calcium)
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
Operation Temperature	-25~50℃/-13~122℉

Applications

This PWM solar charge controller efficiently regulates voltage and current from solar panels to batteries. Ideal for off-grid solar systems, solar street lights, and solar-powered water pumping systems. Features LED indicators for battery and solar panel status monitoring.

Support & Services

Our technical support team provides comprehensive assistance for installation and operation:

Expert technical support via phone or email
Product troubleshooting and diagnosis
Warranty repairs and replacements
Product manuals and documentation
Product training and education

Frequently Asked Questions

What is the maximum current of this PWM controller?

Max. charging current is 12A, suitable for up to 220W solar panels in 12V battery systems.

What is the difference between PWM and MPPT?

PWM controllers are more cost-effective for small low-voltage systems, while MPPT controllers are better suited for larger systems. The MT504-12A is a PWM solar controller.

How many battery settings does this controller include?

The MT504-12A features 4 battery settings (AGM, GEL, WET, and LiFePO4), easily configurable via DIP switch on the controller's backside.

What are the order and delivery details?

Minimum order quantity: 100 units. Delivery time: 25 days. Monthly supply capacity: 5000 units. Includes 2-year warranty.
