products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Digital Solar Charge Controller
Created with Pixso.

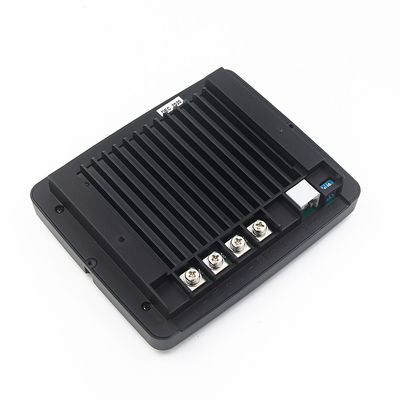

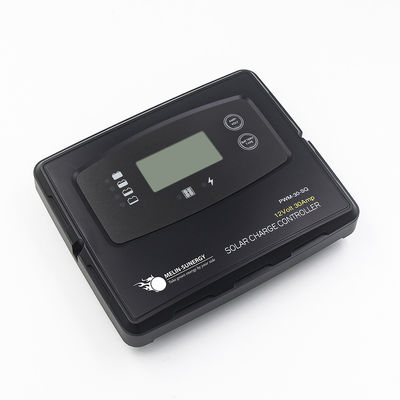

30 Amp Digital Solar Charge Controller with 5 Stage Charging and BMS Wake Up for 12V 24V Systems

Name

30 Amp Digital Solar Charge Controller with 5 Stage Charging and BMS Wake Up for 12V 24V Systems

Brand Name: Melin Sunergy
Model Number: MT515-30A
MOQ: 100
Payment Terms: Western Union,T/T,L/C
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ,FCC ,UKCA
System Voltage:
12V 24V
Rated Current:
30A
Charging Stage:
5 Stage Charging
BMS Wake Up:
Yes
Maximum Input Voltage:
50V
Color:
Black
Type:
PWM Controller
Protection:
Overcharge/Short Circuit/Reverse Polarity/Over Temperature
Packaging Details:
Inner box + out carton
Supply Ability:
5000pcs per month
Highlight:

5 Stage Digital Solar Charge Controller

,

Digital Solar Charge Controller With BMS

,

30 Amp PWM Solar Charge Controller 12V

Product Description
30 Amp 5 Stage Charging PWM Digital Solar Charge Controller 12V 24V With BMS Wake Up
This 30A PWM solar charge controller efficiently manages and regulates solar cell systems. Featuring an LCD+LED display for easy monitoring of battery status and historical data. Compatible with multiple battery types including AGM, GEL, WET, Calcium, LiFePO4, and LTO. Includes BMS Wake Up functionality and comprehensive protection features.
Key Features
  • 30A PWM digital solar charge controller with 5-stage charging
  • Supports 6 battery types: AGM, GEL, WET, Calcium, LiFePO4, LTO
  • LCD+LED display with historical data tracking
  • BMS Wake Up function for lithium batteries
  • Temperature compensation function (requires optional sensor)
  • Comprehensive protection: Overcharge, Short Circuit, Reverse Polarity, Over Temperature
  • Compact flush mount design (155*125*38mm)
  • 2-year warranty
Technical Specifications
Item No. MT515-30A
Rated Current 30A
Max. Solar Power Input 570W@12V system, 1140W@24V
Nominal Solar Input Voltage 15-22V DC
Max. Solar Input Voltage 25V DC
Charging Stage 5 Stage (Soft Start-Bulk-Absorption-Equalization-Float)
Protection Features Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating IP22
Mounting Method Wall mount
Dimensions 155*125*38mm
Weight 460g
Operation Temperature -25°C to 50°C (-13°F to 122°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Applications
  • Residential solar power systems
  • Off-grid solar power systems
  • RV solar power systems
  • Marine solar power systems
  • Industrial solar power systems
Frequently Asked Questions
What is the brand name of the digital solar charge controller?
The brand name is Melin Sunergy.
Can you customize battery types for this controller?
Yes, we offer ODM services and have customized battery types for customers.
Where is the controller manufactured?
The controller is manufactured in China.
Should the controller be installed near solar panels or batteries?
The controller should be installed close to the battery.
What is the minimum order quantity?
Minimum order quantity is 100 units.
What is the delivery time?
Standard delivery time is 25 days.
What is the monthly production capacity?
Production capacity is 5000 units per month.
