| Brand Name: | Melin Sunergy |
| Model Number: | MT515-30A |
| MOQ: | 100 |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 5000pcs per month |

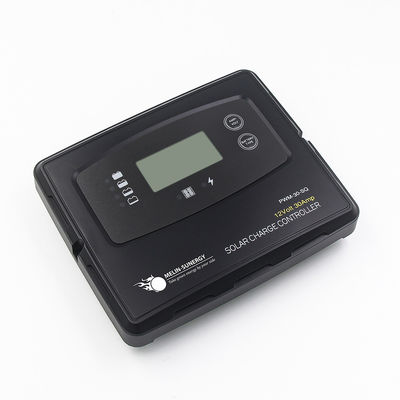

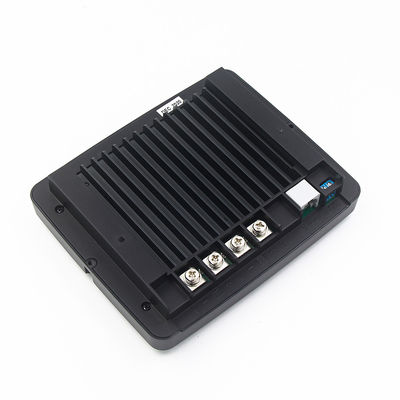

30A 5 Stage Charging PWM Solar Charge Controller 12V 24V With BMS Wake Up
This 30a solar charge controller is perfect for managing and regulating the charge of your solar cell system. With its LCD+LED display, you can easily monitor your battery and historical data. It supports a variety of battery types including AGM, GEL, WET, Calcium, LiFePO4, and LTO. Additionally, it has a BMS Wake Up feature and measures 155X125X38mm in size.
This 30a pwm solar controller are coming with a BSM wake up function when charging a lithium battery . When the lithium battery voltage low , BMS may protect your battery make it can not been charged . With the BMS wake up function , the controller will can easy wake up the BMS and let the battery can be charged at once .
Not only does it provide optimal charging, but it also has a range of protection features including Overcharge, Short Circuit, Reverse Polarity and Over Temperature protection. This 30A solar charge controller is designed to give you peace of mind knowing that your battery and solar panel are both protected.
Another feature of this 30A pwm solar charge controller is temperature compensation function . Our controller will charge the battery with different voltage according to different temperature to let the battery been charged in a more soft way at any time . (Temperature compensation function will need to use with the optional temperature sensor cable ) .
Measuring at 155X125X38mm, this compact and portable solar panel battery regulator is perfect for those who are always on the go. Whether you're camping or traveling on the road, this charge controller is the ideal solution for keeping your battery charged and ready to go. With a rated current of 30A and a maximum PV power of 570W @ 12V and 1140W @ 24V, this digital solar charge controller is the perfect choice for those who need a reliable and efficient way to manage their solar panel battery regulator.
Technical Parameters:
| Item No. | MT515-30A |
| Rated Current | 30A |
| Max. Solar Power Input | 570W@12V system , 1140W @24 |
| Norminal Solar Input Voltage | 15~22V DC |
| Max. Solar Input Voltage | 25V DC |
| Lowest Operation Voltage | 9V DC |
| Charging Stage | 5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float) |
| Battery Type | 6 Types of Battery (AGM, GEL, WET ,Calciium,LTO & LiFePO4) |
| Min. Battery voltage | 3V DC |
| Protection | Over Charge , Input & Output Reverse Polarity , Short Circuit , Over temperature, |
| IP Rate | IP22 |
| Mounting method | Wall mount |
| Size | 155X125X38mm |
| Weight | 460g |
| Operation Temperature | -25~50℃/-13~122℉ |
| Storage Temperature | -40~85℃/-40~185℉ |
This solar charge controller is suitable for AGM batteries and has a capacity of 30 amps. It is also known as a solar cell charge controller.
The MT515 is a versatile solar charge controller that can be used in various scenarios. Here are some product application occasions:
The MT515 is suitable for use in scenarios where the maximum input voltage is 50V, and the IP level is IP22. The historical data feature allows users to track the performance of their solar power systems over time. The BMS wake up feature ensures that the battery is protected from overcharging and over-discharging.
The MT515 is an excellent choice for those who are looking for a solar charge controller for lithium batteries. This product is compatible with LiFePO4 and LTO batteries, making it ideal for those who want to use lithium batteries in their solar power systems.
In conclusion, the Melin Sunergy MT515 is a reliable and versatile 30 amp solar charge controller that can be used in a wide range of scenarios. Its compatibility with various battery types, including lithium batteries, makes it an excellent choice for those who want to build a solar power system with advanced features.
The Digital Solar Charge Controller is a sophisticated device that manages the power generated by solar panels and charges batteries efficiently. It features advanced MPPT (Maximum Power Point Tracking) technology that can maximize the energy yield of the solar panels. The controller also comes equipped with various protection functions such as overcharging, over-discharging, short circuit, and reverse polarity protection to ensure the safety of the battery.
Our product technical support team is always available to assist you with any issues or questions you may have with your Digital Solar Charge Controller. We also offer a range of services including installation support, troubleshooting, and repair services to ensure your controller is functioning optimally.
Q: What is the brand name of the digital solar charge controller?
A: The brand name of the digital solar charge controller is Melin Sunergy.
Q: Are you able to ODM special battery type on this controller ?
A: Yes ,we can , actually we already done this for some of our customer .
Q: Where is the digital solar charge controller manufactured?
A: The digital solar charge controller is manufactured in China.
Q: If I should install the controller close to solar panel or close to battery ?
A: The solar charge controller should be installed close to the battery .
Q: What is the minimum order quantity for the digital solar charge controller?
A: The minimum order quantity for the digital solar charge controller is 100 units.
Q: What is the delivery time for the digital solar charge controller?
A: The delivery time for the digital solar charge controller is 25 days.
Q: What is the supply ability of the digital solar charge controller?
A: The supply ability of the digital solar charge controller is 5000 units per month.
