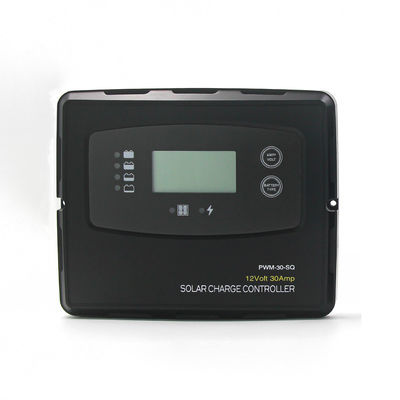

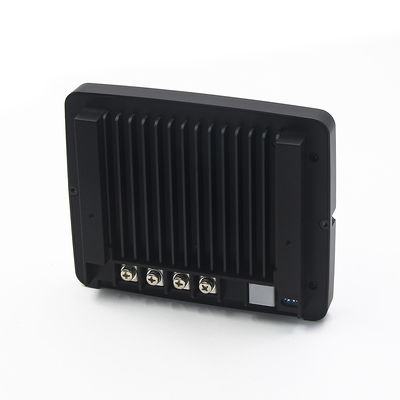

Flush Mount 30A 40A PWM Solar Charge Controller with 50V Maximum Input and IP22 Rating

Flush Mount 30A 40A PWM Solar Charge Controller with 50V Maximum Input and IP22 Rating

Brand Name:	Melin Sunergy
Model Number:	MT515-30A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Rated Current:

30A

Display:

LCD+LED

Type:

PWM Controller

Charging Stage:

5 Stage Charging

BMS Wake Up:

Yes

Color:

Black

Battery Type:

AGM ,GEL ,WET,Calcium ,LiFePO4 ,LTO

Maximum Input Voltage:

50V

Packaging Details:

Inner box + out carton

Supply Ability:

5000pcs per month

Highlight:

Flush Mount 40A PWM Solar Charge Controller

40A PWM Solar Charge Controller 12V

Rohs Solar Charge Controller 12V 24V

Product Description

Flush Mount 30A 40A PWM Solar Charge Controller Rohs Solar Charge Controller 12V 24V

Advanced Flush Mount 30A LCD LED PWM Rohs Solar Charge Controller 40amp 12V 24V

The Digital Solar Charge Controller features a range of protective measures, including protection against overcharge, short circuit, reverse polarity, and over temperature. This ensures that your battery and connected devices are always safe and secure. The maximum input voltage for this controller is 50V, making it suitable for a wide range of solar power systems.

The Digital Solar Charge Controller measures 155×125×38mm, making it compact and easy to install. The controller is lightweight (460g) and features a wall-mount design for convenient placement. Its compact size allows for easy storage when not in use.

Key features include the BMS Wake Up function which automatically activates when battery voltage drops, ensuring continuous charging readiness. The controller also features temperature compensation (requires optional temperature sensor cable) to adjust charging voltage based on ambient conditions for optimal battery health.

Key Features

Product Name: Digital 30A Solar Charge Controller
Type: PWM Controller
Max. PV Power: 570W @ 12V, 1140W @ 24V
BMS Wake Up: Yes
Historical Data: Yes
IP Level: IP22
30A Solar Charge Controller
5 Stage Charging technology
6 Types of battery setting (AGM, GEL, WET, Calcium, LiFePO4, LTO)
BMS Wake Up function
2 Years Warranty

Technical Specifications

Item No.	MT515-30A
Rated Current	30A
Max. Solar Power Input	570W@12V system, 1140W @24V
Nominal Solar Input Voltage	15~22V DC
Max. Solar Input Voltage	25V DC
Lowest Operation Voltage	9V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type	6 Types of Battery (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Min. Battery voltage	3V DC
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP65
Mounting method	Wall mount
Size	155×125×38mm
Weight	460g
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉

Applications

The MT515 solar charge controller is suitable for various applications including solar-powered vehicles, boats, homes, and industrial systems. Its compatibility with multiple battery types (AGM, GEL, WET, Calcium, LiFePO4, and LTO) makes it versatile for different environments. The IP22 protection rating allows for both indoor and outdoor use, while the LCD+LED display provides clear monitoring of charging status.

Support and Services

Our technical support team is available to assist with installation, maintenance, and troubleshooting. The controller includes multiple protection functions (overcharge, over-discharge, overload, short circuit, and reverse polarity) and comes with a detailed user manual for proper setup and operation.

Frequently Asked Questions

What is the brand name of this solar charge controller?

The brand name is Melin Sunergy.

What is the model number of this solar charge controller?

The model number is MT515.

Where is this solar charge controller manufactured?

The place of origin is China.

What certifications does this solar charge controller have?

It has CE, FCC, and UKCA certifications.

What is the minimum order quantity for this solar charge controller?

The minimum order quantity is 100.

What is the delivery time for this solar charge controller?

The delivery time is 25 days.

What is the supply ability of this solar charge controller?

The supply ability is 5000pcs per month.
