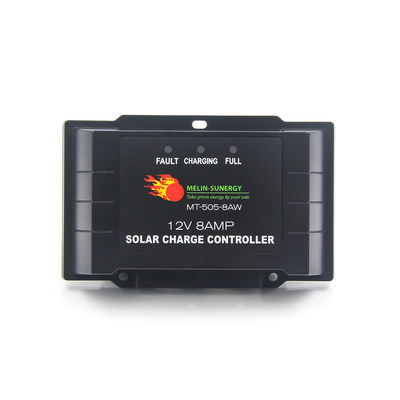

Black 12V 24V Auto PWM Solar Charge Controller with 5 Stage Charging and IP67 Waterproof

Name: Black 12V 24V Auto PWM Solar Charge Controller with 5 Stage Charging and IP67 Waterproof
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT504-8A
Price: 8.50 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT504-8A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Rated Current:

Product Size:

104X65X23mm

Water Proof:

IP67

Charging Stages:

5 Stage Charging

Warranty:

2 Years

Display:

LED Indicator

Max. PV Voltage:

50V

Color:

Black

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

Intelligent PWM Solar Charge Controller

PWM Solar Charge Controller IP67

12V 24V Solar Charge Controller

Product Description

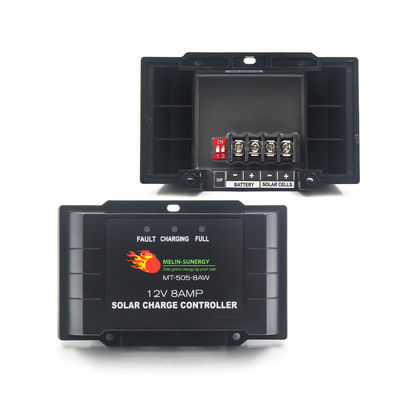

MT504-8A PWM Solar Charge Controller

Intelligent 8A 12V/24V IP67 Waterproof Solar Controller

The MT504 Solar Panel Charge Controller is a reliable and efficient PWM controller for 12V or 24V solar power systems. Equipped with MCU-controlled PWM technology, it provides high-efficiency operation while protecting your battery from overcharging and extending battery life.

Key Features

5-stage charging technology (Soft Start-Bulk-Absorption-Equalization-Float)
Auto-detection for 12V/24V systems
Compatible with AGM, GEL, WET and LiFePO4 Lithium batteries
Compact and lightweight design (120g)
IP67 waterproof rating for harsh weather conditions
LED indicator display
ROHS compliant for environmental safety
2-year warranty for peace of mind

Technical Specifications

Item No.	MT504-8A
Rated Current	8A
Max. Solar Power Input	140W
Nominal Solar Input Voltage	15-22V DC
Max. Solar Input Voltage	25V DC
Battery Types	AGM, GEL, WET, LiFePO4
Protections	Over Charge, Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP67
Dimensions	104×65×23mm
Weight	120g
Operation Temperature	-40°C to 85°C (-40°F to 185°F)

Applications

The MT504-8A waterproof PWM solar controller is designed for various off-grid applications:

Small off-grid solar charging systems for boats and marine use
RV solar power systems
Portable solar charging kits for different battery types
Remote area off-grid solar power systems

Support & Services

Our technical support team provides comprehensive assistance including:

Product installation guidance
Troubleshooting and problem resolution
Warranty support
Product documentation and specifications
Customization options available for specific project requirements

Frequently Asked Questions

What is the maximum current capacity of the MT504-8A charge controller?

The MT504-8A charge controller has a maximum current capacity of 8 amps.

What types of batteries are compatible with this charge controller?

The MT504-8A charge controller is compatible with AGM, GEL, WET and LiFePO4 Lithium batteries.

Is the MT504-8A charge controller waterproof?

Yes, the MT504-8A charge controller has IP67 waterproof rating.

What certifications does the MT504-8A charge controller have?

The MT504-8A charge controller is CE, FCC, and UKCA certified.
