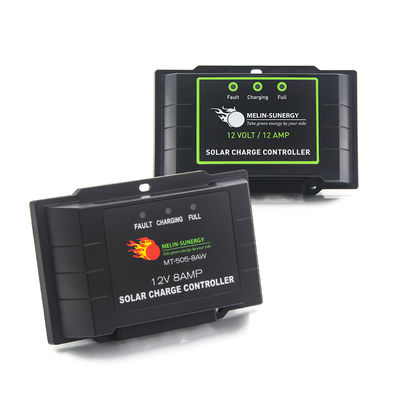

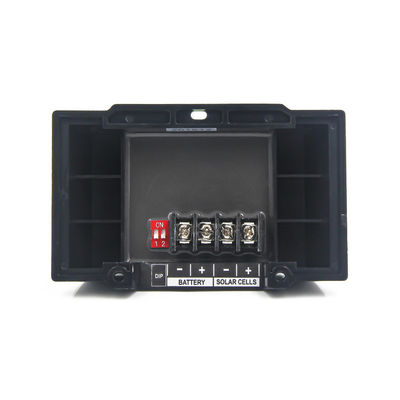

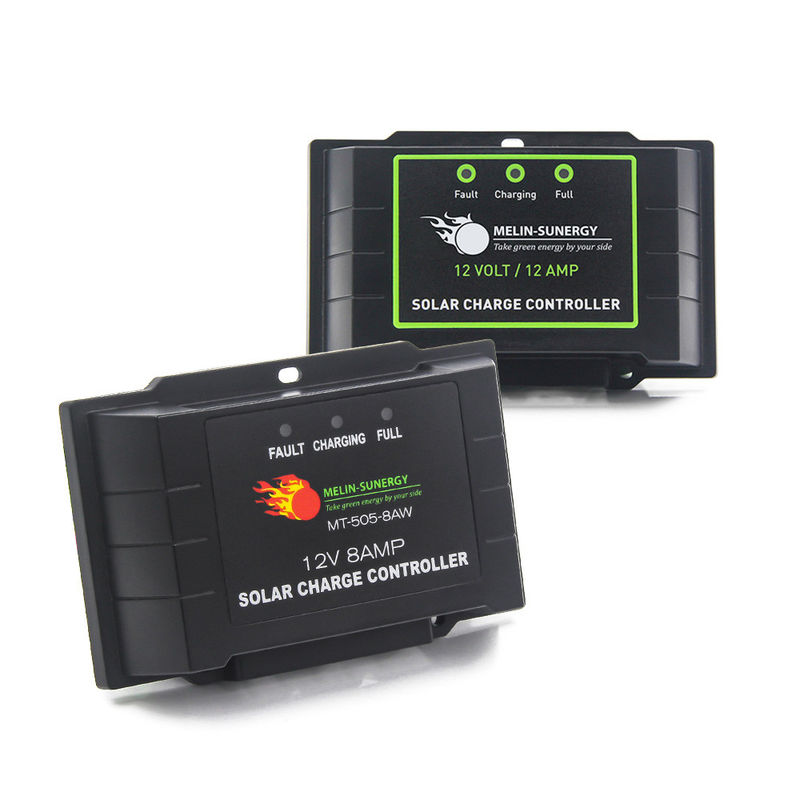

Compact 8A PWM Solar Charge Controller with LED Indicator and 2 Years Warranty for 12V 24V Systems

Name: Compact 8A PWM Solar Charge Controller with LED Indicator and 2 Years Warranty for 12V 24V Systems
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT504-8A
Price: 8.50 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT504-8A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Rated Current:

8Amp

Charging Stages:

5 Stage Charging

Water Proof:

IP67

Battery Type:

AGM ,GEL ,WET ,LiFePO4

System Voltage:

12V 24V Auto Working

Weight:

120g

Display:

LED Indicator

Protection Functions:

Short Circuit, Reverse Polarity, Overcharge, Over-Temperature

Warranty:

2 Years

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

PWM Solar Charge Controller Regulator

Compact PWM Solar Charge Controller

24V Lifepo4 Solar Charge Controller

Product Description

Compact PWM Solar Charge Controller Regulator 8A 12V 24V Lifepo4 Solar Charge Controller

The MT504 8A PWM Solar Charge Controller is a reliable and efficient controller for 12V or 24V solar power systems. Equipped with MCU-controlled PWM technology, it ensures high-efficiency operation while protecting your battery from overcharging and extending battery life.

Key Features

5-stage charging technology (Soft Start, Bulk, Absorption, Equalization, Float)
Compatible with AGM, GEL, WET, and LiFePO4 batteries
Comprehensive protection: Short Circuit, Reverse Polarity, Overcharge, Over-Temperature
Compact dimensions: 104×65×23mm
IP67 waterproof rating
2-year warranty
LED indicator display for real-time monitoring

Technical Specifications

Item No.	MT504-8A
Rated Current	8A
Max. Solar Power Input	140W
Nominal Solar Input Voltage	15~22V DC
Max. Solar Input Voltage	25V DC
Battery Types	AGM, GEL, WET, LiFePO4 or Calcium
Protection Features	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP65
Dimensions	104×65×23mm
Weight	120g
Storage Temperature	-40~85℃/-40~185℉

Applications

The MT504-8A PWM Solar Charge Controller is ideal for various off-grid solar applications, including marine environments and harsh outdoor conditions. Its waterproof design (IP67 rated) and compatibility with multiple battery types make it a versatile solution for different solar power systems.

Frequently Asked Questions

Q: How big solar panel does this controller work with?

A: MT504-8A can work with maximum 140W solar panel in 12V system and 280W in 24V system.

Q: What is the warranty period?

A: We provide 2 years manufacturer warranty.

Q: What cable size should be used with this controller?

A: For cables between controller and battery (length ≤1m), use 14AWG cable. For solar panel connections (length ≤6m), use 14AWG cable.

Q: What is the minimum order quantity?

A: The minimum order quantity is 100 units.
