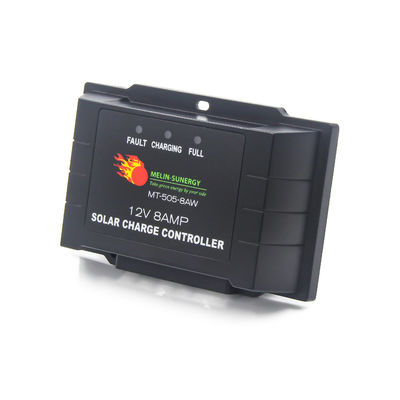

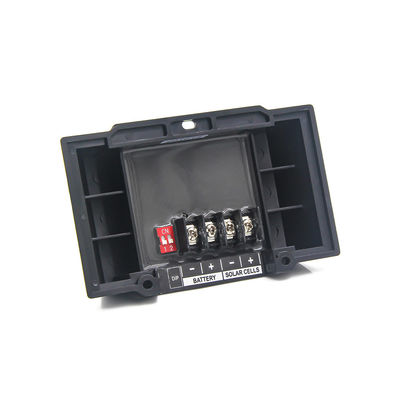

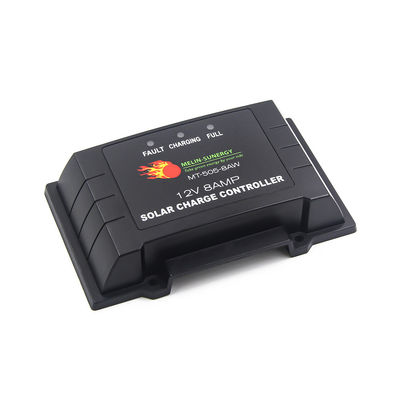

Compact Lightweight PWM Solar Charge Controller with LED Indicator for 12V/24V Systems

Compact Lightweight PWM Solar Charge Controller with LED Indicator for 12V/24V Systems

Brand Name:	Melin Sunergy
Model Number:	MT504-8A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Rate Current:

Weight:

120g

Protection Level:

IP67

Control Method:

PWM Smart Charging

Max. PV Voltage:

50V

Charging Stages:

5 Stage Charging

Display:

LED Indicator

Protection Functions:

Short Circuit, Reverse Polarity, Overcharge, Over-Temperature

Product Size:

104X65X23mm

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

PWM Solar Charge Controller Manual

IP67 PWM Solar Charge Controller

Small 12V Solar Panel Charge Controller

Product Description

Small Size IP67 PWM Solar Charge Controller Manual 24V 12V

Compact and Efficient Solar Power Management

The PWM Solar Charge Controller is a compact, lightweight solution measuring just 104×65×23mm and weighing 120g. Its IP67 waterproof rating makes it ideal for outdoor and marine applications, providing reliable performance in challenging environments.

Key Features

8A rated current with 140W max solar power input
Automatic 12V/24V system voltage detection
5-stage charging: Soft Start, Bulk, Absorption, Equalization, Float
Supports multiple battery types: AGM, GEL, WET, LiFePO4
Comprehensive protection: Overcharge, reverse polarity, short circuit, over-temperature
LED indicator display for easy monitoring
IP67 waterproof enclosure for outdoor durability
2-year warranty for peace of mind

Technical Specifications

Item No.	MT504-8A
Rated Current	8A
Max. Solar Power Input	140W (12V system), 280W (24V system)
Nominal Solar Input Voltage	15-22V DC
Battery Compatibility	AGM, GEL, WET, LiFePO4 (12V/24V)
Operation Temperature	-25°C to 50°C (-13°F to 122°F)
Dimensions	104×65×23mm
Weight	120g

Applications

Ideal for small to medium off-grid solar systems, including RVs, boats, cabins, and remote monitoring stations. The compact design fits easily into existing setups while providing professional-grade charge management.

Frequently Asked Questions

Q: What size solar panel should be used with this controller?

A: Maximum recommended is 140W for 12V systems and 280W for 24V systems.

Q: Can I use a 24V solar panel to charge a 12V battery?

A: Not recommended as it causes significant power waste. Solar panel and battery voltages should match (12V panel for 12V battery, 24V panel for 24V battery).

Q: Where should the controller be installed?

A: For maximum charging efficiency, install close to the battery.

Support & Services

Includes comprehensive user manual, 2-year warranty, technical support, and repair services. Our customer support team is available to assist with any installation or operational questions.

Ordering Information

Minimum order quantity: 100 units
Delivery time: 25 days
Monthly production capacity: 5,000 units
