10A MPPT Solar Charge Controller with 100V Input Voltage and 560W Maximum PV Power for RV Solar Systems

Name: 10A MPPT Solar Charge Controller with 100V Input Voltage and 560W Maximum PV Power for RV Solar Systems
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT518-10A
Price: 82.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT518-10A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Maximum Current:

10A

Maximum Input Voltage:

100V

System Voltage:

12V/24V/36V/48V

Suitable Battery:

AGM ,GEL ,WET ,Calcium ,LiFePO4 ,LTO

Protection:

Overcharging ,shor T Circuit,reverse Polarity

Weight:

680g

Temperature Compensation:

Yes

Ip Level:

IP43

Maximum Pv Power:

560W

Color:

Black

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

Solar MPPT Charge Controller 100V

Solar MPPT Charge Controller IP43

10a MPPT Solar Charge Controller IP43

Product Description

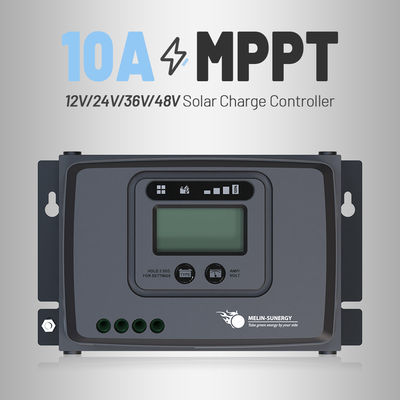

10A Solar MPPT Charge Controller With 100V Input Voltage IP43 Protection

The MT518-10A RV Solar Charge Controller is an intelligent MPPT (Maximum Power Point Tracking) solar controller designed with the latest algorithm that achieves MPPT tracking efficiency above 99.5%. Specifically designed for RV applications with high voltage battery systems, it ensures efficient and reliable battery charging.

Key Advantages

True MPPT technology with 99.5% tracking efficiency
Delivers 30% more power compared to PWM controllers
Maximum PV power input of 560W @ 48V system
Real-time LCD display showing battery voltage, charging current, and power
Built-in Bluetooth for remote monitoring via smartphone
Compatible with 12V/24V/36V/48V battery systems
IP43 protection rating for splash resistance
Works with both lead-acid and lithium batteries

Technical Specifications

Product Name	MT518-10A RV MPPT Solar Panel Charge Regulator
Product Type	Intelligent MPPT solar controller
Charging Stage	5 Stage
Rated Current	10A
Maximum Input PV Power	140W @ 12V, 280W @ 24V, 420W @ 36V, 560W @ 48V
System Voltage	12V/24V/36V/48V Auto working
Maximum Input Voltage	100V Voc
MPPT Tracking Efficiency	99.5%
Charging Conversion Efficiency	98%

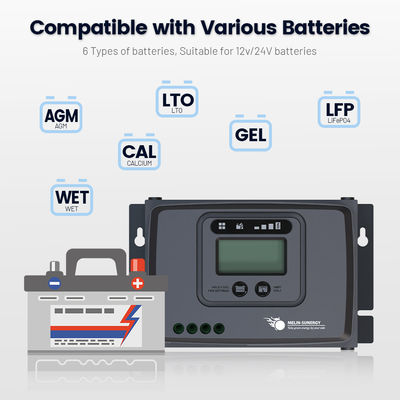

Suitable Battery Types	Lead Acid: AGM, GEL, WET, Calcium Lithium: LiFePO4, LTO, LCO
Display	LCD + LED display
BMS Wake Up	Yes
Bluetooth	Included
IP Level	IP43
Dimensions	180×110×70mm
Weight	680g
Warranty	2 Years

Applications

The MT518-10A is ideal for various solar power applications requiring efficient energy management:

RV and motorhome systems with 12V lead-acid or lithium batteries
Marine and boat applications (IP43 splash-proof rating)
Off-grid living and remote power systems
Commercial vehicles and trucks with high voltage battery systems

Package Contents

1 × RV Solar Charge Controller
1 × User Manual
Mounting Hardware

Shipping Options

Standard Sea Shipping: 7-30 business days
Standard Air Shipping: 7-15 business days
Express Shipping: 3-5 business days (DHL, FedEx, UPS)

Frequently Asked Questions

What is the brand name of this item?

The brand name is Melin Sunergy.

What is the model number?

The model number is MT518-10A.

Where is this controller manufactured?

The RV solar charge controller is made in China.

What certifications does it have?

CE, FCC, and UKCA certifications.

What is the minimum order quantity?

The minimum order quantity is 100 units.
