products details

Home Products

Smart RV MPPT Solar Charge Controller with 5-Stage Charging 99.5% Tracking Efficiency for AGM/GEL/WET Batteries

Name: Smart RV MPPT Solar Charge Controller with 5-Stage Charging 99.5% Tracking Efficiency for AGM/GEL/WET Batteries
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT518-10A
Price: 82.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT518-10A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Type:

MPPT Controller

Maximum Current:

10A

Maximum Pv Power:

560W

Suitable Battery Type:

AGM , GEL , WET , Calcium , ,LiFePO4 ,LTO ,LCO

Work Temperature:

-25~+50 Degree

Bluetooth:

Optional

Mounting:

Surface Mount

Protection:

Overcharging ,undercharging,shor T Circuit,reverse Polarity

Ip Level:

IP43

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

RV MPPT Solar Charge Controller 560W

RV MPPT Solar Charge Controller With Bluetooth

Smart MPPT Charge Controller IP43

Product Description

Smart RV MPPT Solar Charge Controller With Bluetooth 560W IP43 Protection

Product Description

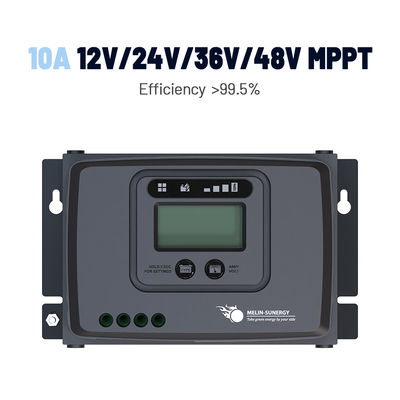

The MT518 RV MPPT Solar Charge Controller is an intelligent wall-mount MPPT solar controller designed for RV solar systems. It protects batteries from overcharging and prevents reverse charging back to solar panels at night. With 5-stage charging technology and 7 battery type settings, it helps prevent battery sulfation and extends battery life.

This controller features a 5-stage charging process (Soft Start, Bulk, Absorption, Equalization, Float, and Monitoring) to ensure efficient and safe battery charging, maximizing capacity and lifespan.

As a 10A MPPT solar charge controller, it uses Maximum Power Point Tracking technology to optimize power output from solar panels, delivering maximum available power to batteries for faster charging and increased efficiency.

Built to withstand harsh weather conditions, this durable device comes with a 2-year warranty. Its compact dimensions (180×110×70mm) and lightweight design (680g) make it easy to install in various outdoor settings.

Key Features

Product Name: RV Solar Charge Controller
Color: Black
Protection: Overcharging, undercharging, short circuit, reverse polarity
Warranty: 2 Years
BMS Wake Up: Yes
Suitable battery types: AGM, GEL, WET, Calcium, LiFePO4, LTO, LCO
48V MPPT charge controller
10A MPPT solar charge controller

Technical Specifications

Product Name	MT518-10A RV MPPT Solar Panel Charge Regulator
Product Type	Intelligent MPPT solar controller
Charging Stage	5 Stage
Rated Current	10A
Maximum Input PV Power	140W @ 12V system, 280W @24V system, 420W @ 36V system, 560W @ 48V system
System Voltage	12V/24V/36V/48V Auto working
Maximum Input Voltage	100V Voc
MPPT Tracking Efficiency	99.5%
Charging Conversion Efficiency	98%
Suitable Battery Type	Lead Acid: AGM, GEL, WET, Calcium; Lithium: LiFePO4, LTO, LCO
Display	LCD + Fashion LED display
Bluetooth	Included
IP Level	IP43
Size	180×110×70mm
Weight	680g
Warranty	2 Years

Applications

With 99.5% MPPT tracking efficiency, this controller maximizes power extraction from solar panels even in low-light conditions. Its flexible system voltage supports 12V/24V/36V/48V battery systems. Certified to meet CE, FCC, and UKCA standards, it's suitable for RVs, camping, and off-grid power needs.

Packaging & Shipping

The controller ships in a sturdy cardboard box with foam inserts, sealed in a clear plastic bag. Includes user manual and necessary cables/accessories. Standard shipping with tracking number provided.

Frequently Asked Questions

Q: Does this MPPT controller charge LFP batteries?

A: Yes, the MT518-10A can charge 12V, 24V, 36V and 48V LiFePO4 Lithium batteries.

Q: What is the model number?

A: MT518-10A.

Q: Where is it manufactured?

A: China.

Q: What is the maximum input voltage?

A: 100V Voc.

Q: What is the warranty?

A: 2-year manufacturer warranty.
