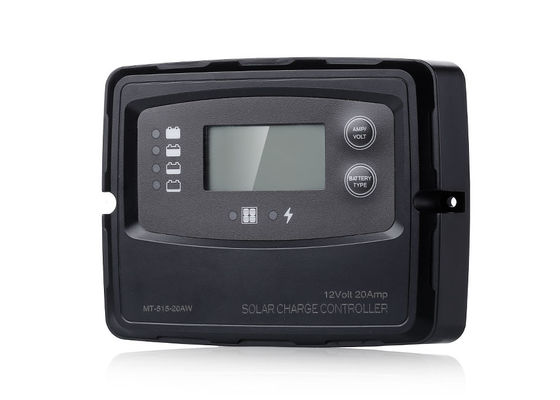

IP67 Waterproof 20A 12V 24V Auto PWM Solar Charge Controller with LCD+LED Display and 760W Max PV Power

Name: IP67 Waterproof 20A 12V 24V Auto PWM Solar Charge Controller with LCD+LED Display and 760W Max PV Power
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT515
Price: 58.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT515
MOQ:	100
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Rated Current:

20A

Color:

Black

System Voltage:

12V 24V Auto

Charging Stage:

5 Stage Charging

Battery Type:

AGM ,GEL ,WET,Calcium ,LiFePO4 ,LTO

Display:

LCD+LED

BMS Wake Up:

Yes

Max. PV Power.:

760W @ 24V ,380W @ 12V

Temperature Compensation:

Yes

IP Level:

IP67

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

12V 20 Amp Solar Charge Controller

IP67 20 Amp Solar Charge Controller

LCD Solar Charge Controller 24V

Product Description

IP67 LCD 5 Stage 12V 20 Amp Solar Charge Controller 24V PWM Charge Controller

Product Description

The MT515 Digital 20 Amp Solar Charge Controller is a reliable and efficient PWM controller for 12V or 24V solar power systems. Utilizing MCU-controlled PWM technology, it ensures high-efficiency operation while protecting your battery from overcharging and extending battery life.

This controller supports multiple battery types including AGM, GEL, WET, Calcium, LiFePO4, and LTO. Its advanced 5-stage charging technology (soft start, bulk, absorption, equalization, and float) provides optimal charging performance tailored to each battery type, significantly extending battery lifespan.

Key Features

Advanced MCU control pulse width modulated (PWM) technology
Compatible with AGM, GEL, WET, Calcium, LiFePO4, and LTO batteries
LCD+LED display for clear status monitoring
BMS Wake Up function
5-stage charging technology (Soft Start-Bulk-Absorption-Equalization-Float)
Temperature compensation function
IP67 waterproof rating for outdoor durability
2-year warranty for peace of mind

Technical Specifications

Item No.	MT515-20A
Rated Current	20A
Max. Solar Power Input	380W @ 12V system
Nominal Solar Input Voltage	15~44V DC
Max. Solar Input Voltage	50V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP67
Dimensions	130×102×35mm
Weight	250g
Operation Temperature	-25~50℃/-13~122℉

Applications

The MT515 is ideal for various solar power applications from small systems to commercial installations. Its IP67 rating makes it suitable for harsh outdoor environments, being dust-tight and waterproof up to 1 meter depth. With a maximum PV power output of 760W at 24V and 380W at 12V, it accommodates diverse solar panel configurations.

Support & Services

Comprehensive user manual and installation guide
24/7 customer support via email or phone
Two-year warranty with free repairs or replacement
Regular software updates for optimum performance
Remote monitoring and troubleshooting services

Frequently Asked Questions

Q: What is the brand name of this solar charge controller?

A: The brand name is Melin Sunergy.

Q: What is the model number of this solar charge controller?

A: The model number is MT515.

Q: What certifications does this solar charge controller have?

A: It has CE, FCC, and UKCA certifications.
