Intelligent 5 Stage Charging 20A Marine Solar Charge Controller with 760W Max PV Power and BMS Wake Up

Intelligent 5 Stage Charging 20A Marine Solar Charge Controller with 760W Max PV Power and BMS Wake Up

Brand Name:	Melin Sunergy
Model Number:	MT515-20A
MOQ:	100
Payment Terms:	T/T,Western Union,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ,FCC ,UKCA

Rated Current:

20A

Maximum Input Voltage:

50V

Dimensions:

102X130X27mm

BMS Wake Up:

Yes

Max. PV Power.:

760W @ 24V ,380W @ 12V

Protection:

Overcharge/Short Circuit/Reverse Polarity

Temperature Compensation:

Yes

Charging Stage:

5 Stage Charging

IP Level:

IP67

Warranty:

2 Years

Packaging Details:

brown box + our carton

Highlight:

20A Marine Solar Charge Controller

Intelligent Marine Solar Charge Controller

20A Solar Charge Controller With BMS

Product Description

Intelligent 5 Stage Charging 20A Marine Solar Charge Controller With BMS Wake Up

The MT515 Digital 20 amp Solar Charge Controller is a reliable and efficient PWM controller for 12V or 24V solar power systems. Equipped with MCU control PWM technology, it ensures high-efficiency operation while protecting your battery from overcharging and extending battery life.

The 5-stage charging process (Soft Start, Bulk, Absorption, Equalization, Float) optimizes battery charging, ensuring full capacity while protecting against overcharging and other common issues. The BMS wake-up feature allows charging even when batteries are in a low-power state.

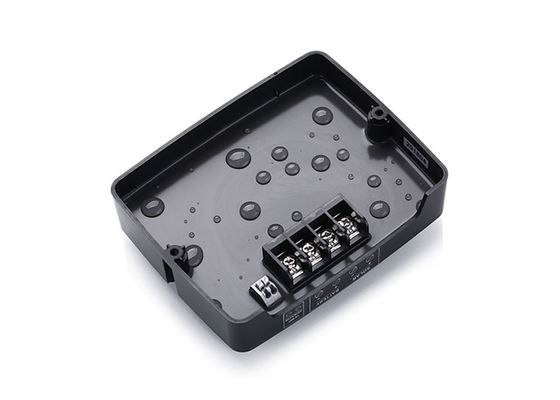

Built with durability in mind, the controller features an IP67 rating for protection against dust and water. Its compact dimensions (102×130×27mm) make it easy to install in various environments, including outdoor and industrial settings.

Key Features

Advanced MCU control PWM technology for high-efficiency operation

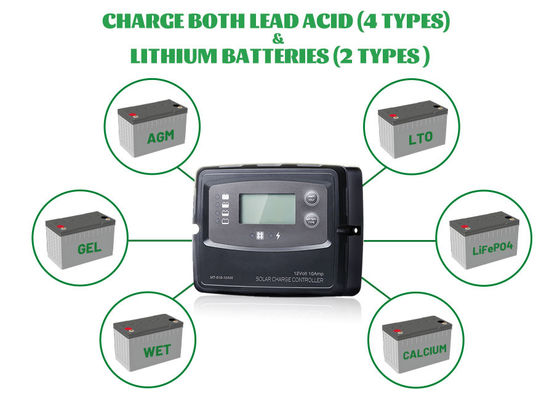

Compatible with Gel, AGM, Conventional lead-acid (WET), Calcium, LiFePO4, and LTO batteries
IP67 protection rating
BMS wake-up functionality
LCD+LED display
Temperature compensation
Multiple charging protections: reverse polarity, short circuit, over temperature, over voltage

Technical Specifications

Item No.	MT515-20A
Rated Current	20A
Max. Solar Power Input	380W @ 12V system
Nominal Solar Input Voltage	15~44V DC
Max. Solar Input Voltage	50V DC
Charging Stage	5 Stage Charging (Soft Start-Bulk-Absorption-Equalization-Float)
Battery Type	6 Types (AGM, GEL, WET, Calcium, LTO & LiFePO4)
Protection	Over Charge, Input & Output Reverse Polarity, Short Circuit, Over temperature
IP Rating	IP67
Dimensions	130×102×35mm
Weight	250g
Operation Temperature	-25~50℃/-13~122℉
Storage Temperature	-40~85℃/-40~185℉

Applications

The MT515 is ideal for off-grid solar systems, solar street lighting, and solar power stations. Certified by CE, FCC, and UKCA, it comes with a 2-year warranty (minimum order quantity: 100 units).

Support & Services

Our technical support team assists with installation, operation, and troubleshooting. We offer system design consultation, on-site installation assistance, and maintenance services to ensure optimal performance of your solar system.

Frequently Asked Questions

What is the maximum solar panel input voltage?

The MT515 can handle up to 50V DC input voltage and is suitable for both 12V and 24V battery systems.

Is it compatible with LiFePO4 batteries?

Yes, the MT515 works with LiFePO4 batteries as well as lead-acid batteries.

Does it have overcharge protection?

Yes, the MT515 includes overcharge protection to prevent battery damage.

Where is it manufactured?

The MT515 is manufactured in China.

What certifications does it have?

Certified by CE, FCC, and UKCA.

What is the minimum order quantity?

The minimum order quantity is 100 units.
