40A 150V MPPT Solar Charge Controller with Bluetooth and >99% Efficiency for Multiple Battery Types

Name: 40A 150V MPPT Solar Charge Controller with Bluetooth and >99% Efficiency for Multiple Battery Types
Brand: Shenzhen Melin Sunergy Co., Ltd.
SKU: MT508-40A
Price: 90.00 USD
Availability: InStock

Brand Name:	Melin Sunergy
Model Number:	MT508-40A
MOQ:	10
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	5000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

MPPT Controller

Mppt Tracking Efficiency:

>99%

System Current:

40A

Max PV Voltage:

150V

Load Operation Mode:

Pure Light-dependent Control, Light And Time-dependent Control, Manual Mode (default), Debugging Mode, Normally Opened.

Weight:

2.3Kgs

Working Temperature:

-35℃~+65℃

Application:

Solar System Controller

Color:

Black

Packaging Details:

brown box + our carton

Supply Ability:

5000pcs per month

Highlight:

150V Solar Panel Mppt Charge Controller

40A Solar Panel Mppt Charge Controller

40A Solar PV Charge Controller

Product Description

40A 150V Solar PV Controller Solar Panel MPPT Charge Controller With Bluetooth

The MT508 series controller employs industry-leading MPPT technology to achieve maximum efficiency for solar panel systems. It quickly and accurately tracks the maximum power point of the solar array under any condition, utilizing the maximum energy of the solar panel in real time, significantly improving the energy efficiency of the PV system.

Key Features

Built-in Bluetooth: Monitor and control your solar system's performance via mobile app with real-time data
Full Customization: Adjust charging parameters to suit different battery types and optimize performance
Advanced MPPT Technology: >99% efficiency in power conversion
Multi-Battery Compatibility: Works with USE, FLD, GEL, LI, and SLD battery types

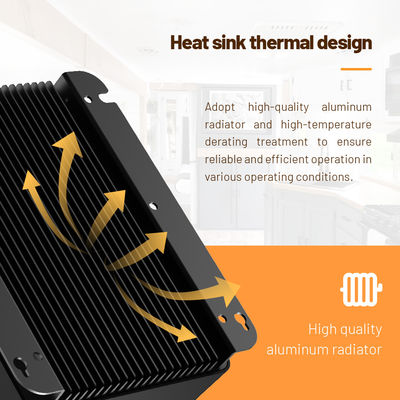

Robust Construction: Designed to withstand harsh environmental conditions

Technical Specifications

Product Name	40A 12V 24V MPPT Solar Charge Controller 150V input
Product Type	MPPT solar controller
Battery Type	USE/FLD/GEL/LI/SLD(Default)
Rated Current	40A
Maximum Input PV Power	520W @ 12V system, 1040W @24V system
System Voltage	12V/24V Auto working
Maximum Input Voltage	150V Voc
MPPT Tracking Efficiency	99.9%
Rated load current	40A
Load operation mode	Pure light-dependent control, light and time-dependent control, manual mode (default), debugging mode, normally opened
Display	LCD
Bluetooth	Included
Historical Data Storage	300 days
Dimensions	260×216×83mm
Weight	2.30g
Warranty	3 Years

Applications

The MT508-40A is suitable for a wide range of solar power applications, offering reliable performance and flexible configuration options:

Residential solar power systems
Commercial solar power systems
Industrial solar power systems
Solar street lighting systems
Solar water pumping systems
Solar traffic management systems

Package Contents

1 MPPT Solar Charge Controller unit
1 User Manual
1 Accessory

Shipping Information

Shipping Method: Standard Shipping by air or by sea
Delivery Time: 3-7 business days
Shipping Time: 5-7 business days by express, 7-15 business days by air

Frequently Asked Questions

Q1: What is Melin Sunergy MT508-40A MPPT Solar Charge Controller?

A1: A device designed to regulate the charging and discharging of solar batteries with maximum power point tracking (MPPT) to optimize energy output.

Q2: What is the maximum charging current?

A2: The maximum charging current is 40A.

Q3: Where is it manufactured?

A3: Manufactured in China to high quality standards.

Q4: What is the minimum order quantity?

A4: Minimum order quantity is 10 units.
