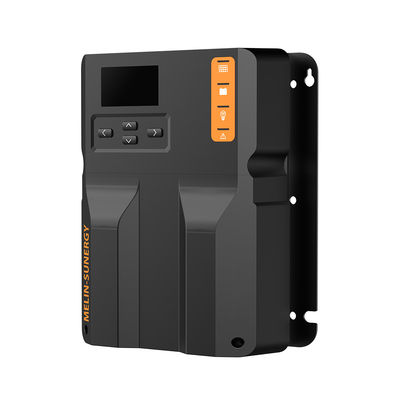

40 Amp MPPT Solar Charge Controller with 150V Solar Panel Input 520W/1040W Power and 99.9% MPPT Efficiency

Name

40 Amp MPPT Solar Charge Controller with 150V Solar Panel Input 520W/1040W Power and 99.9% MPPT Efficiency

Brand Name: Melin Sunergy
Model Number: MT508-40A
MOQ: 10
Payment Terms: T/T,Western Union,L/C
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Max PV Voltage:
150V
Bluetooth:
Built In
Rated Current:
40A
Max Discharge Current:
40A
System Voltage:
12V 24V
Support Full Setting:
Yes
Dimension:
260*216*83mm
Color:
Black
Cooling Mode:
Natural Cooling,
Packaging Details:
brown box + our carton
Supply Ability:
5000pcs per month
Highlight:

Lifepo4 MPPT Solar Charge Controller

,

40 Amp MPPT Solar Charge Controller

,

150V Solar Panel Charge Controller

Product Description
40 Amp Lifepo4 MPPT Solar Charge Controller 150V Solar Panel Charge Controller
Product Description
The MT508 series controller employs industry-leading MPPT technology to achieve maximum efficiency for solar panel systems. It quickly and accurately tracks the maximum power point of solar arrays under any condition, utilizing maximum panel energy in real time to significantly improve PV system efficiency.
Key Features
  • MPPT technology with tracking efficiency up to 99.9%
  • Historical Data: Past 300 Days
  • Compatible with multiple battery types: USE/FLD/GEL/LI/SLD(Default)
  • Supports simultaneous full-power charging and discharging
  • Multiple load operation modes including light-dependent and manual control
  • Common negative grounding type
  • Fully customizable settings
  • Built-in Bluetooth for app monitoring and control
Technical Specifications
Product Name 40A 12V 24V MPPT Solar Charge Controller 150V input
Product Type MPPT solar controller
Battery Type USE/FLD/GEL/LI/SLD(Default)
Rated Current 40A
Maximum Input PV Power 520W @ 12V system, 1040W @24V system
System Voltage 12V/24V Auto working
Maximum Input Voltage 150V Voc
MPPT Tracking Efficiency 99.9%
Rated load current 40A
Display LCD
Bluetooth Included
Historical Data 300 days storage
Size 260×216×83mm
Weight 2.30g
Warranty 3 Years
Applications
  • Home off-grid solar power systems
  • RV and camper solar systems
  • Solar street light systems
  • Solar farm applications like pumping systems
  • Remote area solar installations
Frequently Asked Questions
Q: What is the Max. Solar Panel Input voltage for this MPPT solar controller?
A: MT508-40A supports maximum 150V solar input, suitable for both 12V and 24V systems with maximum input power of 520W (12V) or 1040W (24V).
Q: What is the model number of this solar charge controller?
A: The model number is MT508-40A.
Q: Where is this solar charge controller manufactured?
A: Manufactured in China.
Q: What is the MOQ for this solar MPPT charge controller?
A: Minimum order quantity is 10 pieces.
Q: What is the maximum current rating?
A: Maximum current rating is 40 amps.
Q: Can I monitor the system on my mobile?
A: Yes, the built-in Bluetooth allows monitoring through our dedicated app.
